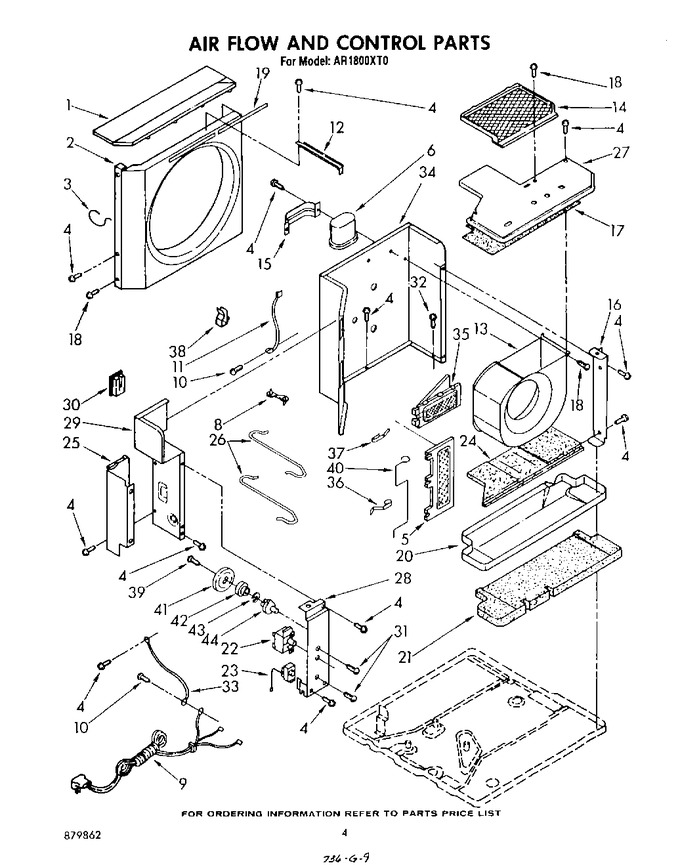

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	997264		Cover, Condenser Shroud		Appelez-nous	-
2	953028		Shroud, Condenser		Appelez-nous	-
3	477442		Clip, Shroud (2)		Appelez-nous	-
4	WP489069		Screw, Sm No.8 X 1/2a   (Replaces: 488480)			Immediately	$ 7.56
4	WP308685		Screw, Sm No.10 X 1/2   (Replaces: 488861)			Immediately	$ 7.08
5	997222		Door, Fresh Air		Appelez-nous	-
6	952739		Capacitor, Running		Appelez-nous	-
8	648791		Clamp, Cable		Appelez-nous	-
9	649070		Cable, Appliance		Appelez-nous	-
10	WPW10141604		Screw, 8-32 X 3/8   (Replaces: 487871)				$ 7.97
11	998177		Wire, Ground		Appelez-nous	-
12	858663		Support, Unit		Appelez-nous	-
13	997220		Housing, Blower Wheel		Appelez-nous	-
14	856506		Guard, Evaporator Impeller		Appelez-nous	-
15	1156412		Bracket, Capacitor		Appelez-nous	-
16	997397		Adapter, Evaporator Header Plate		Appelez-nous	-
17	948234		Insulation, Evaporator Cover		Appelez-nous	-
18	WP488729		Screw, No.8 X 1/2   (Replaces: 487910)			Immediately	$ 7.45
19	WP854334		Rear   (Replaces: 997267)				$ 12.55
19	997266		Seal, Side Condenser		Appelez-nous	-
20	997238		Pan, Condensate		Appelez-nous	-
21	997237		Insulation, Pan		Appelez-nous	-
22	950521		Switch, Rotary		Appelez-nous	-
23	1155799		Control, Temperature		Appelez-nous	-
24	997236		Insulation, Base		Appelez-nous	-
25	952208		Cover, Control Access		Appelez-nous	-
27	997269		Cover, Evaporator		Appelez-nous	-
28	852217		Panel, Control		Appelez-nous	-
29	1155423		Extension, Dividing Wall		Appelez-nous	-
30	1155479		Seal, Tube		Appelez-nous	-
31	488734		Screw, 6-32 X .175		Appelez-nous	-
32	488624		Screw, Sm No.8 X 3/8		Appelez-nous	-
33	997388		Ground Wire		Appelez-nous	-
34	953040		Wall, Dividing		Appelez-nous	-
35	997221		Door, Exhaust		Appelez-nous	-
36	998178		Spring, Door		Appelez-nous	-
37	859369		Spring, Door		Appelez-nous	-
38	947072		Clamp, Cable (2)		Appelez-nous	-
39	WP98165		Screw, 8-16 X 5/8   (Replaces: 489130)				$ 7.71
40	997223		Actuator, Fresh Air		Appelez-nous	-
41	647882		Cam		Appelez-nous	-
42	647879		Bushing		Appelez-nous	-
43	00647881		Washer, Spring   (Replaces: 647881)				$ 366.51
44	852669		Shaft, Control		Appelez-nous	-
