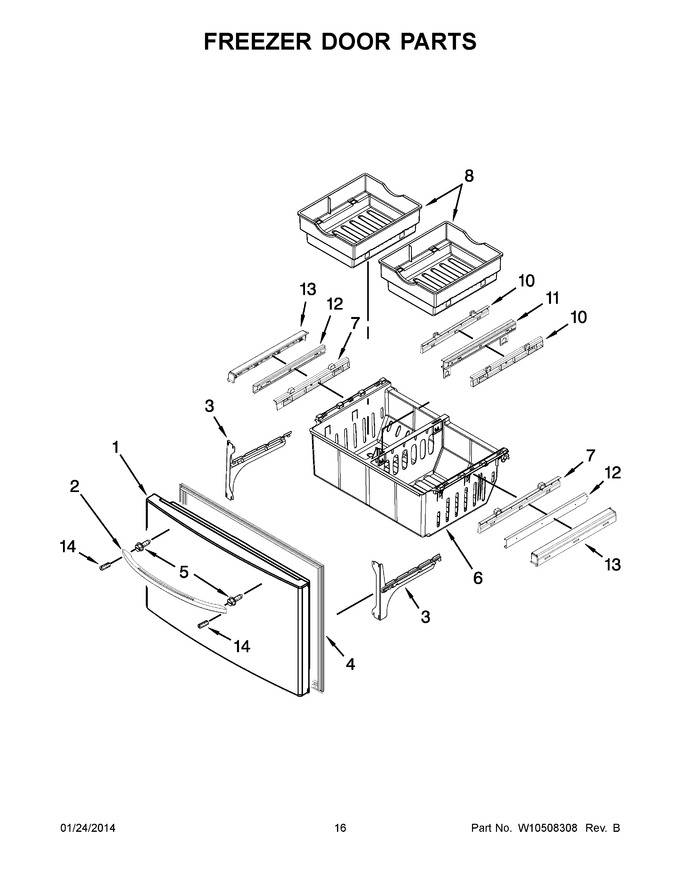

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12977874S | Freezer Door (stainless) |
|
- | |||||
| 2 | WPW10314517K | Handle, Door (stainless) (Replaces: W10314517) |
|
$ 219.03 | |||||
| 3 | WPW10330994 | Bracket, Door Slide (left Hand) (Replaces: W10330994) |
|
Immediately | $ 152.12 | ||||
| 3 | WPW10330995 | Bracket, Door Slide (right Hand) (Replaces: W10330995) |
|
Immediately | $ 306.55 | ||||
| 4 | WPW10714545 | Gasket, Door (grey) (Replaces: W10443322) |
|
$ 291.24 | |||||
| 5 | WPW10661886 | Screw (Replaces: W10303465) |
|
Immediately | $ 11.59 | ||||
| 6 | 12924801SP | Bin, Lower |
|
- | |||||
| 7 | W10166742 | Adapter, Outer Bin (Replaces: 12925403SP) |
|
$ 88.31 | |||||
| 8 | WP12924903 | Bin, Upper Freezer (Replaces: 12924903) |
|
$ 119.07 | |||||
| 10 | 12925404SP | Adapter, Center Bin |
|
$ 40.79 | |||||
| 11 | WPW10235357 | Bracket And Glide Assembly (Replaces: W10235357) |
|
Immediately | $ 297.88 | ||||
| 12 | WPW10235367 | Glide, Upper (Replaces: W10235367) |
|
$ 282.09 | |||||
| 13 | W10826788 | Retainer, Glide (left Hand) (Replaces: 12925501SP) |
|
$ 51.75 | |||||
| 13 | WP67006368 | Retainer, Glide (right Hand) (Replaces: 12925502SP) |
|
$ 173.61 | |||||
| 14 | WP3400203 | Screw, Set (Replaces: W10287054) |
|
Immediately | $ 4.54 |
