SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet Parts

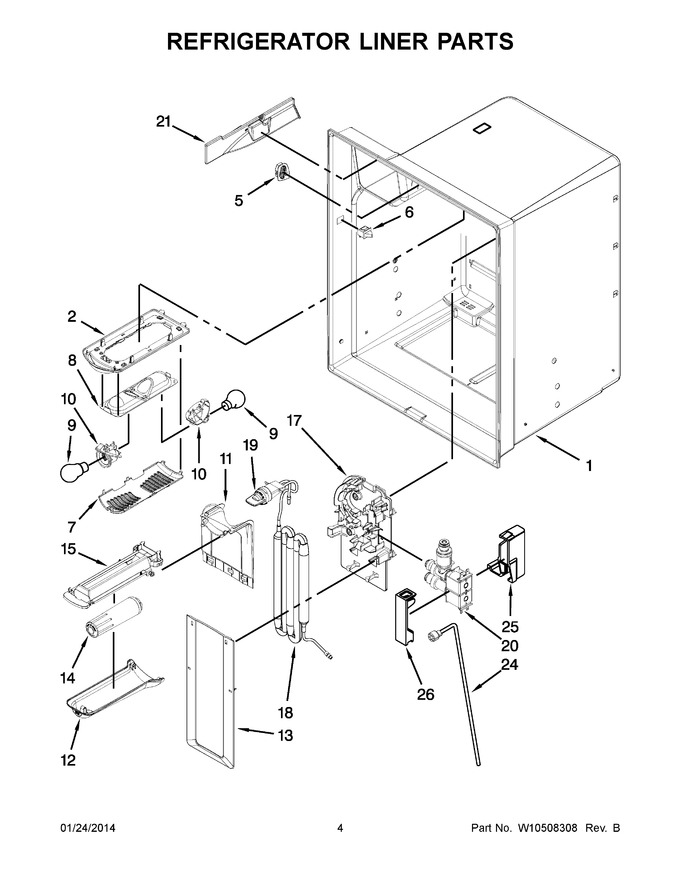

03 - Refrigerator Liner Parts


04 - Shelf Parts


05 - Motor And Ice Container Parts


06 - Icemaker Parts


07 - Freezer Liner Parts


08 - Refrigerator Door Parts


09 - Freezer Door Parts


10 - Dispenser Front Parts


11 - Unit Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	12905803		Module, Light		Appelez-nous	-
5	W10555984		Grille, Air   (Replaces: W10396902)			Immediately	$ 37.88
6	W11396033		Switch, Rocker   (Replaces: 12466103)			Immediately	$ 33.57
7	12905902		Cover, Light		Appelez-nous	-
8	W10443023		Housing, Light			Immediately	$ 105.97
9	W11679940		Bulb, Light   (Replaces: W10311505N)			Immediately	$ 10.17
10	W11447232		Socket, Light   (Replaces: 12570701)			Immediately	$ 12.48
11	12960101		Cover, Upper Water Tank				$ 120.61
12	WP67006331		Cover, Filter   (Replaces: 12960301)			Immediately	$ 106.53
13	67006329		Cover, Lower Water Tank   (Replaces: 12960001)				$ 179.06
14	EDR4RXD1B		Filter, Water   (Replaces: UKF8001)			Immediately	$ 49.99
15	67006325		Bracket, Filter Base   (Replaces: 12955901)			Immediately	$ 94.85
17	W10502642		Bracket, Water Tank And Valve   (Replaces: W10365768)			Immediately	$ 221.91
18	W10502642		Assembly, Water Tank & Head   (Replaces: W10273376)			Immediately	$ 221.91
19	W11395888		Cartridge, Bypass   (Replaces: 12664501SP)			Immediately	$ 45.65
20	WPW10312696		Valve, Water Inlet   (Replaces: W10312696)			Immediately	$ 183.74
21	WPW10309869		Cover, Wiring   (Replaces: W10309869)				$ 103.19
24	WPW10444033		Tube, Water   (Replaces: W10444033)				$ 117.35
25	W10118193		Enclosure, Water Valve Connector				$ 79.92
26	W10118194		Lid, Enclosure		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
