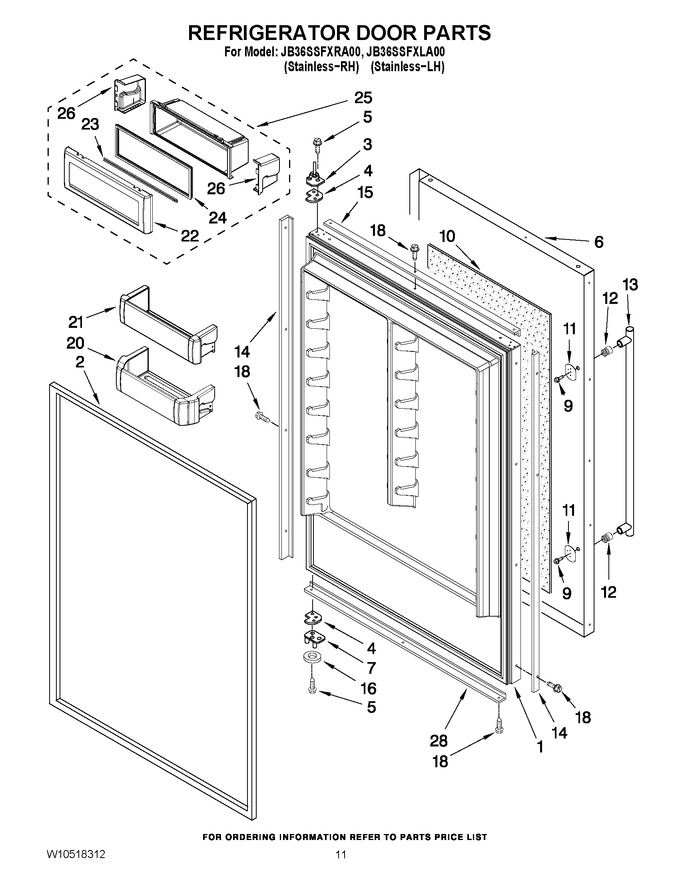

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10192039 | Door, Refrigerator (includes Item 2) |
|
- | |||||
| 2 | 2302709 | Gasket, Door (Replaces: 2300184) |
|
$ 295.47 | |||||
| 3 | 2266912 | Hinge Assembly, Top |
|
$ 44.22 | |||||
| 4 | W11673500 | Spacer-hinge (Replaces: 2316804) |
|
Immediately | $ 117.33 | ||||
| 5 | WP8533980 | Screw, 10-32 X 3/4 (Replaces: 8533980) |
|
Immediately | $ 77.98 | ||||
| 6 | W10491168 | Skin, Door |
|
- | |||||
| 7 | 2266912 | Bottom Hinge Assembly (stainless Lh) |
|
$ 44.22 | |||||
| 7 | 2316805 | Bottom Hinge Assembly (stainless Rh) |
|
$ 193.43 | |||||
| 9 | WP308544 | Screw (Replaces: 308544) |
|
Immediately | $ 7.47 | ||||
| 10 | 2327469 | Filler, Foam |
|
- | |||||
| 11 | W10127710 | Plate, Door-handle |
|
Immediately | $ 23.35 | ||||
| 12 | WPW10168981 | Stud, Mounting (Replaces: W10168981) |
|
$ 15.92 | |||||
| 13 | WPW10298244 | Handle (Replaces: W10298244) |
|
$ 294.33 | |||||
| 14 | 2300026 | Spacer, Door Edge (side) |
|
- | |||||
| 15 | 2300024 | Spacer, Door Edge (top) |
|
- | |||||
| 16 | WP2006346 | Washer (Replaces: 2006346) |
|
Immediately | $ 10.58 | ||||
| 18 | WP8281250 | Screw, 8-15 X 1/2 (Replaces: 8281250) |
|
$ 10.28 | |||||
| 20 | W10323749 | Shelf, Door(gallon) |
|
$ 123.16 | |||||
| 21 | W11590561 | Shelf, Door (4) (Replaces: W10323603) |
|
$ 84.81 | |||||
| 22 | 2309255 | Door, Utility Bin |
|
$ 43.26 | |||||
| 23 | 2309256 | Rail, Lid |
|
- | |||||
| 24 | 2309257 | Gasket, Utility Bin |
|
- | |||||
| 25 | W10323044 | Bin, Utility |
|
$ 119.32 | |||||
| 26 | WPW10323172 | End Cap, Utility Bin (right Side) (Replaces: W10323172) |
|
$ 7.74 | |||||
| 26 | WPW10323173 | End Cap, Utility Bin (left Side) (Replaces: W10323173) |
|
$ 7.74 | |||||
| 28 | 2300023 | Spacer, Door Edge (bottom) |
|
- |
