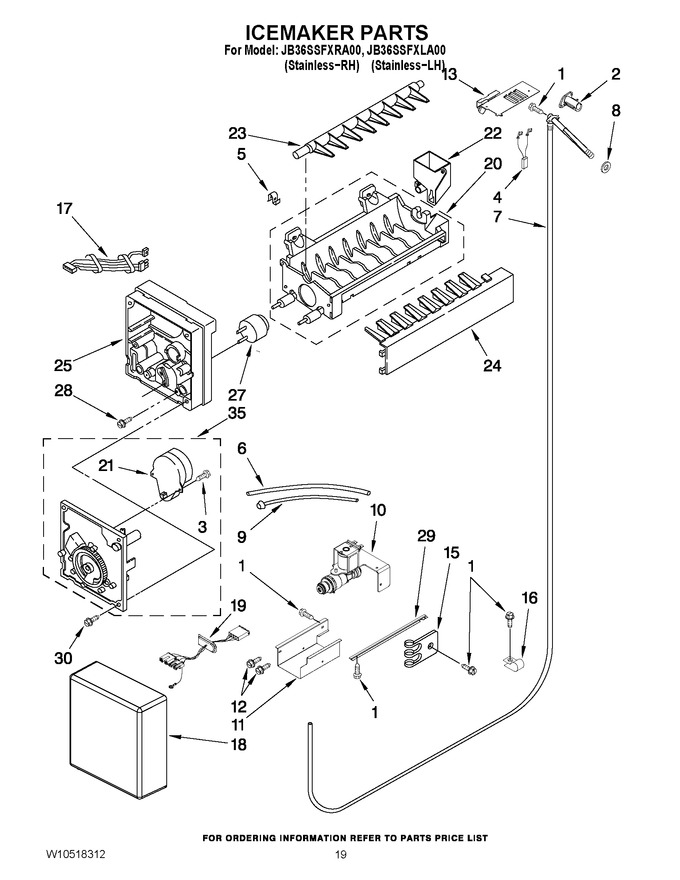

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11624204 | Screw (Replaces: 486194) |
|
$ 13.25 | |||||
| 2 | WP2221240 | Heater, Fill Tube (Replaces: 2221240) |
|
$ 185.92 | |||||
| 3 | 489136 | Screw (2) |
|
$ 9.72 | |||||
| 4 | 2310108 | Jumper, Heater Fill Tube |
|
- | |||||
| 5 | WP628379 | Clip,fuse (Replaces: 628379) |
|
$ 9.99 | |||||
| 6 | W11565275 | Tube, Filter Inlet (Replaces: W10296807) |
|
$ 61.10 | |||||
| 7 | 2317847 | Tube Assembly, Water Inlet |
|
$ 77.72 | |||||
| 8 | WP1106508 | Seal Gasket (Replaces: 1106508) |
|
Immediately | $ 9.39 | ||||
| 9 | W11533506 | Tube, Filter Outlet (Replaces: W10437853) |
|
$ 29.84 | |||||
| 10 | WP2307650 | Valve, Solenoid (Replaces: 2307650) |
|
Immediately | $ 228.29 | ||||
| 11 | W10129653 | Shield, Valve |
|
- | |||||
| 12 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.54 | ||||
| 13 | WP2221231 | Heat Shield (Replaces: 2221231) |
|
$ 80.40 | |||||
| 15 | WP488366 | Clip, Water Tube (Replaces: 2208136) |
|
$ 10.73 | |||||
| 16 | W10331955 | Clamp, Tubing |
|
- | |||||
| 17 | 2310136 | Wire Harness, Icemaker |
|
$ 160.82 | |||||
| 18 | WPW10289690 | Cover (Replaces: W10289690) |
|
$ 7.94 | |||||
| 19 | W10279393 | Wire Assembly (water Valve) |
|
$ 141.36 | |||||
| 20 | WPW10190929 | Mold & Heater (also Order 542638 Silicone Grease) (Replaces: W10122527) |
|
$ 210.17 | |||||
| 21 | N/P | Motor (not Available, Order No.35) |
|
- | |||||
| 22 | W11676540 | Cup, Water Fill (Replaces: W10435665) |
|
$ 20.39 | |||||
| 23 | WP627843 | Ejector (Replaces: 627843) |
|
$ 79.00 | |||||
| 24 | WPW10122563 | Ice Stripper (Replaces: W10122563) |
|
$ 89.48 | |||||
| 25 | WP2195914 | Support (Replaces: 2194712) |
|
$ 98.82 | |||||
| 27 | WP627985 | Thermostat (also Order 542639 Cement Alumilastic) (Replaces: 627985) |
|
$ 103.18 | |||||
| 28 | W10001280 | Screw |
|
- | |||||
| 29 | 2320559 | Support, Valve |
|
$ 79.91 | |||||
| 30 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.43 | ||||
| 35 | 8201515 | Module Assembly (includes 3 & 21) (Replaces: 626691) |
|
Immediately | $ 143.80 | ||||
| 100 | WPW10277450 | Complete Icemaker Assembly (Replaces: W10277450) |
|
Immediately | $ 253.31 | ||||
| NI | 8537055 | Cleaner, Stainless Steel |
|
- |
