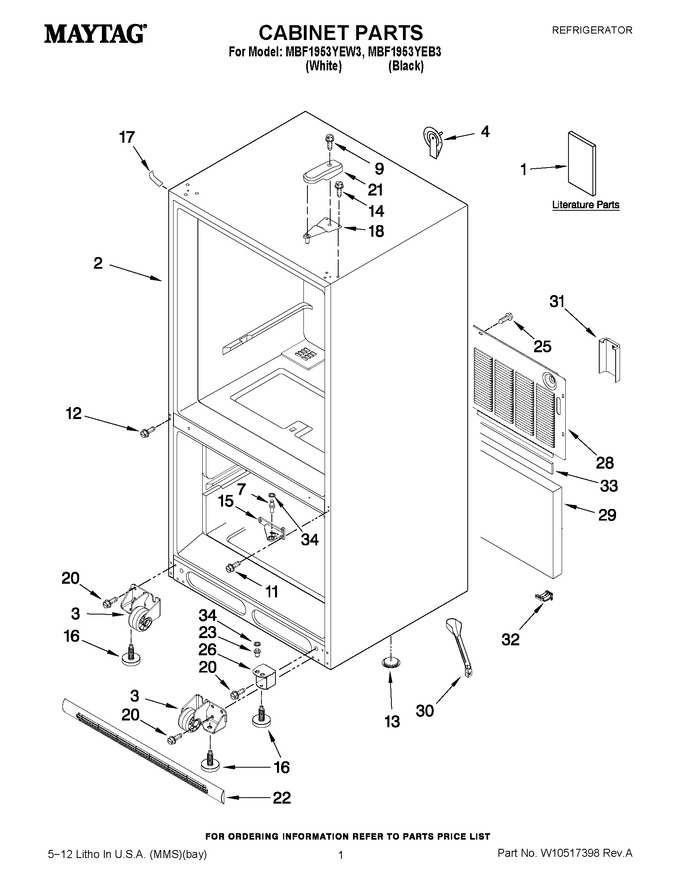

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10476805 | Tech Sheet |
|
- | |||||
| 1 | W10450362 | Energy Guide |
|
- | |||||
| 1 | W10366206SP | Owners Manual |
|
- | |||||
| 2 | N/P | Cabinet (not A Servicable Part) |
|
- | |||||
| 3 | W11820445 | Assembly, Roller (right) (Replaces: W10275849) |
|
Immediately | $ 33.62 | ||||
| 3 | W11820444 | Assembly, Roller (left) (Replaces: W10275850) |
|
Immediately | $ 33.62 | ||||
| 3 | W10157765 | Diverter, Air |
|
$ 83.57 | |||||
| 4 | 12726003 | Cover, Waterline |
|
$ 17.27 | |||||
| 7 | WP67006744 | Pin, Center Hinge (Replaces: 10351005) |
|
$ 7.81 | |||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 6.80 | ||||
| 11 | W11573362 | Screw (3) (Replaces: W10339086) |
|
$ 13.25 | |||||
| 12 | WP489349 | Screw (Replaces: 12990101) |
|
Immediately | $ 7.59 | ||||
| 13 | A3076901 | Plug, Button |
|
$ 5.70 | |||||
| 14 | WP489349 | Screw (3) (Replaces: 12992403) |
|
Immediately | $ 7.59 | ||||
| 15 | W11689473 | Hinge, Center (white) (Replaces: 12607103WD) |
|
$ 62.81 | |||||
| 15 | WP12607104ED | Hinge, Center (black) (Replaces: 12607104ED) |
|
$ 150.62 | |||||
| 16 | WPW10141622 | Foot Brake (2) (Replaces: W10141622) |
|
Immediately | $ 7.42 | ||||
| 17 | 67003485 | Cover, Corner (black) (Replaces: 12587703B) |
|
Immediately | $ 19.93 | ||||
| 17 | 12587703W | Cover, Corner (white) |
|
$ 20.61 | |||||
| 18 | WP12566606ED | Hinge, Top (Replaces: 12566606ED) |
|
Immediately | $ 42.42 | ||||
| 20 | 67006564 | Screw (8) (Replaces: 12991302) |
|
Immediately | $ 7.34 | ||||
| 21 | 67001012 | Cover, Hinge(black) (Replaces: 12477601B) |
|
$ 44.74 | |||||
| 21 | 67001014 | Cover, Hinge (white) (Replaces: 12477601W) |
|
$ 20.11 | |||||
| 22 | WPW10534167 | Grille Assembly (black) (Replaces: W10236650) |
|
$ 84.82 | |||||
| 22 | WPW10534166 | Grille Assembly (white) (Replaces: W10236649) |
|
Immediately | $ 85.37 | ||||
| 23 | 67007018 | Pin, Bottom Hinge (Replaces: 10200802) |
|
Immediately | $ 7.76 | ||||
| 25 | 67006425 | Screw (9) (Replaces: 12990511) |
|
Immediately | $ 6.57 | ||||
| 26 | W10315062 | Hinge, Bottom (white) |
|
$ 38.24 | |||||
| 28 | W10210978 | Cover, Unit |
|
$ 181.60 | |||||
| 29 | 12820505 | Insulation, Sound |
|
$ 71.70 | |||||
| 30 | W10619951 | Tube, Drain (Replaces: W10210987) |
|
Immediately | $ 41.61 | ||||
| 31 | W10208592 | Guard-water Valve |
|
- | |||||
| 32 | W10216614 | Sweep-water Valve |
|
$ 18.51 | |||||
| 33 | B5759655 | Gasket |
|
$ 11.73 | |||||
| 34 | WPM0274057 | Shim (white) (Replaces: M0274057) |
|
Immediately | $ 7.56 |
