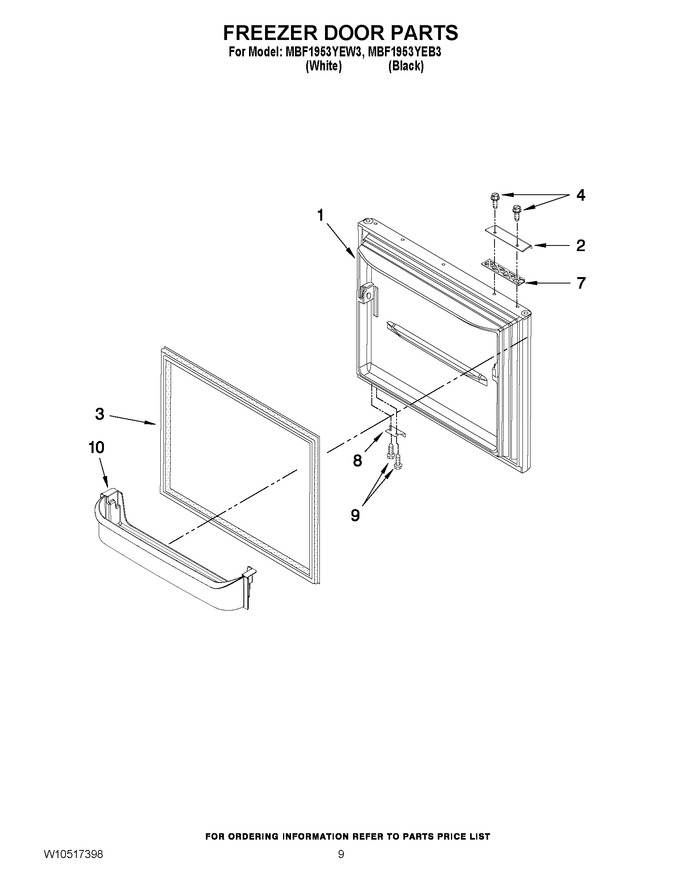

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13024224W | Door, Freezer (white) |
|
- | |||||
| 1 | 13024224B | Door, Freezer (black) |
|
- | |||||
| 2 | W10738327 | Handle, Door (black) (Replaces: 12660007B) |
|
$ 116.08 | |||||
| 2 | W10738329 | Handle, Door (white) (Replaces: 12660007W) |
|
$ 131.16 | |||||
| 3 | WPW10443311 | Gasket, Door (white) (Replaces: W10443311) |
|
Immediately | $ 284.99 | ||||
| 3 | WPW10436247 | Gasket, Door (black) (Replaces: W10436247) |
|
Immediately | $ 329.38 | ||||
| 4 | W11240743 | Screw, Handle (white) (Replaces: 12990901) |
|
Immediately | $ 12.84 | ||||
| 4 | WP12990902 | Screw, Handle (black) (Replaces: 12990902) |
|
$ 14.31 | |||||
| 7 | 12647901W | Spacer, Handle (white) |
|
$ 13.75 | |||||
| 7 | 12647901B | Spacer, Handle (black) |
|
$ 19.38 | |||||
| 8 | 12968202W | Stop, Door (white) (Replaces: 10447111) |
|
$ 62.36 | |||||
| 9 | WP98165 | Screw (Replaces: 12990504) |
|
$ 7.71 | |||||
| 10 | 67003397 | Retainer, Door Shelf (Replaces: 12737501) |
|
$ 98.65 |
