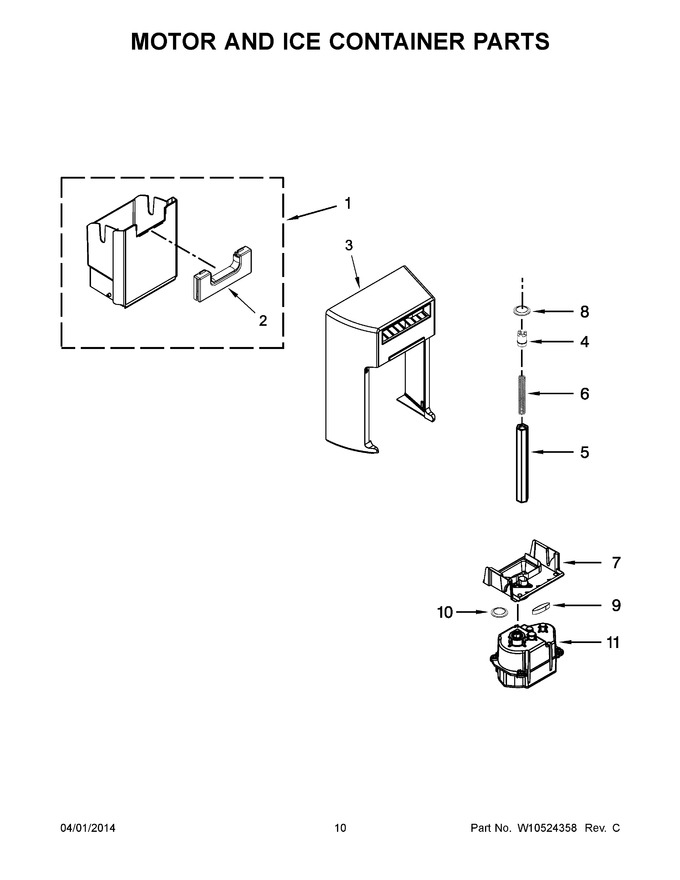

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10450624 | Ice Container (complete) |
|
- | |||||
| 2 | W11652042 | Assembly, Latch (Replaces: W10258552) |
|
Immediately | $ 22.48 | ||||
| 3 | WPW10287594 | Cover, Container (Replaces: W10287594) |
|
$ 206.27 | |||||
| 4 | WP2220458 | Coupling, Bottom (Replaces: 2220458) |
|
Immediately | $ 36.94 | ||||
| 5 | WPW10258544 | Shaft, Drive (Replaces: W10258544) |
|
Immediately | $ 23.87 | ||||
| 6 | W10852956 | Spring, Coupling (Replaces: 2198607) |
|
Immediately | $ 19.26 | ||||
| 7 | WPW10293212 | Assembly, Mounting Plate (Replaces: W10293212) |
|
$ 115.80 | |||||
| 8 | WP2198628 | Seal (Replaces: 2198628) |
|
Immediately | $ 11.31 | ||||
| 9 | WPW10291905 | Gasket (Replaces: W10291905) |
|
$ 24.91 | |||||
| 10 | WP2212370 | Washer (Replaces: 2212370) |
|
$ 22.82 | |||||
| 11 | W11202789 | Dispenser, Motor (Replaces: W10225313) |
|
Immediately | $ 299.99 |
