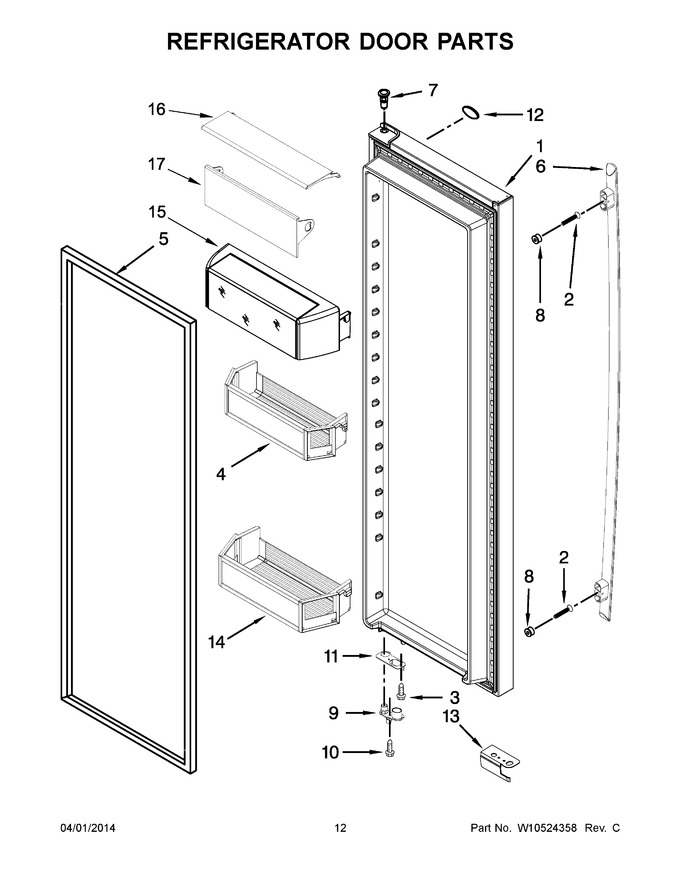

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10497146		Refrigerator Door (includes Item 5) (stainless)		Appelez-nous	-
2	W10141596		Screw				$ 8.30
3	WPW10296816		Screw   (Replaces: W10296816)				$ 7.25
4	W10327565		Door Bin, Shallow				$ 95.91
5	W10355588		Door Gasket, Magnetic (grey)   (Replaces: W10249918)				$ 287.29
6	WPW10183428		Handle (stainless)   (Replaces: W10183428)			Immediately	$ 303.40
7	WP2182181		Thimble, Top   (Replaces: 2200086)				$ 7.34
8	WPW10170540		Stud, Handle   (Replaces: 2326259)			Immediately	$ 8.69
9	WPW10257203		Door Closer, Upper Cam (grey)   (Replaces: W10257203)				$ 11.66
10	WPW10296804		Screw   (Replaces: W10296804)				$ 10.25
11	W11037957		Bracket, Door Stop (black)   (Replaces: W10367462)				$ 72.22
12	WPW10214168		Nameplate (stainless)   (Replaces: W10214168)				$ 77.36
13	W11661847		Cover, Door Stop (grey)   (Replaces: W10257218)			Immediately	$ 28.54
14	W10327564		Door Bin, Gallon				$ 100.25
15	WPW10324760		Door, Compartment Assembly   (Replaces: W10316889)				$ 77.04
16	WPW10316883		Lid, Utility Bin   (Replaces: W10316883)				$ 60.90
17	WPW10316885		Window, Door Compartment   (Replaces: W10316885)				$ 67.88
