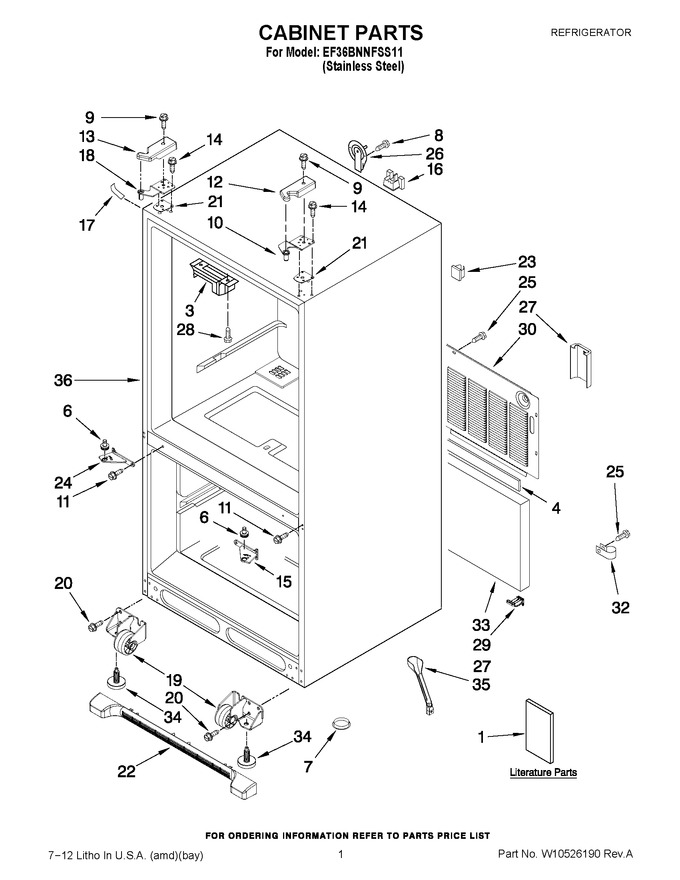

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10480706 | Tech Sheet |
|
- | |||||
| 1 | W10334671 | Owners Manual |
|
- | |||||
| 3 | WP67003405 | Block, Pivot (Replaces: 12698403) |
|
Immediately | $ 7.39 | ||||
| 4 | B5759655 | Gasket |
|
$ 11.73 | |||||
| 6 | WP67006642 | Pin, Center Hinge (Replaces: 10351006) |
|
$ 7.90 | |||||
| 7 | A3076901 | Plug, Button |
|
$ 5.70 | |||||
| 8 | WP98165 | Screw (Replaces: 12990504) |
|
$ 7.71 | |||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 6.80 | ||||
| 10 | 12626910ED | Hinge, Top Right |
|
$ 112.38 | |||||
| 11 | W11573362 | Screw (Replaces: W10339086) |
|
$ 13.25 | |||||
| 12 | 12629801AP | Cover, Right Hinge |
|
$ 13.71 | |||||
| 13 | W10217487 | Cover, Left Hinge |
|
$ 20.23 | |||||
| 14 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 7.59 | ||||
| 15 | 12655102AP | Hinge, Center (rt) |
|
$ 135.78 | |||||
| 16 | 12777701 | Block, Fill Tube |
|
$ 7.17 | |||||
| 17 | WP12587703AP | Cover, Corner (Replaces: 12587703AP) |
|
$ 7.26 | |||||
| 18 | 12626911ED | Hinge, Top Left |
|
$ 80.15 | |||||
| 19 | W11820445 | Roller Assy. Front) (right) (Replaces: W10275849) |
|
Immediately | $ 33.62 | ||||
| 19 | W11820444 | Roller Assy. (front) (left) (Replaces: W10275850) |
|
Immediately | $ 33.62 | ||||
| 20 | 67006564 | Screw (Replaces: 12991302) |
|
Immediately | $ 7.34 | ||||
| 21 | 12579702 | Shim, Hinge |
|
- | |||||
| 22 | WPW10534155 | Grille, Toe (Replaces: W10244558N) |
|
Immediately | $ 107.60 | ||||
| 23 | WPM0104106 | Clip (Replaces: M0104106) |
|
$ 7.35 | |||||
| 24 | 12655102AP | Hinge, Center (lt) |
|
$ 135.78 | |||||
| 25 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.57 | ||||
| 26 | 12726003 | Cover, Water Line |
|
$ 17.27 | |||||
| 27 | W10208593 | Guard, Water Valve (dual) |
|
$ 14.14 | |||||
| 28 | WP7101P126-60 | Screw (Replaces: 12990303) |
|
Immediately | $ 7.52 | ||||
| 29 | 12831101 | Sweep, Dual Tube |
|
$ 11.73 | |||||
| 30 | WPW10211855 | Cover, Unit (Replaces: W10211855) |
|
$ 187.19 | |||||
| 32 | W11456069 | Clamp-tube (Replaces: M0108107) |
|
Immediately | $ 20.16 | ||||
| 33 | 12820505 | Insulation, Sound |
|
$ 71.70 | |||||
| 34 | WPW10141622 | Brake, Foot (Replaces: W10141622) |
|
Immediately | $ 7.42 | ||||
| 35 | W10619951 | Tube, Drain (Replaces: W10210988) |
|
Immediately | $ 41.61 | ||||
| 36 | N/P | Cabinet (not A Servicable Part) |
|
- |
