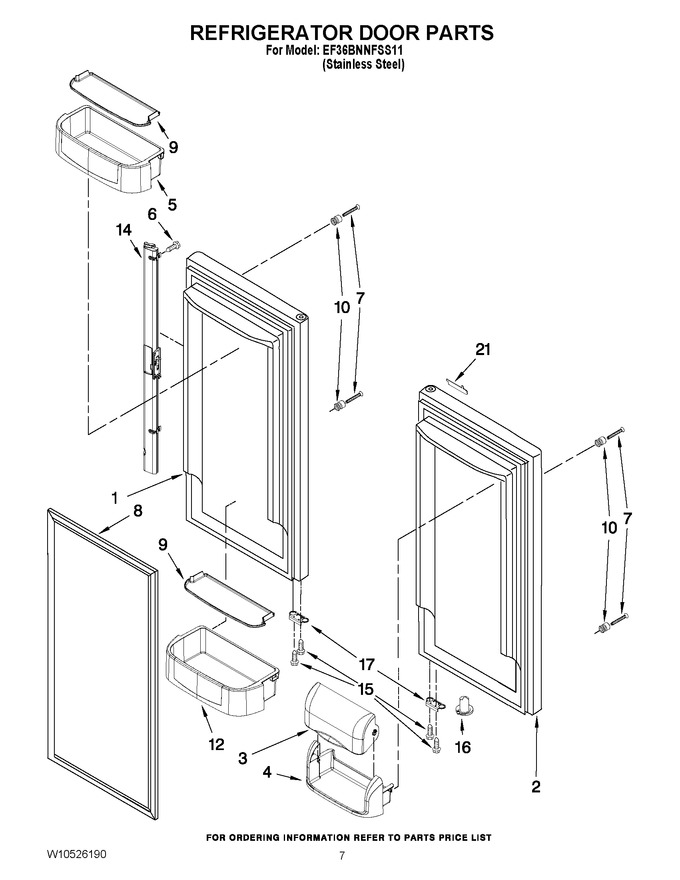

04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Icemaker Parts


08 - Freezer Door Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13107769S		Door, Left		Appelez-nous	-
2	13107768S		Door, Right		Appelez-nous	-
3	WP67003637		Door, Dairy   (Replaces: 12804701SP)			Immediately	$ 74.40
4	WP67001279		Tray, Dairy   (Replaces: 12369502SP)			Immediately	$ 79.21
5	WPW10371193		Bin, Shelf (medium)   (Replaces: W10371193)			Immediately	$ 70.97
6	W11311945		Screw   (Replaces: 12990204)				$ 13.25
7	W10160454		Screw				$ 12.98
8	W10830162		Gasket, Door   (Replaces: W10443225)			Immediately	$ 223.74
9	12567313SP		Gripper (gallon Bucket)		Appelez-nous	-
9	12567311SP		Gripper (medium Bucket)		Appelez-nous	-
10	12945201		Mount, Handle				$ 35.20
12	W10289496		Bin, Shelf (gallon)				$ 35.05
14	WP12722803AP		Mullion, Door   (Replaces: 12732501AP)			Immediately	$ 170.11
15	WP98165		Screw   (Replaces: 12990504)				$ 7.71
16	WP12028505AP		Closure, Door   (Replaces: 12028505AP)			Immediately	$ 55.31
17	W11401472		Stop, Door   (Replaces: 10447114)			Immediately	$ 21.20
21	DE81-07552A		Nameplate   (Replaces: 12989001)				$ 127.78
