SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts

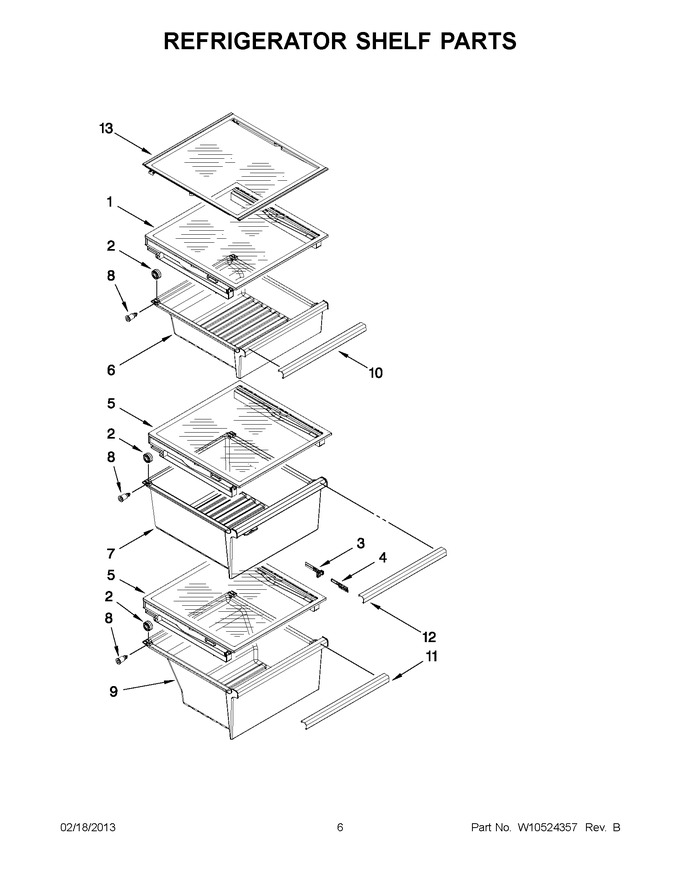

03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Parts


09 - Air Flow Parts


10 - Unit Parts


11 - Icemaker Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10463649		Shelf, Snack Pan   (Replaces: W10463649)				$ 305.47
2	W11164152		Roller   (Replaces: W10278139)			Immediately	$ 14.17
3	W11746089		Slide, Humidity   (Replaces: W10282883)				$ 27.45
4	W11746089		Housing, Humidity   (Replaces: W10282880)				$ 27.45
5	WPW10463651		Cover, Assembly   (Replaces: W10463651)				$ 259.85
6	WPW10256770		Pan, Snack   (Replaces: W10256770)				$ 148.38
7	WPW10278653		Pan, Crisper   (Replaces: W10278653)				$ 156.00
8	WPW10257246		Axle, Roller   (Replaces: W10257246)				$ 32.89
9	WPW10256774		Pan, Meat   (Replaces: W10256774)			Immediately	$ 153.31
10	W10309636		Trim, Handle   (Replaces: W10281628)		Appelez-nous	-
11	W10309635		Trim, Handle		Appelez-nous	-
12	W10309636		Trim , Handle		Appelez-nous	-
13	WPW10463259		Shelf Assembly   (Replaces: W10463259)				$ 220.78

    View Diagram in Separate Window       Print Part List
