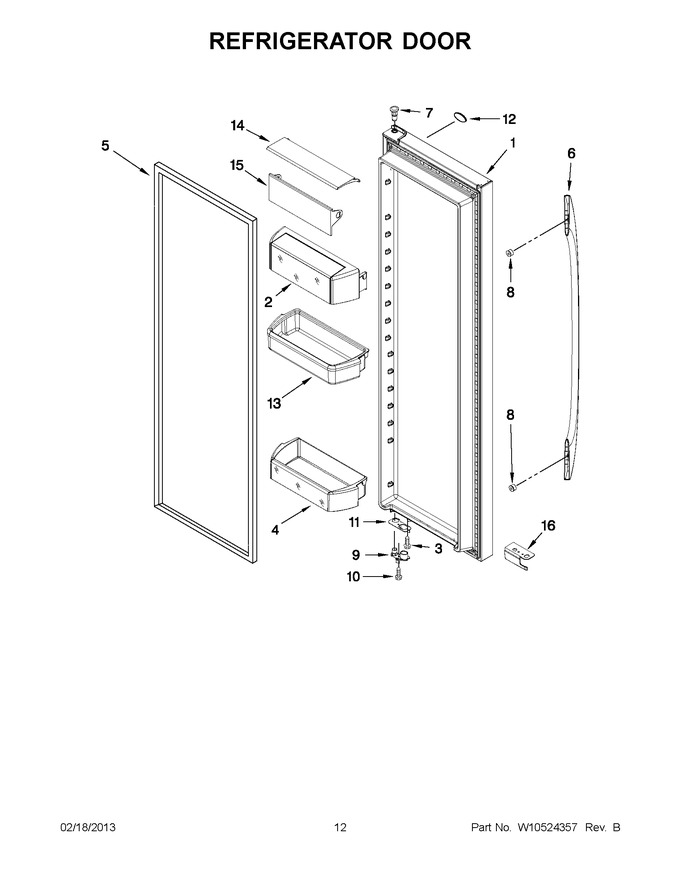

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10397050 | Refrigerator Door (includes Item 5) |
|
- | |||||
| 1 | W10373134 | Refrigerator Door (includes Item 5) |
|
- | |||||
| 1 | W10373135 | Refrigerator Door (includes Item 5) |
|
- | |||||
| 2 | WPW10324760 | Door, Compartment Assembly (Replaces: W10316889) |
|
$ 77.04 | |||||
| 3 | WPW10296816 | Screw (Replaces: W10296816) |
|
$ 7.25 | |||||
| 4 | WPW10527272 | Door Bin, Gallon (Replaces: W10527272) |
|
$ 75.42 | |||||
| 5 | WPW10247884 | Door Gasket, Magnetic (beige) (Replaces: W10247884) |
|
$ 290.67 | |||||
| 5 | WPW10249912 | Door Gasket, Magnetic (black) (Replaces: W10249912) |
|
$ 296.26 | |||||
| 5 | W10355582 | Door Gasket, Magnetic (grey) (Replaces: W10249916) |
|
Immediately | $ 307.13 | ||||
| 6 | WPW10439228 | Handle (white) (Replaces: W10439228) |
|
$ 224.69 | |||||
| 6 | WPW10439229 | Handle (black) (Replaces: W10439229) |
|
$ 161.51 | |||||
| 6 | WPW10439132 | Handle (grey) (Replaces: W10439132) |
|
$ 260.44 | |||||
| 7 | WP2182181 | Thimble, Top (Replaces: 2200086) |
|
$ 7.34 | |||||
| 8 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 11.59 | ||||
| 9 | WPW10257203 | Door Closer, Upper Cam (grey) (Replaces: W10257203) |
|
$ 11.66 | |||||
| 9 | WPW10257201 | Door Closer, Upper Cam (black) (Replaces: W10257201) |
|
$ 11.64 | |||||
| 9 | WPW10248011 | Door Closer, Upper Cam (white) (Replaces: W10248011) |
|
$ 11.64 | |||||
| 10 | WPW10296804 | Screw (Replaces: W10296804) |
|
$ 10.25 | |||||
| 11 | W11037957 | Black (Replaces: W10367462) |
|
$ 72.22 | |||||
| 12 | WPW10170766 | Badge, Standard Maytag (Replaces: W10170766) |
|
Immediately | $ 63.45 | ||||
| 13 | WPW10308388 | Door Bin, Shallow (Replaces: W10308388) |
|
$ 70.17 | |||||
| 14 | WPW10316883 | Lid, Utility Bin (Replaces: W10316883) |
|
$ 60.90 | |||||
| 15 | WPW10316885 | Window, Door Compartment (Replaces: W10316885) |
|
$ 67.88 | |||||
| 16 | W11661847 | Cover, Door Stop (grey) (Replaces: W10257218) |
|
Immediately | $ 28.54 | ||||
| 16 | W10789144 | Cover, Door Stop (white) (Replaces: W10248013) |
|
$ 17.44 | |||||
| 16 | W10257216 | Cover, Door Stop (black) |
|
- |
