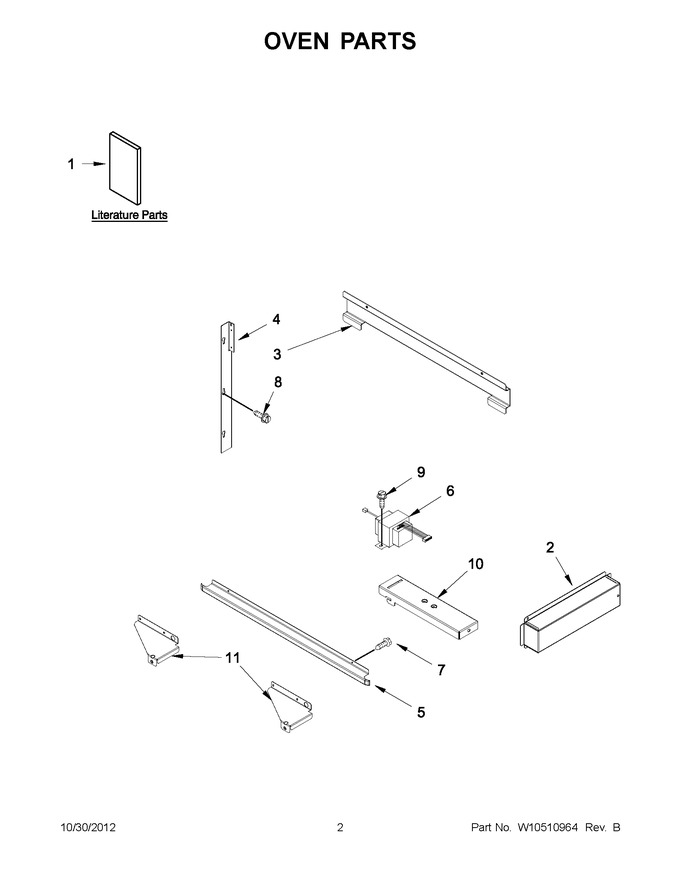

01 - Oven Parts
02 - Control Panel Parts
03 - Door, Microwave
04 - Cabinet And Stirrer Parts
05 - Internal Microwave Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10351317 | Installation Instructions |
|
- | |||||
| 1 | W10220961 | Tech Sheet (french) |
|
- | |||||
| 1 | W10220960 | Tech Sheet |
|
- | |||||
| 1 | W10354195 | Use And Care Guide (microwave Oven) |
|
- | |||||
| 1 | W10075750 | Instructions, Installation (english/french) |
|
- | |||||
| 2 | W10239155 | Box, Conduit |
|
$ 92.88 | |||||
| 3 | W11673269 | Support, Microwave Module (Replaces: W10420960) |
|
Immediately | $ 62.93 | ||||
| 4 | W10416256 | Rail, Mounting Side (left Hand) |
|
$ 46.45 | |||||
| 4 | W10416255 | Rail, Mounting Side (right Hand) |
|
$ 42.65 | |||||
| 5 | W10420959 | Trim, Bottom |
|
$ 193.73 | |||||
| 6 | W10354050 | Transformer,microwave User Interface |
|
$ 347.20 | |||||
| 7 | WP3400832 | Screw 8-18 X .375 Mtr Black (Replaces: 3400832) |
|
Immediately | $ 7.36 | ||||
| 8 | WPY706189 | Screw (Replaces: 7101P653-60) |
|
Immediately | $ 6.80 | ||||
| 9 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 7.43 | ||||
| 10 | W10323725 | Plate, Mounting Transformer |
|
- | |||||
| 11 | W10239157 | Bracket, Support (front Right Hand) |
|
$ 18.66 | |||||
| 11 | W10239156 | Bracket, Support (front Left Hand) |
|
$ 19.12 |
