Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11512490 Plate, Crisp   (Replaces: W10330573) In-Stock Immediately $ 114.82

2 W10660052 Steamer   (Replaces: W10120484) In-Stock Immediately $ 27.02

3 4452220 Rack, Convection Microwave Special Order $ 153.33

4 W11512489 Plate, Baking   (Replaces: W10120486) Special Order $ 87.80

5 W11175831 Rack, Convection   (Replaces: W10120483) Special Order $ 40.39

6 W11373838 Tray, Cook   (Replaces: 8205676) In-Stock Immediately $ 79.52

7 W11110134 Ring   (Replaces: W10486179) In-Stock Immediately $ 66.60

8 WPW10776938 Drive, Turn Table   (Replaces: 8205677) In-Stock Immediately $ 26.52

9 W10851464 Handle, Pan   (Replaces: W10120481) Special Order $ 23.46

10 WPW10387651 Element, Grill   (Replaces: W10387651) Special Order $ 322.96

11 W10915651 Cover, Plates   (Replaces: W10120230) In-Stock Immediately $ 80.01

12 W11724411 Support, Element   (Replaces: W10288008) In-Stock Immediately $ 54.42


    View Diagram in Separate Window     Print Icon   Print Part List

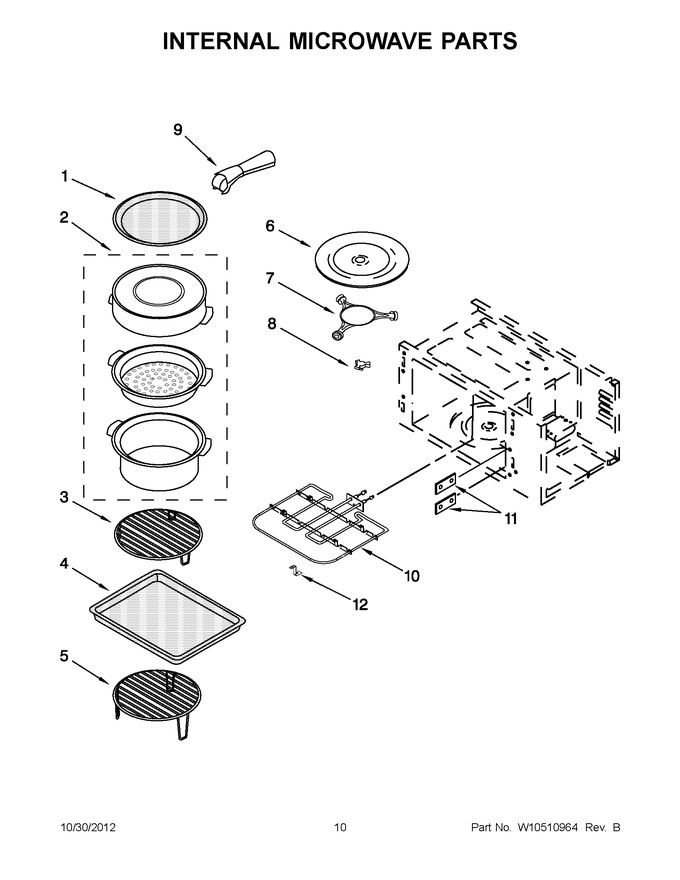

Diagram for KBHS179BSS00
