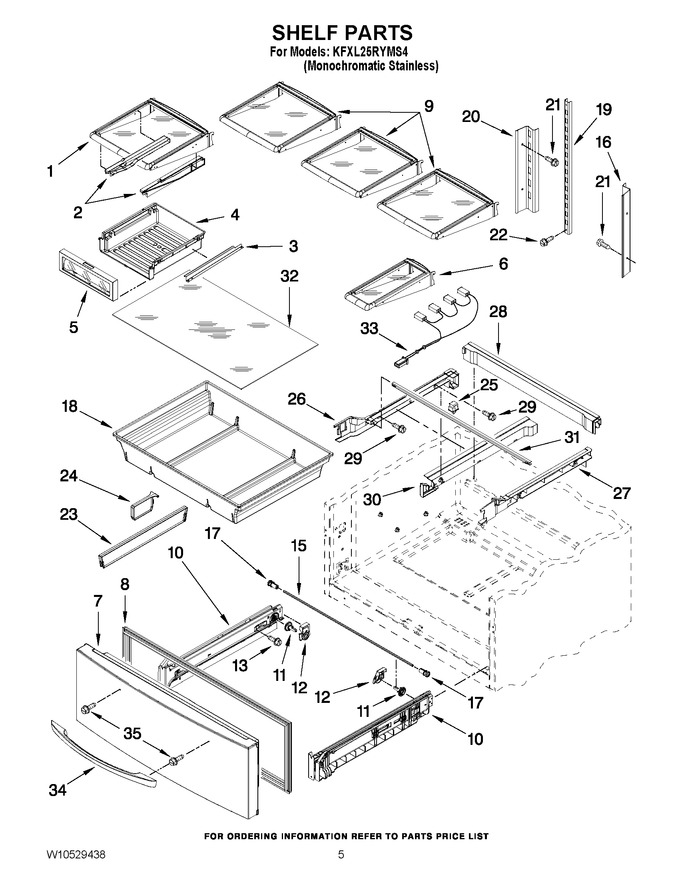

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11243759 | Shelf-stationary, With Pan (Replaces: W10345310) |
|
Immediately | $ 227.06 | ||||
| 2 | W10346888 | Runner-roller-rh |
|
- | |||||
| 2 | W10346889 | Runner-roller-lh |
|
- | |||||
| 3 | W11226546 | Runner, Channel (Replaces: W10385043) |
|
$ 112.94 | |||||
| 4 | W10366640 | Pan-deli |
|
$ 144.59 | |||||
| 5 | WPW10396909 | Front-deli Pan (Replaces: W10396909) |
|
$ 99.42 | |||||
| 6 | W11241612 | Shelf-stat-mini (Replaces: W10329926) |
|
$ 221.11 | |||||
| 7 | 13107112SQ | Pantry Door (stainless) (Replaces: 13107112S) |
|
$ 914.72 | |||||
| 8 | WPW10443326 | Gasket-pantry (apollo Grey) (Replaces: W10443326) |
|
$ 312.90 | |||||
| 9 | W11213107 | Shelf-stationary (Replaces: W10329925N) |
|
$ 232.51 | |||||
| 10 | W11093713 | Adapter-pantry (left) (Replaces: W10495308) |
|
$ 127.30 | |||||
| 10 | W11093714 | Adapter-pantry (right) (Replaces: W10495309) |
|
$ 124.49 | |||||
| 11 | 12002497 | Gear Spur (left) (Replaces: W10474714) |
|
Immediately | $ 20.26 | ||||
| 11 | 12002497 | Gear Spur (right) (Replaces: W10474712) |
|
Immediately | $ 20.26 | ||||
| 12 | W10284709 | Cover-gear (left) |
|
$ 66.50 | |||||
| 12 | W10294414 | Cover-gear (right) |
|
$ 75.13 | |||||
| 13 | WPW10272364 | Screw (Replaces: W10272364) |
|
Immediately | $ 10.22 | ||||
| 15 | W10298176 | Shaft-rack |
|
- | |||||
| 16 | W10251965 | Ladder, Side Rh |
|
$ 27.97 | |||||
| 17 | WPW10277361 | Collar-gear (Replaces: W10277361) |
|
$ 10.88 | |||||
| 18 | WPW10530656 | Pan-pantry-po (Replaces: W10268846) |
|
$ 216.79 | |||||
| 19 | W10273464 | Ladder, Center |
|
Immediately | $ 27.17 | ||||
| 20 | W10251968 | Ladder, Side |
|
$ 24.64 | |||||
| 21 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 6.57 | ||||
| 22 | W10709795 | Screw (Replaces: 12990515) |
|
$ 12.41 | |||||
| 23 | W10839397 | Divider-pantry-lrg (Replaces: W10328402) |
|
$ 46.67 | |||||
| 24 | W10328403A | Divider-pantry-sm (Replaces: W10328403) |
|
$ 35.96 | |||||
| 25 | W11291138 | Switch-rocker (Replaces: 12466104) |
|
Immediately | $ 33.00 | ||||
| 26 | W10311723 | Rail-lh Pantry |
|
$ 127.83 | |||||
| 27 | W11715934 | Rail-rh Pantry (Replaces: W10311726) |
|
$ 41.24 | |||||
| 28 | W10331298 | Rail-rear Pantry |
|
- | |||||
| 29 | WP98165 | Screw (Replaces: 12990521) |
|
$ 7.71 | |||||
| 30 | W10311725 | Cover-lh Pantry |
|
$ 16.42 | |||||
| 31 | 12227305 | Brace-pantry |
|
- | |||||
| 32 | WPW10296571 | Glass-pantry Shelf (Replaces: W10346616) |
|
$ 222.39 | |||||
| 33 | W10335721 | Harness-rc-led |
|
- | |||||
| 34 | WPW10314522K | Handle-snack Pan (stainless) (Replaces: W10314522) |
|
$ 252.63 | |||||
| 35 | WPW10661886 | Screw, Handle (Replaces: W10303465) |
|
Immediately | $ 11.59 |
