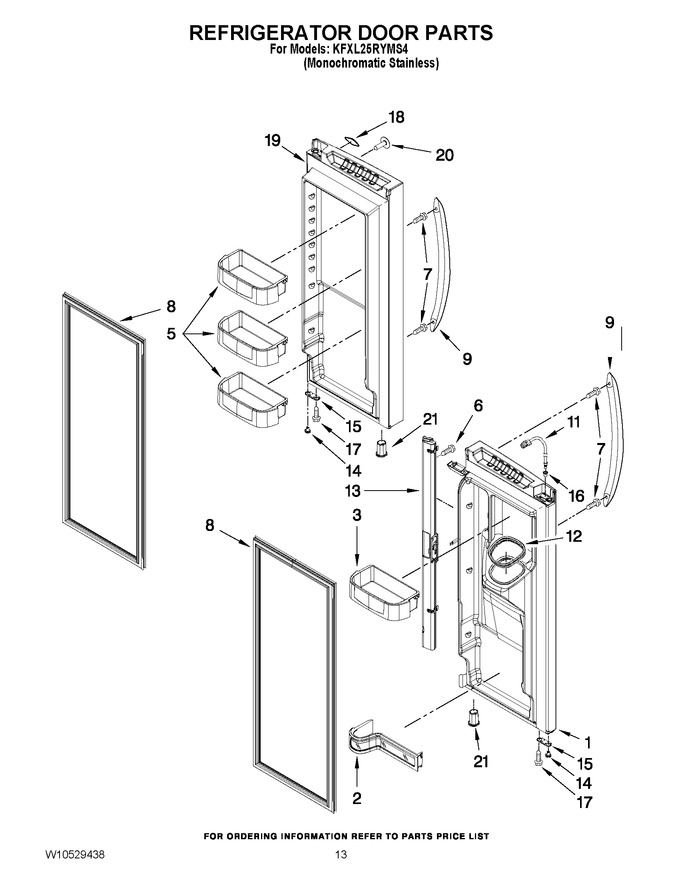

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13107324SQ | Door, Left (mono Stainless) (Replaces: 13107324S) |
|
$ 1,288.06 | |||||
| 2 | W10355269 | Bucket-mini-lh |
|
$ 78.54 | |||||
| 3 | W11379148 | Bucket-lh (2) (Replaces: W10355270) |
|
Immediately | $ 164.59 | ||||
| 5 | W11706640 | Bucket-rh (3) (Replaces: W10355264) |
|
$ 75.11 | |||||
| 6 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 7.30 | ||||
| 7 | WPW10661886 | Screw, Handle (Replaces: W10303465) |
|
Immediately | $ 12.88 | ||||
| 8 | W10830274 | Gasket, Door (apollo Grey) (Replaces: W10443273) |
|
Immediately | $ 335.87 | ||||
| 9 | WPW10314517K | Door Handle (stainless) (Replaces: W10314517) |
|
$ 243.37 | |||||
| 11 | WPW10511930 | Waterline, Door (Replaces: W10511930) |
|
$ 121.94 | |||||
| 12 | WPW10287601 | Seal, Ice Chute (Replaces: W10287601) |
|
Immediately | $ 32.76 | ||||
| 13 | WPW10311757 | Mullion, Door (apollo Grey) (Replaces: W10311757) |
|
$ 141.14 | |||||
| 14 | WP12028505AP | Closure, Door (apollo Grey) (Replaces: 12028505AP) |
|
Immediately | $ 61.46 | ||||
| 15 | W11703060 | Stop, Door (apollo Grey) (Replaces: 12968202AP) |
|
$ 15.46 | |||||
| 16 | 12996601 | Clip, Bushing Wire (left Door) |
|
$ 10.05 | |||||
| 17 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.57 | |||||
| 18 | WPW10243391 | Nameplate (apollo Grey) (Replaces: W10243391) |
|
$ 58.31 | |||||
| 19 | 13107319SQ | Door, Right (mono Stainless) (Replaces: 13107319S) |
|
$ 1,094.27 | |||||
| 20 | WP67001130 | Plug-button (white) (Replaces: 12246607) |
|
Immediately | $ 8.21 | ||||
| 21 | 12028601AP | Bushing, Door (apollo Grey) |
|
$ 5.71 |
