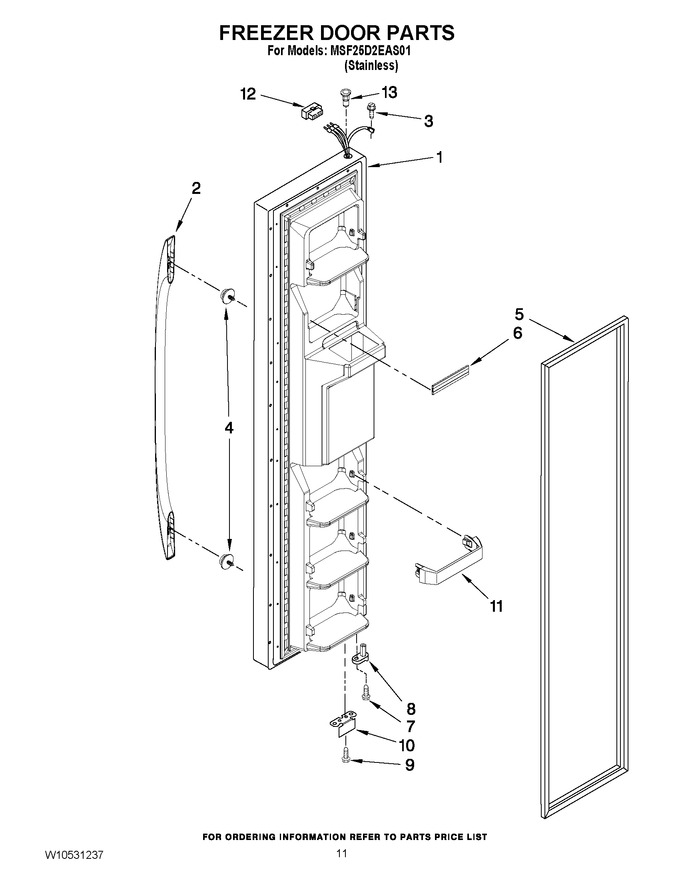

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10505272		Freezer Door (includes Item No.5 And Dispenser Front Parts) (stainless Steel)		Appelez-nous	-
2	WPW10328861		Handle   (Replaces: W10328861)				$ 170.34
3	WP489128		Screw   (Replaces: 488500)				$ 10.26
4	WPW10288153		Stud, Handle   (Replaces: W10288153)			Immediately	$ 8.69
5	2159082		Door Gasket, Magnetic (black)   (Replaces: 2309533)				$ 299.24
6	WPW10307490		Trim, Door Shelf   (Replaces: W10307490)			Immediately	$ 21.84
7	WP3400012		Screw   (Replaces: 3400012)				$ 7.43
8	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.48
9	WP489483		Screw   (Replaces: 489420)				$ 10.27
10	W10185567		Bracket, Door Stop (black)		Appelez-nous	-
11	WP2309718		Trim, Door Shelf   (Replaces: 2309718)				$ 55.34
12	WP2154473		Connector   (Replaces: 2154473)				$ 22.35
13	WP2182181		Thimble-top   (Replaces: 2182181)				$ 7.34
