SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts

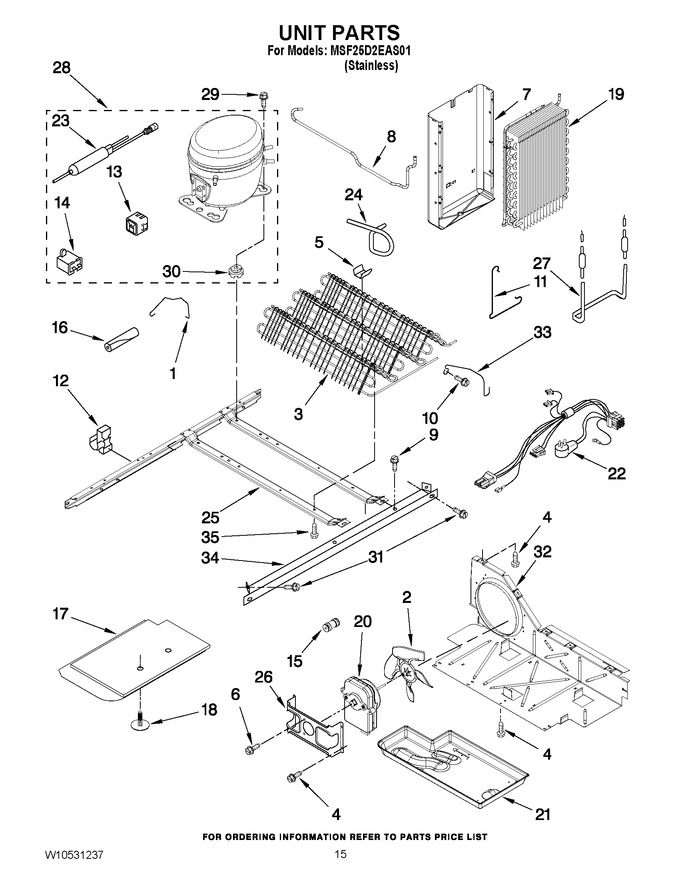

09 - Unit Parts


10 - Icemaker Parts


11 - Control Parts


12 - Air Flow Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11661170		Strap   (Replaces: W10174384)			Immediately	$ 10.68
2	W11458267		Fan, Blade   (Replaces: 2225834)			Immediately	$ 22.67
3	2324712		Condenser Assembly   (Replaces: W10196260)				$ 291.11
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.54
5	W10683556		Clip, Condenser   (Replaces: 2311725)				$ 17.44
6	WP8533993		Screw   (Replaces: 8533993)				$ 10.09
7	W10194475		Heat Shield And Drain Pan		Appelez-nous	-
8	W10210786		Tube Suction		Appelez-nous	-
9	WP489427		Screw   (Replaces: 489427)				$ 7.06
10	WP489478		Screw   (Replaces: 489478)				$ 7.36
11	2161324		Clip, Defrost Heater		Appelez-nous	-
12	2208280		Clip, Wire & Tube		Appelez-nous	-
13	WPW10189190		Start-device, Combination (start Relay And Overload) (service)   (Replaces: W10197427)			Immediately	$ 118.16
13	WPW10189190		Start-device, Combination (start Relay And Overload) (production)   (Replaces: W10189190)			Immediately	$ 118.16
14	WPW10662129		Capacitor (service)   (Replaces: 2264017)			Immediately	$ 52.97
15	WPW10334458		Connector, Water Tube   (Replaces: W10334458)				$ 20.40
16	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 19.19
17	W10466698		Unit Cover, Bottom				$ 103.75
18	489396		Clip				$ 10.13
19	WP2188823		Evaporator   (Replaces: 2188823)			Immediately	$ 343.34
20	W10124096		Motor, Fan   (Replaces: W10204250)			Immediately	$ 146.83
21	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 142.34
22	W10281341		Harness, Unit				$ 240.86
23	WPW10143759		Drier (service)   (Replaces: W10143759)			Immediately	$ 27.70
23	WPW10143759		Drier (production)   (Replaces: W10177049)			Immediately	$ 27.70
24	W10274306		Process Tube   (Replaces: W10171238)				$ 12.96
25	W10196321		Frame, Unit Mounting		Appelez-nous	-
26	WP2181929		Bracket, Fan Motor   (Replaces: 2181929)				$ 11.64
27	WP2323198		Heater, Defrost   (Replaces: 2188175)			Immediately	$ 81.63
28	W10233961		Compressor (includes Items 13, 14, 23, & 30)   (Replaces: W10183575)				$ 579.06
29	W11661574		Screw   (Replaces: 489473)				$ 12.86
30	876811		Grommet (4) (service)   (Replaces: 1100826)				$ 7.01
30	W11661108		Grommet (4) (production)   (Replaces: 2183042)				$ 13.69
31	489340		Screw		Appelez-nous	-
32	W10332806		Air Baffle				$ 102.82
33	2260517		Guard, Fan		Appelez-nous	-
34	W10196313		Unit Mounting Rail		Appelez-nous	-
35	W11544659		Screw   (Replaces: 8281232)				$ 12.92
NI	978029		Valve, Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 123.53
NI	876764		Valve, Access (3/16``)			Immediately	$ 86.33
NI	N/P		Refrigerant Charge (5.0 Oz. (r-134))		Appelez-nous	-
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 99.46
NI	978026		Valve, Access (5/16``)			Immediately	$ 121.04
NI	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 16.79
NI	978028		Valve, Access (1/2``)		Appelez-nous	-
