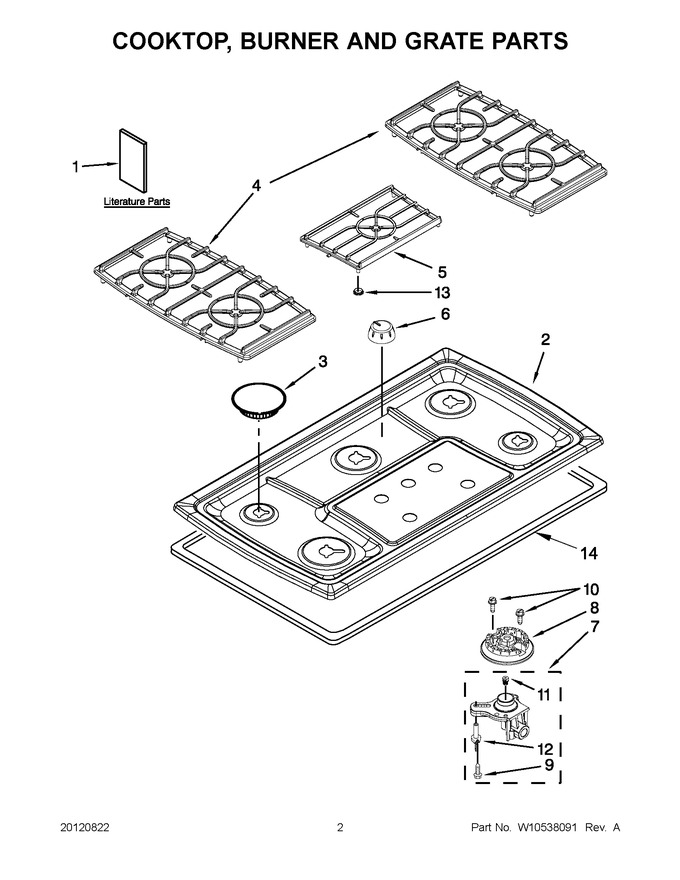

01 - Cooktop, Burner And Grate Parts
02 - Burner Box, Gas Valves And Switches
03 - Parts Not Illustrated
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8304571 | Instructions, Undercounter |
|
- | |||||
| 1 | W10169072 | Use & Care Guide |
|
- | |||||
| 1 | W10169218 | Instructions, Lp Conversion |
|
- | |||||
| 1 | W10526074 | Installation Instructions |
|
- | |||||
| 2 | W10140186 | Cooktop |
|
- | |||||
| 3 | WP8286156CB | Cap, Burner (coal Black (left Front)) (Replaces: 8286156CB) |
|
$ 112.29 | |||||
| 3 | WP8286154CB | Cap, Burner (coal Black (center)) (Replaces: 8286154CB) |
|
$ 81.84 | |||||
| 3 | WP8286155CB | Cap, Burner (coal Black (right Rear)) (Replaces: 8286155CB) |
|
$ 109.94 | |||||
| 3 | WP8286153CB | Cap, Burner (coal Black (left Rear)) (Replaces: 8286153CB) |
|
$ 65.06 | |||||
| 4 | 8285876CB | Grate, Burner |
|
$ 99.26 | |||||
| 5 | 8285878CB | Grate, Center |
|
$ 90.67 | |||||
| 6 | WPW10484149 | Knob, Control (Replaces: W10484149) |
|
$ 44.81 | |||||
| 7 | WPW10128450 | Assy, Orifice Holder (center) (Replaces: W10128450) |
|
$ 111.92 | |||||
| 7 | WPW10128451 | Assy, Orifice Holder (right Rear) (Replaces: W10128451) |
|
$ 104.79 | |||||
| 7 | WPW10128445 | Assy, Orifice Holder (left Front) (Replaces: W10128445) |
|
$ 107.19 | |||||
| 7 | WPW10128448 | Assy, Orifice Holder (left Rear) (Replaces: W10128448) |
|
Immediately | $ 105.57 | ||||
| 8 | WPW10406243 | Burner Head, Auxiliary (6k) (left Rear) (Replaces: 8286181) |
|
Immediately | $ 35.17 | ||||
| 8 | WPW10406878 | Burner Head, Ultra Rapid (17k) (left Front) (Replaces: 8286183) |
|
$ 96.73 | |||||
| 8 | WPW10406797 | Burner Head, Rapid (12k) (right Rear) (Replaces: 8286182) |
|
$ 83.62 | |||||
| 8 | WPW10406283 | Burner Head, Semi (center) (Replaces: 8286184) |
|
$ 70.22 | |||||
| 9 | WP8273062 | Screw (Replaces: 8273062) |
|
Immediately | $ 7.12 | ||||
| 10 | WP3368921 | Screw (Replaces: 3368921) |
|
Immediately | $ 7.70 | ||||
| 11 | WP3192523 | Orifice (center) (Replaces: 3192523) |
|
$ 84.20 | |||||
| 11 | 8286474 | Orifice (left Front) |
|
$ 85.08 | |||||
| 11 | 8286551 | Orifice (right Rear) |
|
$ 94.46 | |||||
| 11 | WP3192529 | Orifice (left Rear) (Replaces: 3192529) |
|
$ 90.67 | |||||
| 12 | WP9782116 | Electrode (Replaces: 9782116) |
|
Immediately | $ 49.45 | ||||
| 13 | WP8286452 | Grommet, Grate (Replaces: 8286452) |
|
$ 8.58 | |||||
| 14 | 9760279 | Seal, Foam (stainless Models Only) |
|
$ 51.94 |
