SELECT A DIAGRAM

01 - Cooktop, Burner And Grate Parts

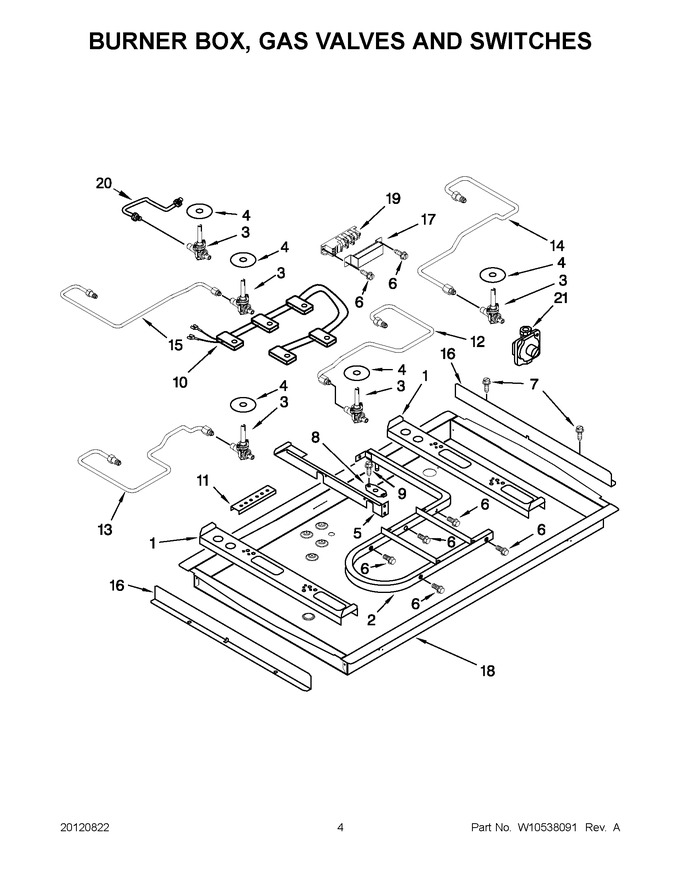

02 - Burner Box, Gas Valves And Switches


03 - Parts Not Illustrated


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8285796		Rail, Burner		Appelez-nous	-
2	8285751		Pipe, Manifold				$ 321.35
3	8286561		Valve, Gas Burner (left Front)				$ 291.38
3	WP4456817		Valve, Gas Burner (center)   (Replaces: 4456817)				$ 300.70
3	8286559		Valve, Gas Burner (left Rear)				$ 123.31
3	8286560		Valve, Gas Burner (right Rear)				$ 123.39
4	WP3188425		Seal, Shaft   (Replaces: 3191387)				$ 86.74
5	W10203755		Rail, Center		Appelez-nous	-
6	487559		Screw		Appelez-nous	-
7	WP12990527		Screw   (Replaces: 3400843)			Immediately	$ 7.88
8	8286858		Plate, Manifold		Appelez-nous	-
9	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.43
10	WP4456901		Switch Harness   (Replaces: 4456901)				$ 227.87
11	8186533		Bracket, Mounting   (Replaces: 4455917)				$ 83.57
12	8285768		Tubing, Gas Burner (right Front)				$ 176.22
13	8285766		Tubing, Gas Burner (left Front)				$ 178.14
14	8285767		Tubing, Gas Burner (right Rear)				$ 187.61
15	8285769		Tubing, Gas Burner (left Rear)		Appelez-nous	-
16	3191462		Shield, Heat		Appelez-nous	-
17	8285789		Shield, Heat   (Replaces: W10203754)				$ 161.74
18	8286565		Burner Box		Appelez-nous	-
19	WPW10110486		Module, Spark   (Replaces: W10110489)				$ 299.59
20	8285770		Tubing, Gas Burner (center)				$ 161.62
21	W11170853		Regulator, Pressure   (Replaces: W10131956)				$ 297.23

    View Diagram in Separate Window       Print Part List
