View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

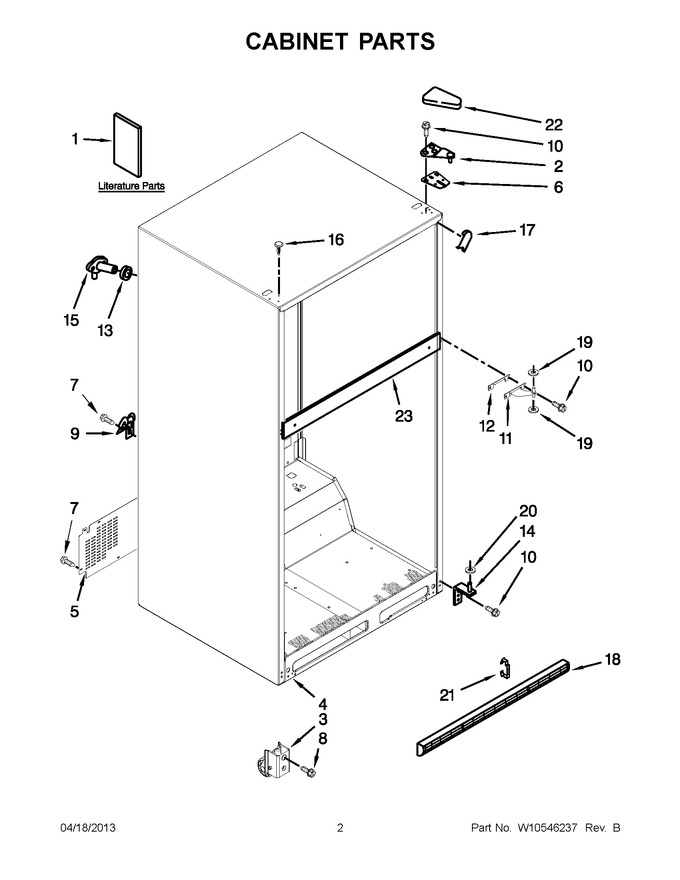

01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Icemaker Parts
06 - Shelf Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 677969 | Do-it-yourself Repair Manuals |
|
$ 30.30 | |||||
| 1 | W10417753 | Energy Label |
|
- | |||||
| 1 | W10360533 | Use & Care Guide |
|
- | |||||
| 1 | 2225623 | Icemaker Service Sheet |
|
- | |||||
| 1 | W10493795 | Service & Wiring Sheet |
|
- | |||||
| 2 | WP2261963 | Assembly, Hinge, Top (Replaces: 2261963) |
|
Immediately | $ 107.48 | ||||
| 3 | WP2166108 | Roller Assembly (Replaces: 2166108) |
|
Immediately | $ 31.28 | ||||
| 4 | N/P | Cabinet (not Serviced) |
|
- | |||||
| 5 | WPW10384414 | Cover, Unit (Replaces: W10384414) |
|
$ 96.14 | |||||
| 6 | W11169703 | Shim, Top Hinge (Replaces: 2221885) |
|
$ 14.21 | |||||
| 7 | WP488729 | Screw (Replaces: 2262176) |
|
Immediately | $ 7.45 | ||||
| 8 | 3400524 | Bolt (Replaces: W10142287) |
|
$ 11.95 | |||||
| 9 | 549193 | Clamp, Power Cord |
|
$ 12.65 | |||||
| 10 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 11 | WP2254618 | Hinge, Center (Replaces: 2254618) |
|
Immediately | $ 82.82 | ||||
| 12 | WP2183852 | Shim, Hinge Center (Replaces: 2183852) |
|
$ 10.06 | |||||
| 13 | WP1106508 | Gasket, Seal (Replaces: 1106508) |
|
Immediately | $ 9.39 | ||||
| 14 | WP2254473 | Hinge, Bottom (Replaces: 2254473) |
|
$ 8.35 | |||||
| 15 | W11292468 | Fitting, Water Tube (Replaces: W10472793) |
|
Immediately | $ 147.56 | ||||
| 16 | WPW10520304 | Hole Plug (white) (Replaces: W10520304) |
|
Immediately | $ 17.30 | ||||
| 16 | WPW10520305 | Hole Plug (black) (Replaces: W10520305) |
|
$ 17.26 | |||||
| 16 | WPW10520306 | Hole Plug (biscuit/bisque) (Replaces: W10520306) |
|
$ 13.84 | |||||
| 17 | WPW10283959 | Corner Filler (white) (Replaces: W10283959) |
|
$ 7.39 | |||||
| 17 | W11252732 | Corner Filler (black) (Replaces: W10283960) |
|
$ 11.76 | |||||
| 17 | W10283958 | Corner Filler (biscuit/bisque) |
|
$ 23.07 | |||||
| 18 | 2254316 | Grille Assembly (includes Item 21) (biscuit/bisque) |
|
- | |||||
| 18 | 2254313 | Grille Assembly (includes Item 21) (white) |
|
$ 41.62 | |||||
| 18 | 2254315 | Grille Assembly (includes Item 21) (black) |
|
$ 41.54 | |||||
| 19 | WP489467 | Washer, Plastic (Replaces: 489341) |
|
Immediately | $ 10.28 | ||||
| 20 | WP487576 | Washer, Plastic (Replaces: 487576) |
|
Immediately | $ 9.67 | ||||
| 21 | 2189356 | Clip, Grille |
|
$ 5.70 | |||||
| 22 | WP2213360 | Cover, Hinge (white) (Replaces: 2213360) |
|
$ 18.17 | |||||
| 22 | WP2213363 | Cover, Hinge (black) (Replaces: 2213363) |
|
Immediately | $ 17.21 | ||||
| 22 | 2213364 | Cover, Hinge (biscuit/bisque) |
|
$ 16.82 | |||||
| 23 | N/P | Rail, Center (not Serviced) |
|
- |
