01 - Cabinet Parts
02 - Door Parts

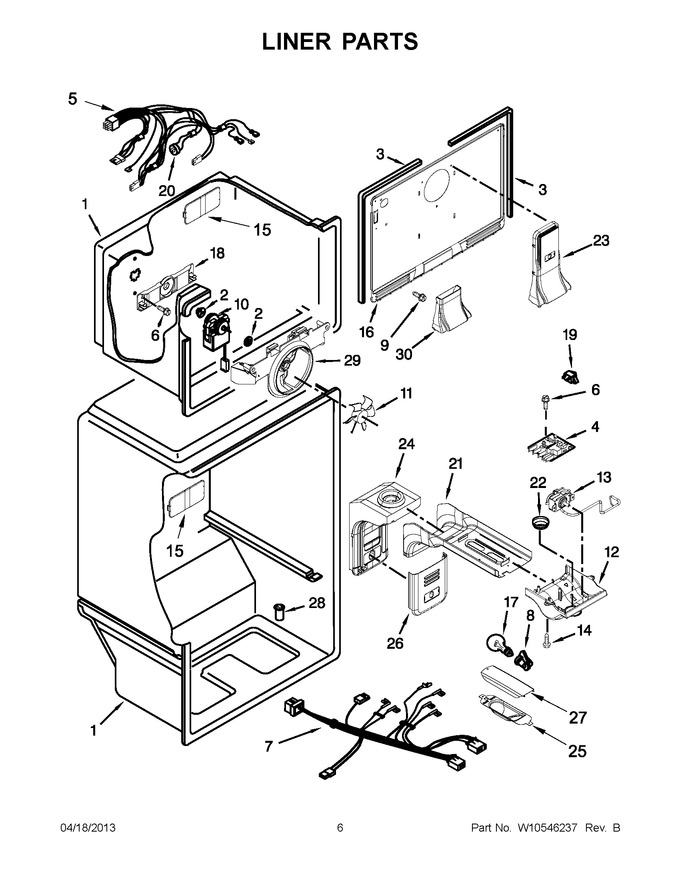

03 - Liner Parts
04 - Unit Parts
05 - Icemaker Parts
06 - Shelf Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not Serviced) |
|
- | |||||
| 2 | WP2264462 | Grommet (Replaces: 2197380) |
|
Immediately | $ 41.55 | ||||
| 3 | WP2254360 | Gasket, Evaporator Cover (Replaces: 2254360) |
|
$ 25.31 | |||||
| 4 | WPW10352689 | Adaptive Defrost Control (Replaces: W10352689) |
|
$ 269.73 | |||||
| 5 | W10339627 | Wire Assembly, Freezer Compartment |
|
$ 222.60 | |||||
| 6 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.13 | |||||
| 7 | W10318068 | Wire Assembly, Control Box |
|
$ 119.32 | |||||
| 8 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 104.10 | ||||
| 9 | WPW10142283 | Screw (white) (Replaces: W10142283) |
|
$ 9.30 | |||||
| 10 | WP2315539 | Fan Motor (Replaces: W10438708) |
|
Immediately | $ 88.26 | ||||
| 11 | WP2163777 | Blade, Fan (Replaces: 2200509) |
|
Immediately | $ 96.85 | ||||
| 12 | W10316941 | Control Box |
|
$ 88.72 | |||||
| 13 | WPW10584888 | Thermostat Assembly (Replaces: W10343913) |
|
Immediately | $ 233.92 | ||||
| 14 | WP489174 | Screw (Replaces: 489174) |
|
$ 6.57 | |||||
| 15 | W10336009 | Screw Cup |
|
$ 69.66 | |||||
| 16 | W10385129 | Cover-evaporator |
|
- | |||||
| 17 | W10887190 | Light Bulb, Blue (Replaces: W10311528) |
|
Immediately | $ 17.31 | ||||
| 18 | 2254454 | Bracket Evaporator Fan, Rear |
|
Immediately | $ 67.90 | ||||
| 19 | W11384469 | Switch, Rocker Arm(ref) (Replaces: 1118894) |
|
Immediately | $ 35.18 | ||||
| 20 | WPW10392132 | Defrost, Bi-metal (Replaces: W10392132) |
|
Immediately | $ 8.15 | ||||
| 21 | WPW10305175 | Air Diffuser Cover (Replaces: W10305175) |
|
$ 102.92 | |||||
| 22 | W10356940 | Knob |
|
- | |||||
| 23 | W10305174 | Air Tower, Fc |
|
$ 43.06 | |||||
| 24 | W10376137 | Air Diffuser Assembly |
|
- | |||||
| 25 | W10300161 | Shield, Light |
|
Immediately | $ 86.96 | ||||
| 26 | W10310927 | Air Diffuser Cup |
|
- | |||||
| 27 | WPW10348614 | Cover, Light (Replaces: W10348614) |
|
$ 106.16 | |||||
| 28 | WP2210509 | Valve, Release (Replaces: 2210509) |
|
$ 89.24 | |||||
| 29 | W10850162 | Bracket, Fan Motor (Replaces: W10321162) |
|
Immediately | $ 29.22 | ||||
| 30 | W10396926 | Assembly, Tower Connection |
|
$ 39.05 |
