View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cabinet Parts
02 - Freezer Liner Parts

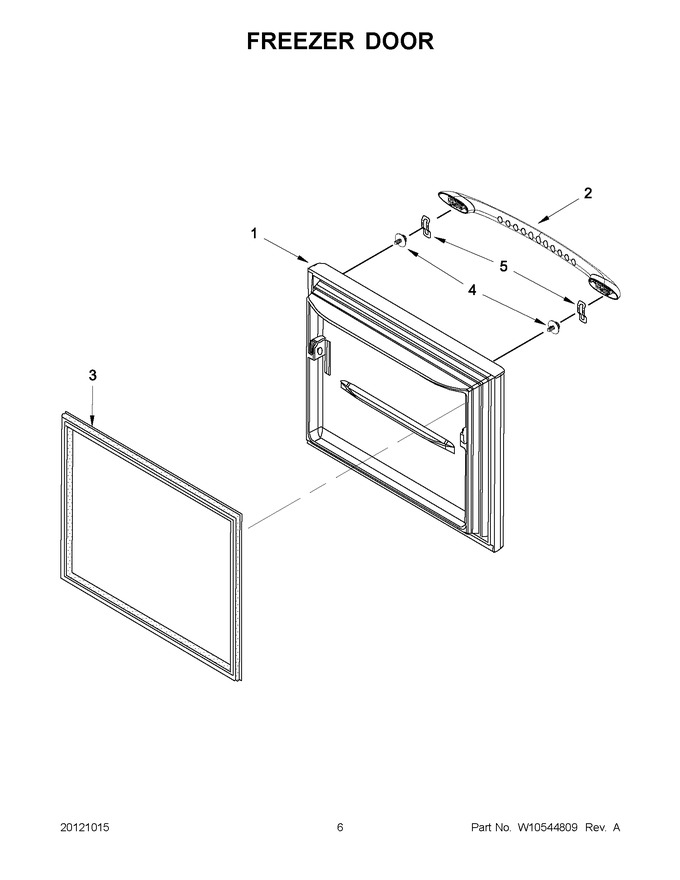

03 - Freezer Door
04 - Refrigerator Liner Parts
05 - Refrigerator Door
06 - Unit Parts
07 - Shelf Parts
08 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13109221W | Door, Freezer (white) |
|
- | |||||
| 1 | 13109221B | Door, Freezer (black) |
|
- | |||||
| 2 | WPW10252284A | Handle, Door (white) (Replaces: W10252284N) |
|
$ 68.65 | |||||
| 2 | W10252285N | Handle, Door (black) |
|
- | |||||
| 3 | WPW10443311 | Gasket, Door (white) (Replaces: W10443311) |
|
Immediately | $ 284.99 | ||||
| 3 | WPW10436247 | Gasket, Door (black) (Replaces: W10436247) |
|
Immediately | $ 329.38 | ||||
| 4 | WPW10288153 | Screw (Replaces: W10288153) |
|
Immediately | $ 8.69 | ||||
| 5 | WP2255411 | Clip, Handle Mount (Replaces: 2255411) |
|
$ 32.90 |
