SELECT A DIAGRAM

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Freezer Door


04 - Refrigerator Liner Parts

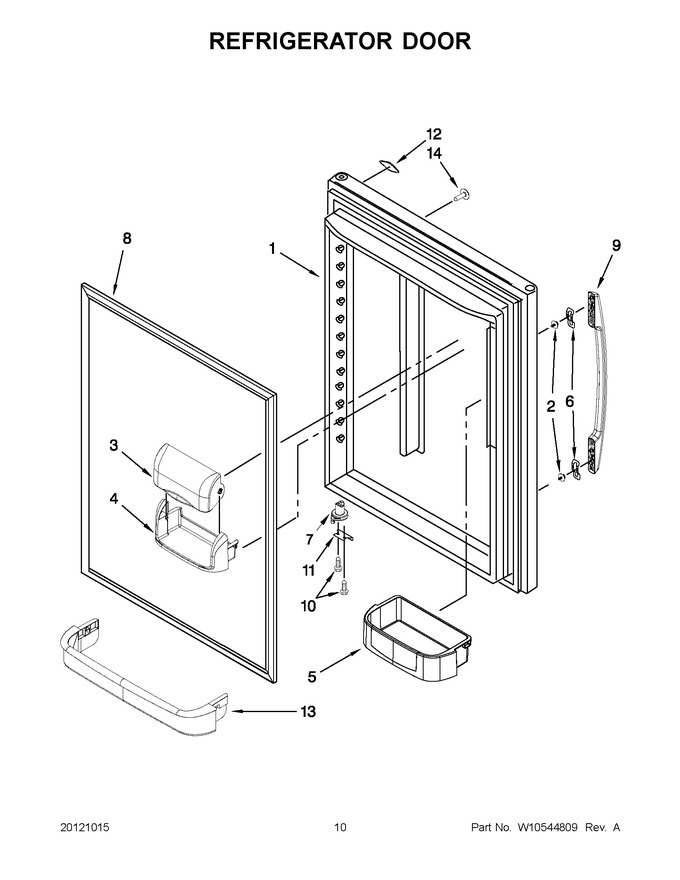

05 - Refrigerator Door


06 - Unit Parts


07 - Shelf Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13109403B		Door, Refrigerator (black)		Appelez-nous	-
1	13109403W		Door, Refrigerator (white)		Appelez-nous	-
2	WPW10288153		Screw   (Replaces: W10288153)			Immediately	$ 8.69
3	WP67003637		Door, Dairy   (Replaces: 12804701SP)			Immediately	$ 74.40
4	WP67001279		Tray, Dairy   (Replaces: 12369502SP)			Immediately	$ 79.21
5	67004040		Bucket, Door (medium)   (Replaces: 12801902)				$ 86.39
5	WP67004041		Bucket, Door (small)   (Replaces: 12801901)				$ 80.11
6	WP2255411		Clip, Handle Mount   (Replaces: 2255411)				$ 32.90
7	WP67003639		Closure, Door (black)   (Replaces: 12028505B)				$ 81.29
7	WP67003638		Closure, Door (white)   (Replaces: 12028505W)			Immediately	$ 7.34
8	WPW10436245		Gasket, Door (black)   (Replaces: W10436245)				$ 326.12
8	WPW10443309		Gasket, Door (white)   (Replaces: W10443309)			Immediately	$ 328.72
9	W10252285N		Handle, Door (black)		Appelez-nous	-
9	WPW10252284A		Handle, Door (white)   (Replaces: W10252284N)				$ 68.65
10	WP98165		Screw   (Replaces: 12990504)				$ 7.71
11	12968202W		Stop, Door (white)   (Replaces: 10447111)				$ 62.36
11	W11708403		Stop, Door (black)   (Replaces: 10447112)			Immediately	$ 13.28
12	WPW10170766		Stainless   (Replaces: W10170766)			Immediately	$ 63.45
13	67001139		Retainer, Door   (Replaces: 12557904)			Immediately	$ 94.31
14	WP12246608		Plug, Button (black)   (Replaces: 12246608)			Immediately	$ 7.34
14	WP67001130		Plug, Button (white)   (Replaces: 12246607)			Immediately	$ 7.39

    View Diagram in Separate Window       Print Part List
