01 - Top And Console Parts

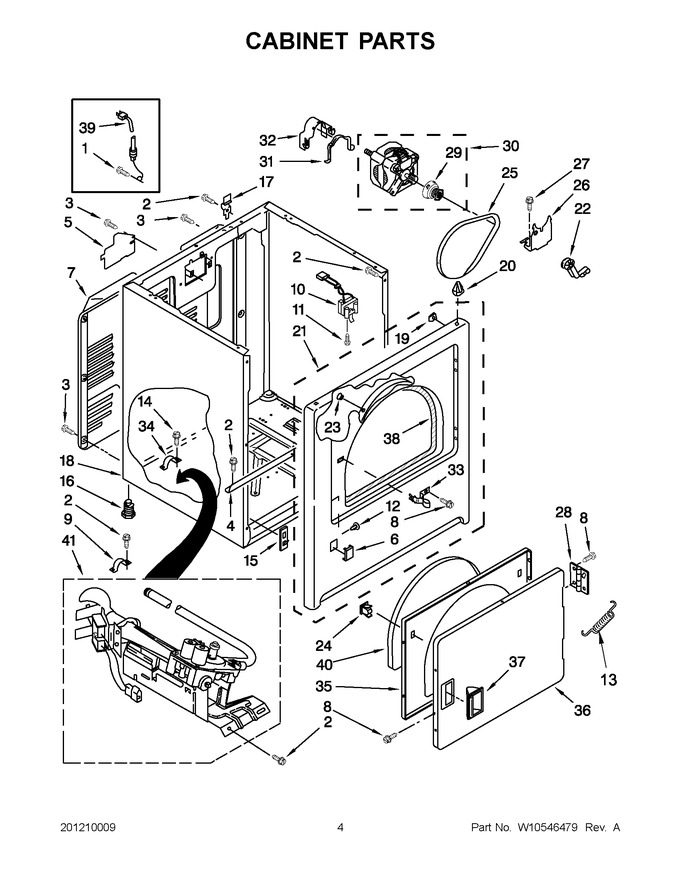

02 - Cabinet Parts
03 - Bulkhead Parts
04 - Burner Assembly
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10850756 | Screw (Replaces: 8533974) |
|
$ 8.20 | |||||
| 2 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 3 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 4 | W10236073 | Bracket, Cabinet |
|
- | |||||
| 5 | W11539855 | Cover, Terminal Block (Replaces: 3396795) |
|
Immediately | $ 629.75 | ||||
| 6 | W10811916 | White (Replaces: 8564457) |
|
$ 16.50 | |||||
| 7 | 280043 | Panel, Rear Door Spring (Replaces: 3396805) |
|
$ 358.37 | |||||
| 8 | WP488627 | Screw (Replaces: 342055) |
|
$ 8.11 | |||||
| 9 | 341029 | Clamp, Elbow (Replaces: 3980175) |
|
- | |||||
| 10 | WPW10237959 | Switch, Door (Replaces: 3406109) |
|
Immediately | $ 62.63 | ||||
| 11 | WP3395530 | Screw (Replaces: 697773) |
|
$ 8.57 | |||||
| 12 | 8066086 | Plug, Drum Hole |
|
$ 11.29 | |||||
| 13 | WPW10041960 | Spring, Door (Replaces: W10041960) |
|
Immediately | $ 42.70 | ||||
| 14 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 8.25 | |||||
| 15 | W10854425 | Clip, Front Panel (Replaces: 3394083) |
|
Immediately | $ 16.34 | ||||
| 16 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 17 | WP8066217 | Hinge, Top (Replaces: 8066217) |
|
$ 8.21 | |||||
| 18 | 8533643 | Cabinet (white) (Replaces: 8530603) |
|
$ 419.22 | |||||
| 19 | WP98234 | Clip, Ground (Replaces: 98234) |
|
Immediately | $ 11.96 | ||||
| 20 | WP8066092 | Lock, Front Top (Replaces: 8066092) |
|
Immediately | $ 20.48 | ||||
| 21 | 279740 | Panel Front (white) (Replaces: 3395197) |
|
$ 380.07 | |||||
| 22 | WP691366 | Idler Assembly (Replaces: 691366) |
|
Immediately | $ 22.47 | ||||
| 23 | 279220 | Clip, Felt Pad (Replaces: 685203) |
|
$ 23.55 | |||||
| 24 | WP3389441 | Door Catch Assembly (Replaces: 3389441) |
|
Immediately | $ 7.29 | ||||
| 25 | 341241 | Belt, Drive (Replaces: W10131364) |
|
Immediately | $ 18.15 | ||||
| 26 | WP348780 | Base, Motor (Replaces: 348780) |
|
Immediately | $ 127.65 | ||||
| 27 | 3400500 | Bolt, |
|
Immediately | $ 14.04 | ||||
| 28 | WP8066056 | Hinge, Spring Assembly (right Side) (Replaces: 8066056) |
|
Immediately | $ 103.36 | ||||
| 28 | WP8066057 | Hinge, Spring Assembly (left Side) (Replaces: 8066057) |
|
$ 100.95 | |||||
| 29 | WP8066184 | Pulley, Motor (Replaces: 8066184) |
|
Immediately | $ 51.02 | ||||
| 30 | 279827 | Motor Assembly (Replaces: W10396029) |
|
Immediately | $ 217.20 | ||||
| 31 | WPW10121316 | Clamp, Motor Mount (Replaces: W10121316) |
|
Immediately | $ 26.96 | ||||
| 32 | WP3404162 | Clamp, Motor (with Shield) (Replaces: 3404162) |
|
Immediately | $ 8.21 | ||||
| 33 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.89 | ||||
| 34 | 341029 | Clamp, Pipe |
|
- | |||||
| 35 | WP695737 | Door, Rear (Replaces: 695737) |
|
$ 267.29 | |||||
| 36 | WP3393549 | Door, Outer (white) (Replaces: 3393549) |
|
$ 185.34 | |||||
| 37 | W10877261 | Handle, Door (Replaces: W10095180) |
|
$ 90.77 | |||||
| 38 | W11035878 | Seal & Bearing Assembly (Replaces: 3406129) |
|
Immediately | $ 92.68 | ||||
| 39 | W11222083 | Cord, Power (Replaces: W10440460) |
|
$ 126.62 | |||||
| 40 | W10906683 | Seal, Door (Replaces: 3390731) |
|
$ 134.96 | |||||
| 41 | W10823508 | Burner Assembly (60 Hz) (Replaces: W10336852) |
|
$ 541.24 |
