01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts

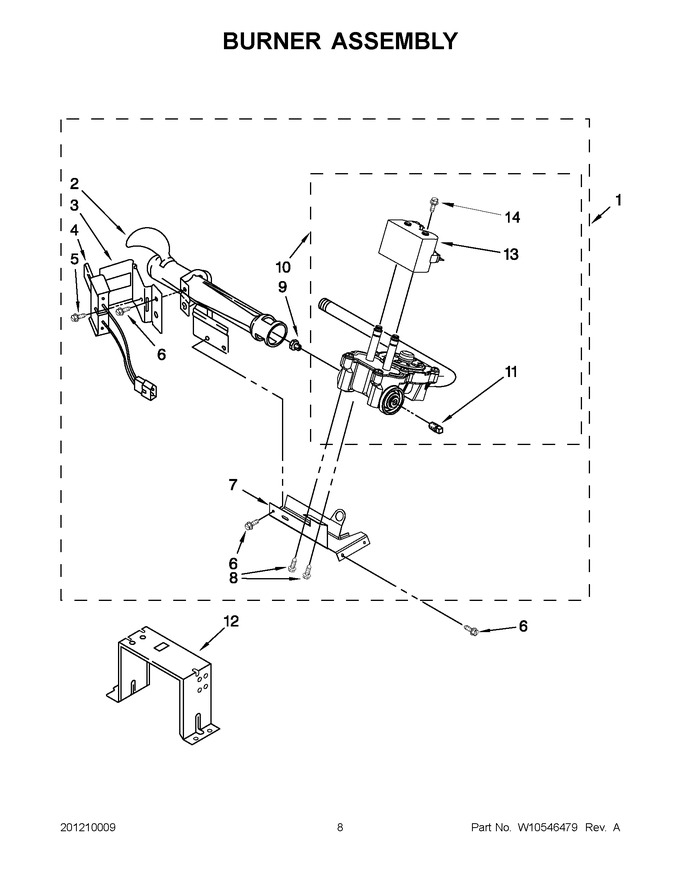

04 - Burner Assembly
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10823508 | Burner Assembly (60 Hz) (Replaces: W10336852) |
|
$ 487.12 | |||||
| 2 | WP693140 | Tube, Burner (Replaces: 688617) |
|
$ 169.98 | |||||
| 3 | WP694298 | Bracket, Ignitor (Replaces: 694298) |
|
$ 24.50 | |||||
| 4 | 279311 | Ignitor (Replaces: 686590) |
|
Immediately | $ 71.01 | ||||
| 5 | WPW10366705 | Screw (Replaces: 3393909) |
|
$ 7.09 | |||||
| 6 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 7 | 3389871 | Base, Burner |
|
$ 74.93 | |||||
| 8 | WP693995 | Screw (Replaces: 3387057) |
|
Immediately | $ 6.80 | ||||
| 9 | WP234826 | Orifice, Burner Type 1 (Replaces: 234826) |
|
$ 35.34 | |||||
| 10 | 279923 | Valve, Gas 60 Hz. (Replaces: W10304604) |
|
Immediately | $ 257.43 | ||||
| 11 | W10295523 | Pipe, Plug |
|
- | |||||
| 12 | 3389888 | Bracket, Support (Replaces: 3389889) |
|
- | |||||
| 13 | WPW10328463 | Coil, 60 Hz. (Replaces: W10328463) |
|
Immediately | $ 81.86 | ||||
| 14 | 326049536 | Screw |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11581317 | Conversion Kit (type 1 And 2) To Type (4) L.p.g. (Replaces: W10307153) |
|
Immediately | $ 83.85 |
