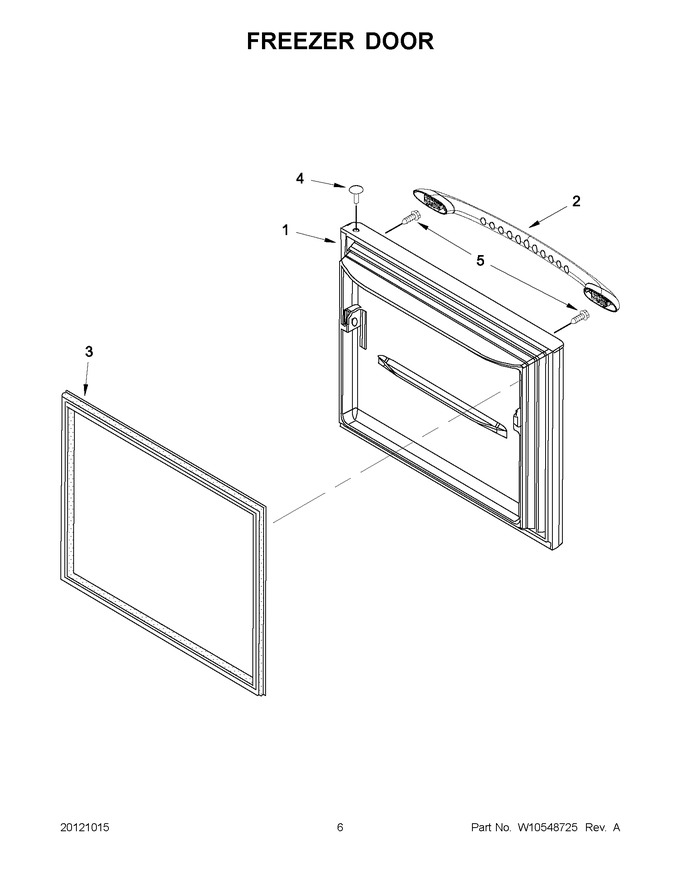

03 - Freezer Door
04 - Refrigerator Liner Parts
05 - Refrigerator Door
06 - Unit Parts
07 - Shelf Parts
08 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13109220BQ | Door, Freezer (black) (Replaces: 13109220B) |
|
$ 839.77 | |||||
| 1 | 13109220WQ | Door, Freezer (white) (Replaces: 13109220W) |
|
$ 948.46 | |||||
| 2 | WPW10222984K | Handle, Door (white) (Replaces: W10222984KN) |
|
$ 184.91 | |||||
| 2 | W11351146 | Handle, Door (black) (Replaces: W10222985KN) |
|
$ 170.17 | |||||
| 3 | WPW10436247 | Gasket, Door (black) (Replaces: W10436247) |
|
Immediately | $ 329.38 | ||||
| 3 | WPW10443311 | Gasket, Door (white) (Replaces: W10443311) |
|
Immediately | $ 284.99 | ||||
| 4 | WP67001130 | Plug-button (white) (Replaces: 12246607) |
|
Immediately | $ 7.39 | ||||
| 4 | WP12246608 | Plug-button (black) (Replaces: 12246608) |
|
Immediately | $ 7.34 | ||||
| 5 | WPW10288153 | Screw (Replaces: W10288153) |
|
Immediately | $ 8.69 |
