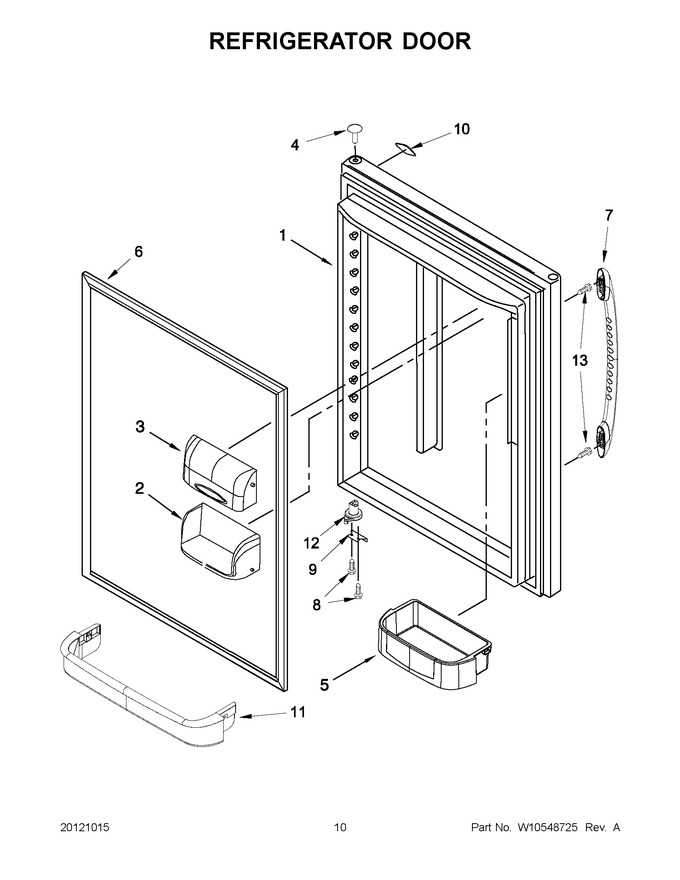

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13109402BQ		Door, Refrigerator (black)   (Replaces: 13109402B)				$ 838.18
1	13109402WQ		Door, Refrigerator (white)   (Replaces: 13109402W)				$ 990.75
2	WP67001279		Tray, Dairy   (Replaces: 12369502SP)			Immediately	$ 79.21
3	WP67003637		Door, Dairy   (Replaces: 12804701SP)			Immediately	$ 74.40
4	WP12246608		Plug-button (black)   (Replaces: 12246608)			Immediately	$ 7.34
4	WP67001130		Plug-button (white)   (Replaces: 12246607)			Immediately	$ 7.39
5	WPW10351081		Bin, Shelf (small)   (Replaces: W10351081)			Immediately	$ 74.49
5	WPW10324005		Bin, Shelf (medium)   (Replaces: W10324005)				$ 69.98
6	WPW10436245		Gasket, Door (black)   (Replaces: W10436245)				$ 326.12
6	WPW10443309		Gasket, Door (white)   (Replaces: W10443309)			Immediately	$ 328.72
7	W11351146		Handle, Door (black)   (Replaces: W10222985KN)				$ 170.17
7	WPW10222984K		Handle, Door (white)   (Replaces: W10222984KN)				$ 184.91
8	WP98165		Screw   (Replaces: 12990504)				$ 7.71
9	12968202W		Stop, Door (white)   (Replaces: 10447111)				$ 62.36
9	W11708403		Stop, Door (black)   (Replaces: 10447112)			Immediately	$ 13.28
10	WPW10393265		Nameplate (grey)   (Replaces: W10393265)			Immediately	$ 70.71
10	WPW10391355		Nameplate (white)   (Replaces: W10391355)				$ 68.09
11	67001139		Retainer, Door   (Replaces: 12557904)			Immediately	$ 94.31
12	WP67003638		Closure, Door (white)   (Replaces: 12028505W)			Immediately	$ 7.34
12	WP67003639		Closure, Door (black)   (Replaces: 12028505B)				$ 81.29
13	WPW10288153		Screw   (Replaces: W10288153)			Immediately	$ 8.69
