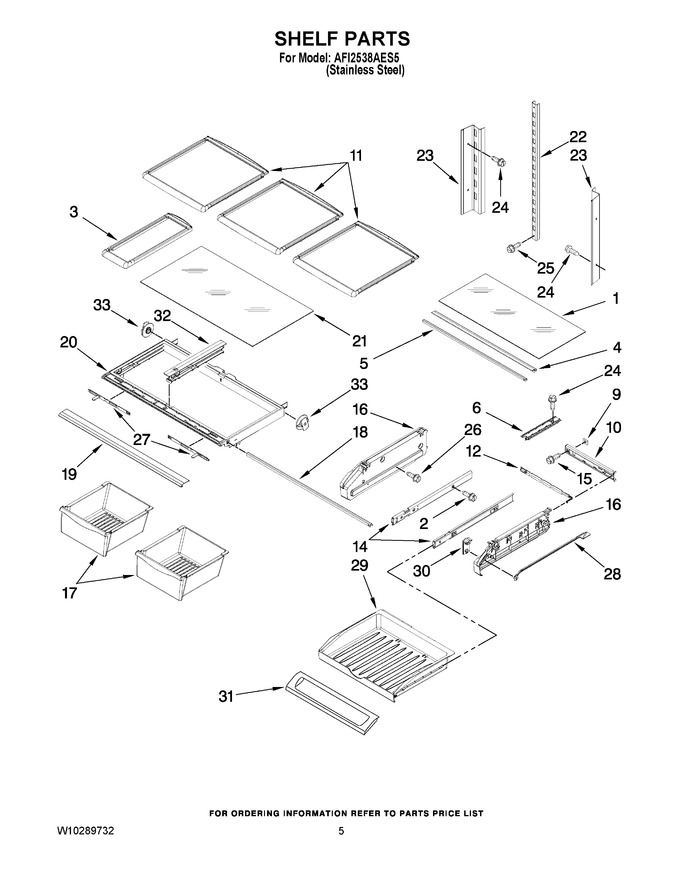

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP67006704 | Glass, Pantry (Replaces: 12204824) |
|
$ 237.09 | |||||
| 2 | WP98165 | Screw (Replaces: 12990504) |
|
$ 7.71 | |||||
| 3 | W11197490 | Shelf, Mini (stationary) (Replaces: 12885501) |
|
$ 217.85 | |||||
| 4 | W11812285 | Support, Pantry(2) (Replaces: 12655902SP) |
|
$ 48.00 | |||||
| 5 | WP12227305WD | Brace, Pantry (2) (Replaces: 12227305WD) |
|
$ 97.52 | |||||
| 6 | WP67001719 | Track-pantry (Replaces: 12531901) |
|
Immediately | $ 8.09 | ||||
| 9 | 67002329 | Gasket, Pantry (Replaces: 12656901) |
|
$ 19.88 | |||||
| 10 | 12656202 | Housing, Control |
|
$ 133.96 | |||||
| 11 | W11402525 | Shelf, Glide (3) (Replaces: 12883507) |
|
$ 211.00 | |||||
| 12 | WP67003793 | Slide, Temperature (Replaces: 12655402) |
|
Immediately | $ 70.64 | ||||
| 14 | WPW10235370 | Glide, Drawer(2) (Replaces: 13058101V) |
|
Immediately | $ 268.25 | ||||
| 15 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 6.57 | ||||
| 16 | W10874836 | Track, Pantry (left) (Replaces: 12656106) |
|
Immediately | $ 34.59 | ||||
| 16 | W10874836 | Track, Pantry (right) (Replaces: 12656019) |
|
Immediately | $ 34.59 | ||||
| 17 | 12724126 | Pan, Crisper (2) |
|
- | |||||
| 18 | WP12642303WD | Support, Crisper Cover (Replaces: 12642303WD) |
|
$ 101.03 | |||||
| 19 | W10231344 | Trim, Crisper |
|
$ 58.15 | |||||
| 20 | WP67003854 | Frame, Crisper (Replaces: 12796301SP) |
|
Immediately | $ 260.79 | ||||
| 21 | WP67006704 | Glass, Crisper Cover (Replaces: 12204824) |
|
$ 237.09 | |||||
| 22 | 12435809 | Ladder, Center |
|
- | |||||
| 23 | 13039302 | Ladder, Side |
|
- | |||||
| 24 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 6.57 | ||||
| 25 | W10709795 | Screw (Replaces: 12990515) |
|
$ 12.41 | |||||
| 26 | WP67006415 | Screw (Replaces: 12990512) |
|
$ 7.54 | |||||
| 27 | WP67005864 | Slide, Humidity Control (Replaces: 12530805SP) |
|
Immediately | $ 7.38 | ||||
| 28 | WP67003795 | Rod, Temperature Control (Replaces: 12655304) |
|
$ 7.61 | |||||
| 29 | WP67003531 | Drawer, Pantry (Replaces: 12731302) |
|
$ 166.87 | |||||
| 30 | W11498983 | Knob, Temperature Control (Replaces: 12655204V) |
|
$ 27.58 | |||||
| 31 | W10827015 | Door, Pantry Drawer (Replaces: 12656816) |
|
Immediately | $ 177.49 | ||||
| 32 | WPW10326469 | Support, Center Crisper Frame (Replaces: 12796401) |
|
Immediately | $ 30.03 | ||||
| 33 | W10190541 | Mount, Crisper Support |
|
$ 11.89 |
