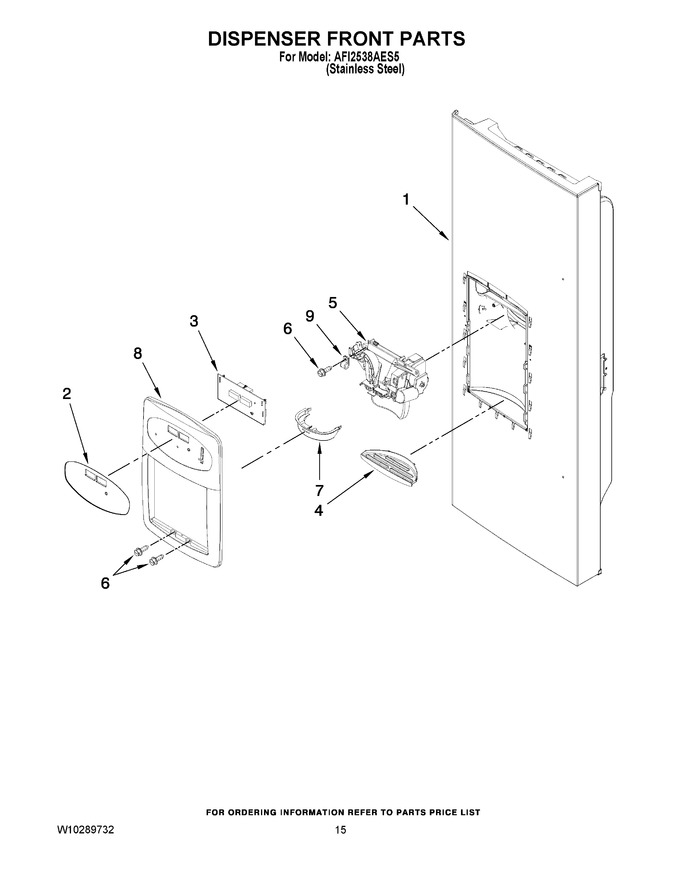

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | 13035901B | Dispenser Keyboard (black) |
|
- | |||||
| 3 | 67006294 | Board, L.v. (Replaces: 12939601) |
|
$ 243.03 | |||||
| 4 | WP12999301B | Sump, Dispenser (black) (Replaces: 12999301B) |
|
Immediately | $ 16.04 | ||||
| 5 | WP13005701B | Chute, Ext/yoke (includes Switch) (black) (Replaces: 13005701B) |
|
$ 256.55 | |||||
| 6 | WP489349 | Screw (4) (Replaces: 12992403) |
|
Immediately | $ 7.59 | ||||
| 7 | 67006295 | Ring, Target (Replaces: 12958301) |
|
$ 50.01 | |||||
| 8 | 12980801B | Facade, Dispenser (black) |
|
- | |||||
| 9 | M0108106 | Clamp, Tube |
|
$ 62.96 |
