View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

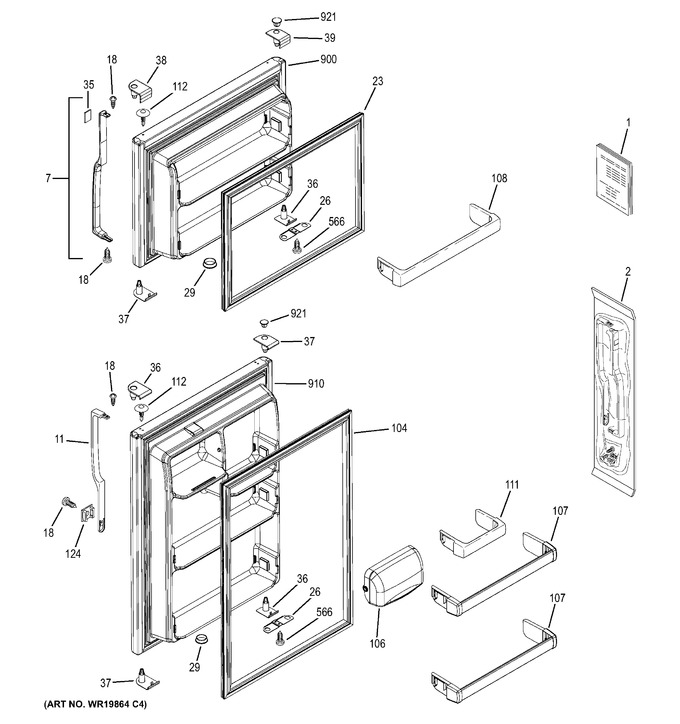

1 - Doors
2 - Freezer Section
4 - Fresh Food Section
5 - Fresh Food Shelves
6 - Machine Compartment
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 49-60511 | Pm Guide Owners |
|
- | |||||
| 1 | 31-51742 | Pm Mini Manual Wiring |
|
- | |||||
| 2 | WR12X10761 | Pk Handle Small Asm Bk |
|
- | |||||
| 7 | WR12X10607 | Handle Assy Fz |
|
- | |||||
| 11 | WR12X10771 | Handle Door Ff Bk |
|
- | |||||
| 23 | WG03L00638 | Gasket Door Fz (Replaces: WR24X10185) |
|
$ 156.25 | |||||
| 35 | WR04X10030 | Lens Nameplate Black |
|
- | |||||
| 104 | WG03L00637 | Gasket Door Ff (Replaces: WR24X10184) |
|
$ 173.97 | |||||
| 112 | WR01A00518 | Plug Door Rvsbl Bk (Replaces: WR2X8701) |
|
$ 4.20 | |||||
| 124 | WR12X10136 | Plug Button Handle Black |
|
- | |||||
| 566 | WR01X10590 | Scr 10-16 Ab Pnt20 1/2 S |
|
- | |||||
| 900 | WR78X12961 | Door Foam Asm Fz |
|
- | |||||
| 910 | WR78X12960 | Door Foam Asm Ff |
|
- |
