SELECT A DIAGRAM

1 - Doors

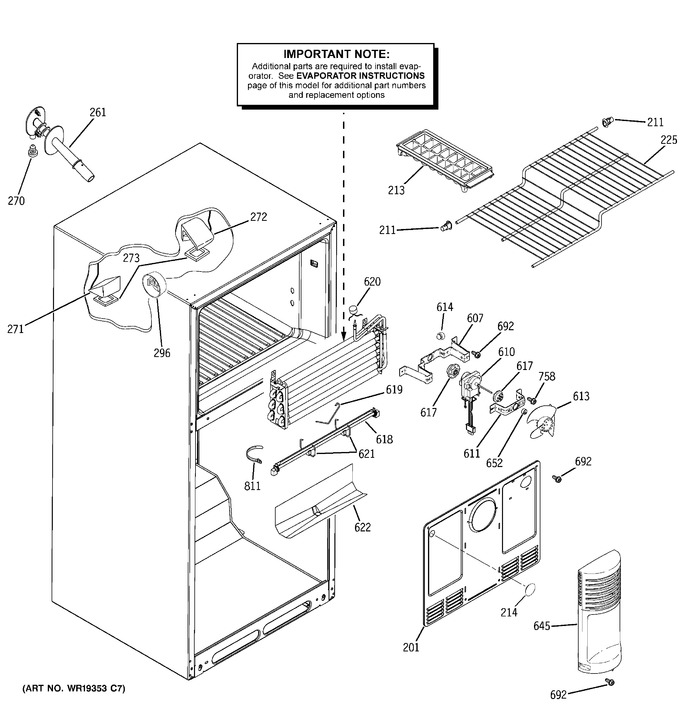

2 - Freezer Section


4 - Fresh Food Section


5 - Fresh Food Shelves


6 - Machine Compartment


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
213	WR30X311		Tray Ice		Appelez-nous	-
214	WR02X11760		Plug Button		Appelez-nous	-
270	WG03L01693		Plug Button Water Fill   (Replaces: WR2X8247)				$ 4.20
296	WR02X11123		Cover Im Receptacle		Appelez-nous	-
611	WG03F00071		Bracket Cond Fan (mtg)   (Replaces: WR02X11863)			Immediately	$ 24.30
613	WR60X10205		Blade Evap Fan Asm				$ 21.96
618	WG03F00770		Heater Conduction   (Replaces: WR51X10038)			Immediately	$ 106.26
620	WR50X10077		Thermostat Def		Appelez-nous	-
620	WR50X10110		Thermostat Def		Appelez-nous	-
621	WR02X10518		Holder Element		Appelez-nous	-
652	WG03F01616		Ring Compression   (Replaces: WR02X12149)				$ 3.57

    View Diagram in Separate Window       Print Part List
