SELECT A DIAGRAM

01 - Cabinet Parts


02 - Cabinet Trim Parts


03 - Refrigerator Liner Parts


04 - Freezer Liner And Air Flow Parts


05 - Refrigerator Shelf Parts


06 - Freezer Shelf Parts


07 - Refrigerator Door Parts


08 - Freezer Door Parts


09 - Top Grille & Unit Cover


10 - Upper Unit Parts


11 - Lower Unit & Tube Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)

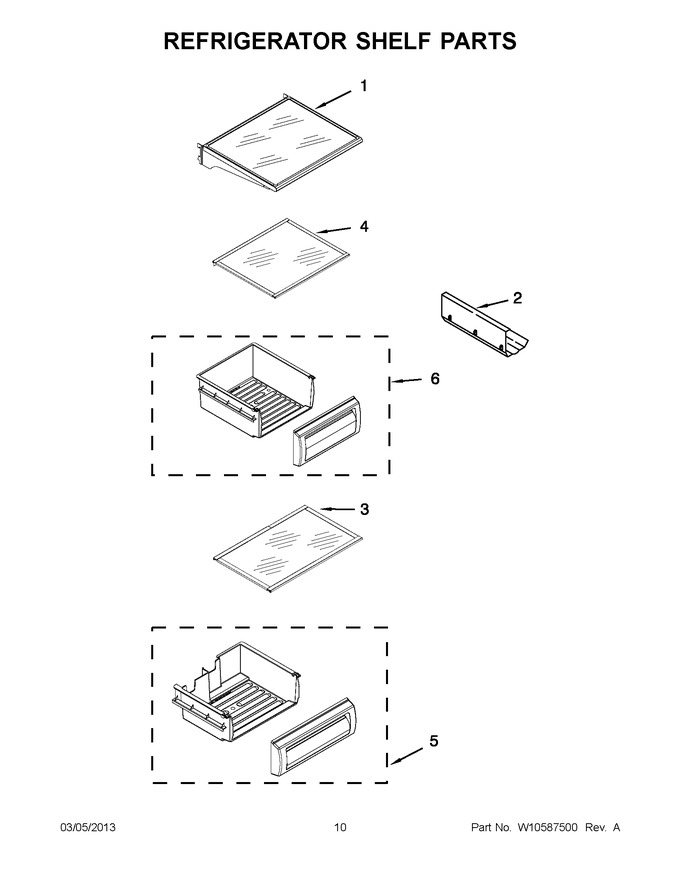

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2222591		Shelf Assembly		Appelez-nous	-
2	W10777924		Rack, Wine   (Replaces: 2179404)				$ 22.30
3	2302841		Assembly, Meat Pan Cover		Appelez-nous	-
4	2302834		Assembly, Crisper Cover		Appelez-nous	-
5	W10407626		Assembly, Meat Pan		Appelez-nous	-
6	W10407623		Assembly, Crisper Pan		Appelez-nous	-
