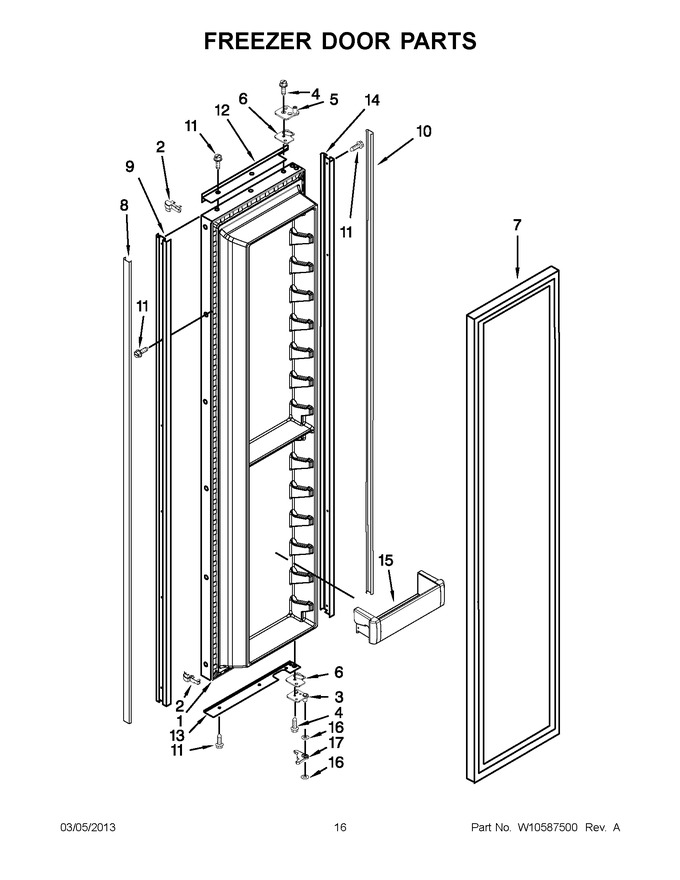

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10193485 | Freezer Door Panel |
|
- | |||||
| 2 | 2207457 | Trim, Corner |
|
$ 51.41 | |||||
| 3 | 2252294 | Hinge, Bottom |
|
- | |||||
| 4 | W11474472 | Screw (Replaces: W10162602) |
|
Immediately | $ 7.77 | ||||
| 5 | W10484480 | Hinge Assembly, Top |
|
$ 57.64 | |||||
| 6 | W11673500 | Spacer, Door Hinge Bottom (Replaces: 2316804) |
|
Immediately | $ 117.33 | ||||
| 7 | W11624976 | Door Gasket, Magnetic (Replaces: 2222813) |
|
Immediately | $ 284.82 | ||||
| 8 | 2314003S | Cover, Trim (handle Side) |
|
$ 157.17 | |||||
| 9 | 2309497S | Trim, Door (handle Side) |
|
$ 290.72 | |||||
| 10 | 2259448S | Trim Assembly, Cover (hinge Side) |
|
$ 161.55 | |||||
| 11 | WP8281250 | Screw (stainless) (Replaces: 8281250) |
|
$ 10.28 | |||||
| 12 | 2309488S | Trim, Top Door |
|
- | |||||
| 13 | 2309494S | Trim, Bottom Door |
|
- | |||||
| 14 | 2309498S | Trim, Door (hinge Side) |
|
$ 291.94 | |||||
| 15 | W10323601 | Bin, Door |
|
$ 82.97 | |||||
| 16 | WP2006346 | Washer, Extension Arm (Replaces: 2006346) |
|
Immediately | $ 10.58 | ||||
| 17 | W11700297 | Cover, Bottom Gap (Replaces: W10482554) |
|
Immediately | $ 34.45 |
