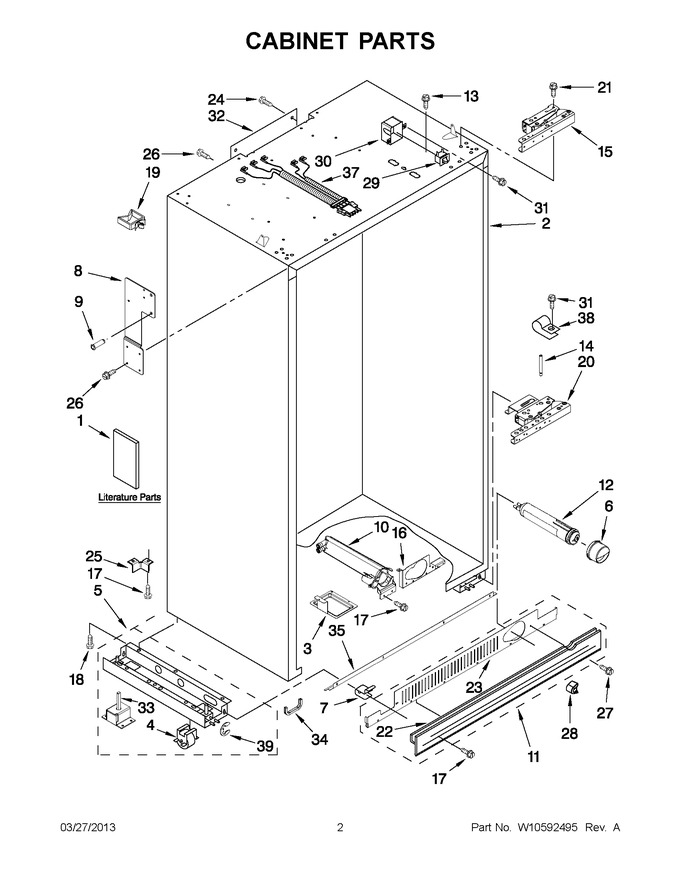

01 - Cabinet Parts


02 - Cabinet Trim Parts


03 - Refrigerator Liner Parts


04 - Freezer Liner And Air Flow Parts


05 - Control Panel Parts


06 - Refrigerator Shelf Parts


07 - Freezer Shelf Parts


08 - Refrigerator Door Parts


09 - Freezer Door Parts


10 - Top Grille And Unit Cover Parts


11 - Upper Unit Parts


12 - Lower Unit And Tube Parts


13 - Icemaker Parts


14 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10234149		Main Control Service Sheet		Appelez-nous	-
1	W10379136		Installation Instructions		Appelez-nous	-
1	W10303992		Use & Care Guide		Appelez-nous	-
1	W10246794		Energy Guide		Appelez-nous	-
1	W10483325		Service & Wiring Sheet		Appelez-nous	-
1	W10234151		Icemaker And Ingredient Care Center Service Sheet		Appelez-nous	-
2	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
3	2318189		Tray, Drip Filter				$ 133.86
4	WPW10138054		Assembly, Roller   (Replaces: W10138054)				$ 40.81
5	W10860448		Support, Leveler Assembly (right Hand)   (Replaces: W10138423)			Immediately	$ 344.70
5	W10860229		Support, Leveler Assembly (left Hand)   (Replaces: W10279275)				$ 343.65
6	WP2260518B		Cap, Water Filter (black)   (Replaces: 2260518B)			Immediately	$ 32.07
7	W10839844		Mounting Bracket, Grill   (Replaces: 2307640)				$ 38.93
8	W10188499		Support-grille (left Hand)				$ 66.70
8	W10188500		Support-grille (right Hand)				$ 104.30
9	WPW10121451		Insert, Blind Threaded   (Replaces: W10121451)			Immediately	$ 7.23
10	WPW10121140		Housing, Water Filter   (Replaces: W10121140)			Immediately	$ 243.77
11	W10182714		Assembly, Bottom Grille				$ 197.29
12	EDR3RXD1B		Filter, Water   (Replaces: W10121146)			Immediately	$ 49.99
13	WP489399		Screw   (Replaces: 489399)				$ 6.57
14	W10234202		Pin, Door Stop				$ 82.56
15	W10167397		Hinge (top) (right Hand)				$ 501.99
15	W10167398		Hinge (top) (left Hand)				$ 367.15
16	W11755873		Bracket, Filter   (Replaces: W10348782)				$ 72.30
17	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 7.54
18	W11624204		Screw   (Replaces: 486194)				$ 13.25
19	W10129069		Clip, Harness		Appelez-nous	-
20	W10182692		Hinge (bottom) (right Hand)				$ 345.49
20	W10182693		Hinge (bottom) (left Hand)				$ 316.45
21	W11721628		Screw   (Replaces: 8533913)			Immediately	$ 13.30
22	W10859915		Skirt, Bottom Grille   (Replaces: W10188551)				$ 224.36
23	W11739148		Grille, Push Filter Bottom (black)   (Replaces: W10182718)				$ 193.13
24	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 7.56
25	2006617		Bracket, Support Base		Appelez-nous	-
26	WPW10141645		Screw   (Replaces: W10141645)				$ 7.25
27	WP8281163		Screw (stainless)   (Replaces: 8281163)			Immediately	$ 9.63
28	WP2260503B		Button, Water Filter (black)   (Replaces: 2260503B)				$ 68.78
29	W11384469		Switch, Light   (Replaces: C3680314)			Immediately	$ 35.18
30	W10167341		Cover, Switch (right Hand)				$ 69.38
30	W10167387		Cover, Switch (left Hand)				$ 69.82
31	WP965173		Screw   (Replaces: 487415)			Immediately	$ 10.68
32	2215612		Cover, Air Duct		Appelez-nous	-
33	2005032		Leveler, Adjustable			Immediately	$ 180.06
34	2307584		Grommet Crossover Tube				$ 21.06
35	WPW10250963		Grille Trim Top   (Replaces: W10250963)				$ 113.64
37	W10209510		Wire Assembly Rc/fc Light Switch		Appelez-nous	-
38	549193		Clamp, Power Cord				$ 12.65
39	2006841		Ring, Retainer				$ 83.39
