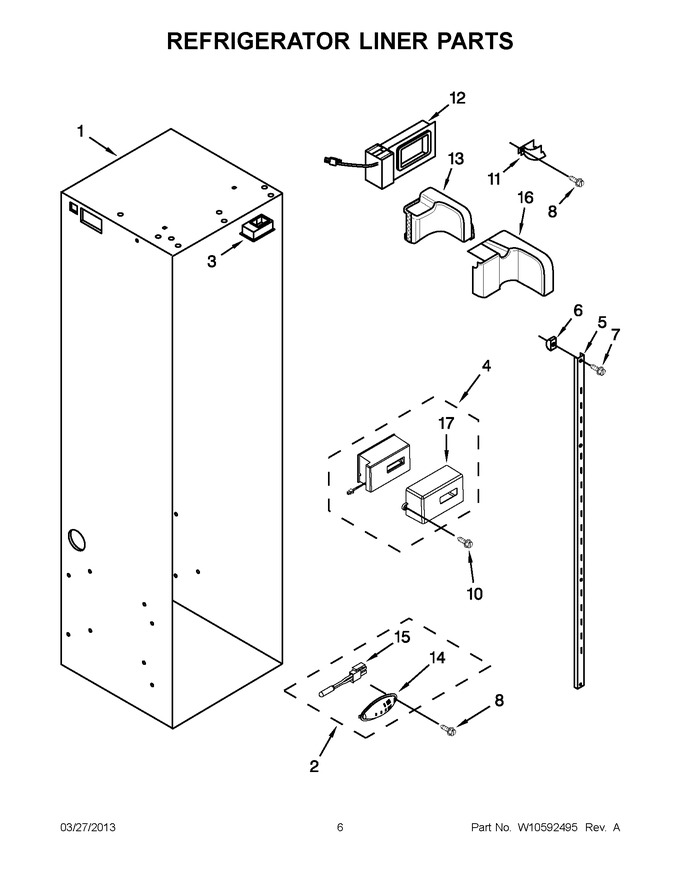

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	WP2317844		Assembly, Thermistor   (Replaces: 2317844)				$ 10.24
3	2208970		Air Duct				$ 136.26
4	WPW10171433		Diffuser, Assembly Crisper (upper)   (Replaces: W10171433)				$ 145.82
5	W10175171		Ladder, Shelf		Appelez-nous	-
6	2259445		Support, Ladder Screw		Appelez-nous	-
7	2006475		Screw (white)		Appelez-nous	-
8	WP488729		Screw (stainless)   (Replaces: 487539)			Immediately	$ 7.45
10	W11624204		Screw   (Replaces: 486194)				$ 13.25
11	2003577		Guard, Air Return		Appelez-nous	-
12	WP2221296		Air Baffle Assembly   (Replaces: 2221296)			Immediately	$ 371.32
13	W10203322		Diffuser Assembly			Immediately	$ 80.20
14	WP2317844		Cover, Thermistor   (Replaces: 2317105)				$ 10.24
15	WP2188820		Thermistor   (Replaces: 2188820)			Immediately	$ 27.77
16	W10170104		Cover, Diffuser		Appelez-nous	-
17	W10171428		Cover, Air Diffuser		Appelez-nous	-
