SELECT A DIAGRAM

01 - Top And Cabinet Parts

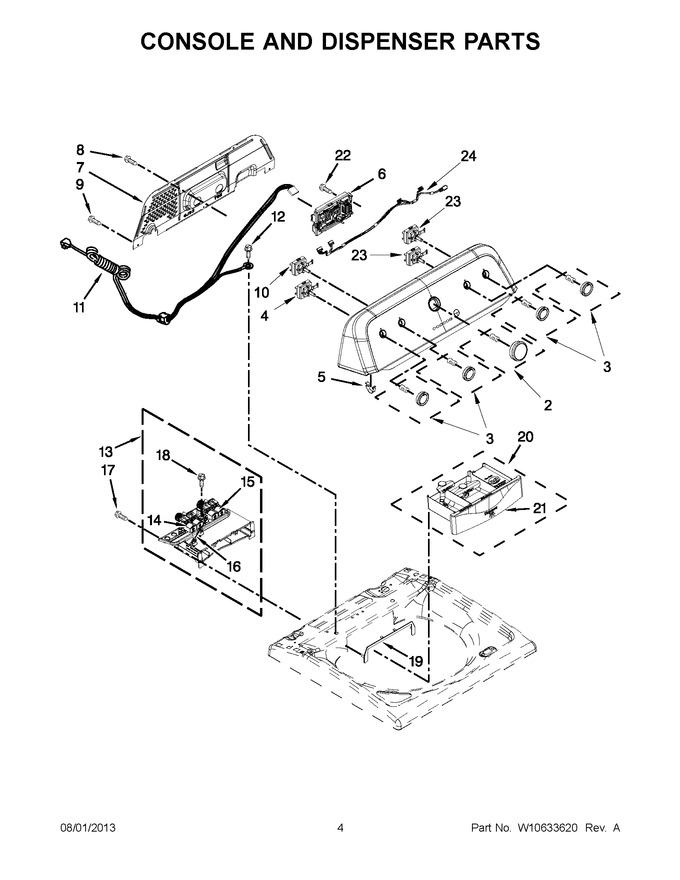

02 - Console And Dispenser Parts


03 - Basket And Tub Parts


04 - Gearcase, Motor And Pump Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10468419		Console		Appelez-nous	-
2	W11837899		Assembly, Timer Knob (grey)   (Replaces: W10558463)			Immediately	$ 18.83
3	W11837893		Assembly, Control Knob (grey)   (Replaces: W10562155)				$ 18.83
4	W10858095		Switch, Rotary Encoder (5 Position)   (Replaces: W10584423)				$ 203.09
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.59
6	W10581554		Control Unit Assembly, Machine And Motor				$ 438.42
7	W10420984		Panel, Console Rear Cover				$ 344.83
8	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
9	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 8.40
10	W10584422		Switch, Rotary Encoder (4 Position)			Immediately	$ 202.80
11	WPW10525192		Cord, Power   (Replaces: W10621620)				$ 163.02
12	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 8.20
13	WPW10601449		Housing Assembly   (Replaces: W10601449)				$ 291.71
14	W11168740		Valve, Cold Water Inlet   (Replaces: W10240949)			Immediately	$ 185.47
15	W11168743		Valve, Hot Water Inlet   (Replaces: W10240948)			Immediately	$ 135.98
16	W10601130		Harness, Valve		Appelez-nous	-
17	W11700520		Screw   (Replaces: 3400061)				$ 14.28
18	WPW10109200		Screw   (Replaces: 97787)			Immediately	$ 8.80
19	W10240946		Bezel, Dispenser				$ 23.60
20	WPW10658444		Drawer, Dispenser Assembly   (Replaces: W10240960)				$ 165.09
21	W10287478		Handle, Dispenser Drawer Facia		Appelez-nous	-
22	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 8.58
23	W11197418		Switch, Rotary Encoder (2 Position)   (Replaces: W10584420)				$ 213.09
24	W10579238		Harness, Upper				$ 27.35

    View Diagram in Separate Window       Print Part List
