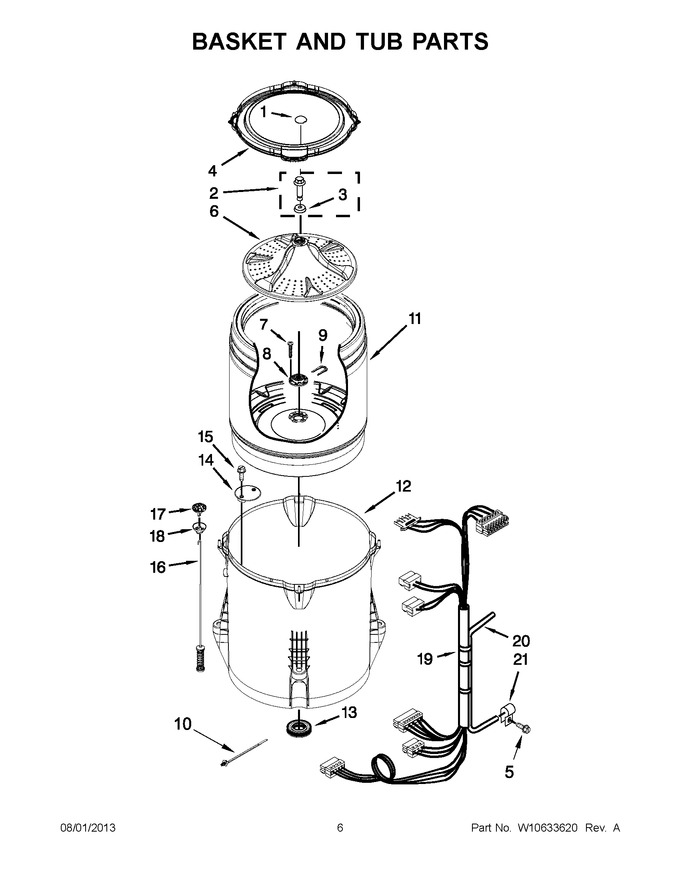

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10305251		Cap, Impeller   (Replaces: W10305251)			Immediately	$ 20.81
2	W10772621		Screw And Washer   (Replaces: W10003790)			Immediately	$ 4.77
3	WP3949550		Washer   (Replaces: 3949550)			Immediately	$ 9.98
4	WPW10556325		Tub Ring   (Replaces: W10556325)			Immediately	$ 183.74
5	WPW10109200		Screw   (Replaces: 8533943)			Immediately	$ 7.92
6	WPW10553968		Impeller (washplate)   (Replaces: W10553968)				$ 281.52
7	WP8533953		Screw   (Replaces: 8533953)			Immediately	$ 6.80
8	W10528947		Hub - Driven, Basket   (Replaces: W10396887)			Immediately	$ 40.16
9	W11385424		Retainer, Drive Block   (Replaces: W10402178)			Immediately	$ 11.67
10	WPW10339879		Tie, Cable   (Replaces: W10339879)				$ 7.47
11	W10521298		Basket Assembly				$ 437.41
12	W10324648		Tub   (Replaces: W10238301)				$ 325.67
13	W10324647		Seal, Tub   (Replaces: W10006371)			Immediately	$ 84.15
14	WPW10215093		Filter, Drain Pump   (Replaces: W10215093)				$ 58.73
15	WP8533928		Screw (stainless)   (Replaces: 8533928)			Immediately	$ 7.43
16	W10780044		Damper Assembly, Tub Suspension (set Of 4-includes Suspension Bushings And Suspension Balls)   (Replaces: W10555290)			Immediately	$ 136.12
17	W10560146		Ball, Suspension (set Of 4 - Includes Suspension Bushings)		Appelez-nous	-
18	W10256551		Bushing - Upper Suspension (set Of 4 - Includes Suspension Balls)		Appelez-nous	-
19	W10548663		Harness, Lower		Appelez-nous	-
20	WP353244		Switch, Pressure Hose   (Replaces: W10556728)			Immediately	$ 78.00
21	W10005430		Clamp, Cable			Immediately	$ 8.58
