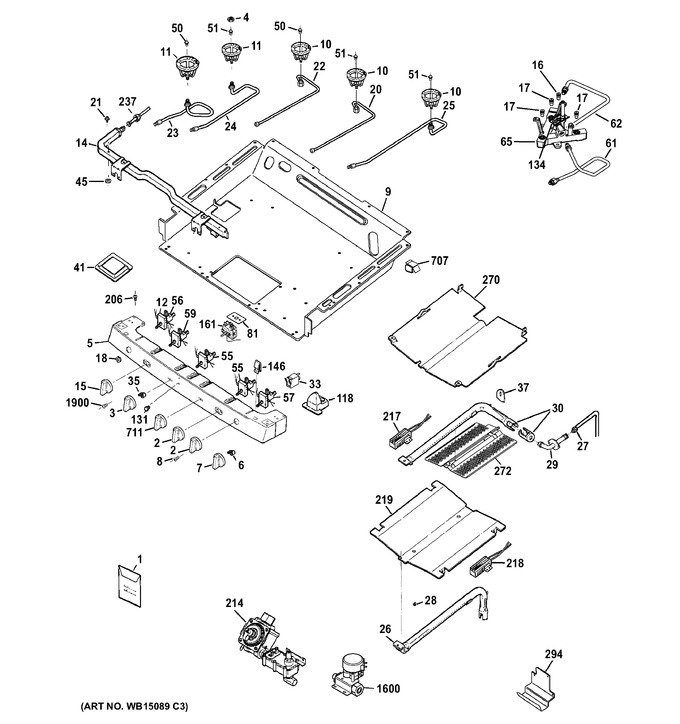

1 - Gas & Burner Parts


2 - Control Panel & Cooktop


3 - Body Parts


4 - Door & Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-10781		Pm Install Instructions		Appelez-nous	-
1	31-10775-1		Pm Install Instructions		Appelez-nous	-
1	WS01A00361		Kit Conversion Lp   (Replaces: WB28K10837)				$ 66.87
1	49-85183-3		Pm Owners And Install		Appelez-nous	-
1	31-14979		Pm Mini Manual		Appelez-nous	-
1	WG02A00015		Cleaner-ss   (Replaces: WB02T10111)				$ 23.22
2	WS01L05763		Knob Ge Profile Asm   (Replaces: WB03K10329)				$ 38.05
3	WB03K10343		Knob Ge Profile Asm		Appelez-nous	-
4	WS01A01130		Economic Nut   (Replaces: WB01K10037)			Immediately	$ 14.65
6	WB03K10340		Knob Locator		Appelez-nous	-
7	WB03K10342		Knob Ge Profile Asm		Appelez-nous	-
8	WB01K10029		Screw 832 1/8		Appelez-nous	-
9	WB63K10193		Box Burner Sp		Appelez-nous	-
10	WS01A00976		Ckt Bracket Small   (Replaces: WB02K10360)				$ 10.28
11	WS01A00977		Ckt Bracket Mdm & Lge   (Replaces: WB02K10361)				$ 13.04
12	WB18K10079		Switches & Harness		Appelez-nous	-
14	WB28K10729		Manifold Pipe Sq		Appelez-nous	-
15	WB03K10331		Knob Ge Profile Asm		Appelez-nous	-
16	WS01F01331		Orifice Spud Lp   (Replaces: WB28K10694)				$ 4.82
17	WS01F01330		Orifice Spud Lp   (Replaces: WB28K10693)			Immediately	$ 5.18
18	WB2K24		Cover Valve		Appelez-nous	-
20	WB28K10746		Ng Orifice & Tube Cntral		Appelez-nous	-
21	WB01K10066		Scr 8 Hd 10-32		Appelez-nous	-
21	WB01K10067		Scr 8 Hd 1/4 - 20		Appelez-nous	-
22	WB28K10728		Ng Orifice & Tube Rf		Appelez-nous	-
23	WB28K10727		Ng Orifice & Tube Lf		Appelez-nous	-
24	WB28K10726		Ng Orifice & Tube Lr		Appelez-nous	-
25	WB28K10737		Ng Orifice & Tube Rr		Appelez-nous	-
26	WS01F02195		Burner Bake   (Replaces: WB16K10081)				$ 48.33
27	WS01F02861		Tube Burner Supply   (Replaces: WB28K10168)				$ 33.92
28	WB1K50		Screw Mtg Igniter		Appelez-nous	-
29	WB28K10798		Elbow Dual Cavity		Appelez-nous	-
30	WB16K10086		Burner Broil		Appelez-nous	-
33	WS01F01702		Light Indicator Pilot   (Replaces: WB25K10010)				$ 17.15
35	WB03K10344		Knob Locator		Appelez-nous	-
37	WB34K14		Cover Igniter		Appelez-nous	-
41	WB63K10063		Cover Burner Box		Appelez-nous	-
45	WB1X1378		Flat Washer-m4		Appelez-nous	-
50	WS01F01389		Orifice-lp Med Lf 11000   (Replaces: WB28K10023)				$ 3.57
55	WS01F03796		Valve Burner 270 Rr   (Replaces: WB21K10096)				$ 38.59
56	WS01F03799		Valve Burner 270 Lf   (Replaces: WB21K10119)				$ 60.12
57	WB21K10141		Valve Dual		Appelez-nous	-
59	WB21K10142		Valve Dual Bridge		Appelez-nous	-
61	WS01F03563		Tube Main Dualvalve   (Replaces: WB28K10723)				$ 15.45
62	WB28K10724		Tube Simmer Dualvalve		Appelez-nous	-
65	WB28K10784		Inject Top Burner Asm		Appelez-nous	-
81	WB37K10012		Cover Thermostat		Appelez-nous	-
118	WB14K10005		Pin Locator		Appelez-nous	-
131	WS01L03789		Lens   (Replaces: WB25K10009)			Immediately	$ 3.57
146	WB2K52		Clip Rangetop		Appelez-nous	-
161	WS01F02657		Thermostat   (Replaces: WB20K10017)			Immediately	$ 131.62
214	WB19K10079		Valve Control Asm Nor. D		Appelez-nous	-
217	WS01F07248		Igniter Glowbar Bake   (Replaces: WB13K10020)			Immediately	$ 97.29
218	WB13K10026		Igniter Glowbar		Appelez-nous	-
219	WB49K10037		Deflector Oven		Appelez-nous	-
237	WB28K10428		Tube Manifold Supply		Appelez-nous	-
270	WB49K10025		Deflector		Appelez-nous	-
272	WB49K10026		Shield Broil		Appelez-nous	-
294	WB63K10054		Cover Terminals		Appelez-nous	-
707	WB02K10267		Clip Wire		Appelez-nous	-
711	WB03K10335		Knob Ge Profile Asm		Appelez-nous	-
1600	WS01F03623		Valve Lockout   (Replaces: WB19K10059)				$ 120.41
1900	WS01A01257		Screw   (Replaces: WB01T10020)				$ 3.57
