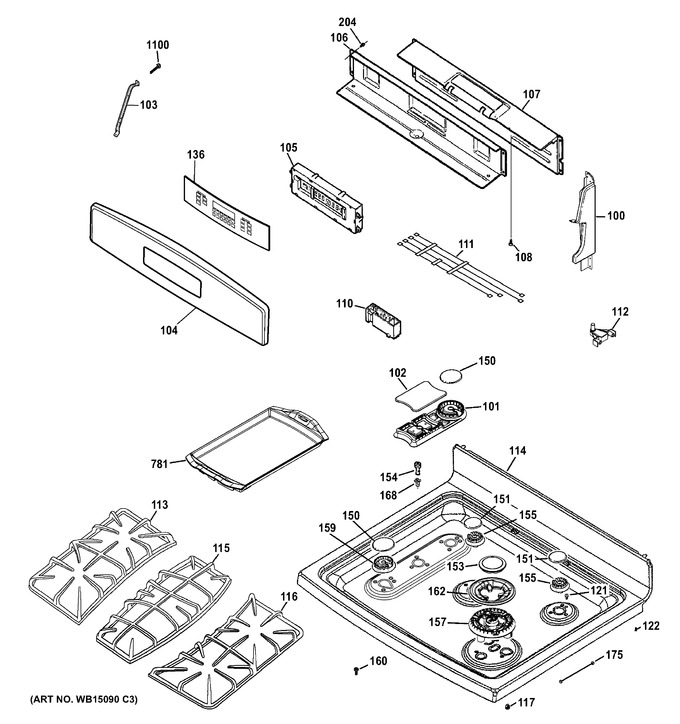

1 - Gas & Burner Parts
2 - Control Panel & Cooktop
3 - Body Parts
4 - Door & Drawer Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 100 | WB07K10242 | End Support Lf |
|
- | |||||
| 100 | WB07K10241 | End Support Rt |
|
- | |||||
| 101 | WB29K10047 | Dual Section Burner |
|
- | |||||
| 102 | WB29K10046 | Dual Burner Cap |
|
- | |||||
| 103 | WB02K10152 | Bracket Control |
|
- | |||||
| 104 | WB36K10648 | Trim Control |
|
- | |||||
| 105 | WB27K10380 | Control Ovn (erc3hp) |
|
- | |||||
| 106 | WB34K10115 | Cover Back Upper |
|
- | |||||
| 107 | WB34K10129 | Cover Back Lower |
|
- | |||||
| 110 | WB13K10033 | Spark Module 6+0 |
|
- | |||||
| 111 | WB18K10037 | Electrodes & Harness Hv |
|
$ 78.10 | |||||
| 112 | WB14K10003 | Hinge Range Top |
|
- | |||||
| 113 | WS01L05369 | Grate Cast (Replaces: WB31K10250) |
|
$ 178.94 | |||||
| 114 | WS01L01133 | Rangetop & Brkt Asm (Replaces: WB62K10140) |
|
$ 124.31 | |||||
| 115 | WS01L05409 | Grate Cast Mid (Replaces: WB31K10248) |
|
$ 106.02 | |||||
| 116 | WB31K10251 | Grate Cast |
|
- | |||||
| 117 | WS01A00635 | Pin Locator (Replaces: WB14K10004) |
|
Immediately | $ 3.57 | ||||
| 121 | WB1K78 | Screw 12-14, 5/8s |
|
- | |||||
| 121 | WB1K1 | Screw |
|
- | |||||
| 122 | WS01A02448 | Ckt Screw (Replaces: WB01K10106) |
|
Immediately | $ 4.07 | ||||
| 136 | WS01L08173 | Glass And Board Asm (Replaces: WB27K10388) |
|
$ 165.69 | |||||
| 150 | WS01F02536 | Cap Burner Med (Replaces: WB29K10023) |
|
Immediately | $ 15.72 | ||||
| 151 | WS01F02532 | Cap Burner Small (Replaces: WB29K10022) |
|
Immediately | $ 24.30 | ||||
| 153 | WG02F04819 | Burner Cap Central (Replaces: WB29K10045) |
|
Immediately | $ 155.78 | ||||
| 154 | WB13K10014 | Electrode Top |
|
- | |||||
| 155 | WS01F02309 | Small Burner V 5k (Replaces: WB16K10070) |
|
Immediately | $ 24.21 | ||||
| 157 | WS01F01232 | Tri Ring Burner Asm (Replaces: WB16K10079) |
|
Immediately | $ 361.36 | ||||
| 159 | WS01F02306 | Burner Medium (9500) (Replaces: WB16K10055) |
|
Immediately | $ 82.59 | ||||
| 160 | WS01A01008 | Screw Trilobular (Replaces: WB01K10110) |
|
Immediately | $ 6.45 | ||||
| 162 | WS01F02546 | Burner Cap Outer (Replaces: WB29K10044) |
|
Immediately | $ 230.06 | ||||
| 168 | WS01F03947 | Clip Electrode (Replaces: WB01K10114) |
|
$ 4.20 | |||||
| 175 | WB18K10056 | Harness Ground |
|
- | |||||
| 204 | WZ04X0345 | Screw 8-18x5/8 Hxw |
|
- | |||||
| 204 | WS01A00654 | Screw (blk) (Replaces: WB1K42) |
|
$ 14.29 | |||||
| 204 | WS01A00657 | Screw (Replaces: WB01K10111) |
|
$ 4.20 | |||||
| 204 | WB01K10113 | Screw 8-18 Ab 3/16 |
|
- | |||||
| 781 | WB31K10249 | Griddle Bridge |
|
- |
