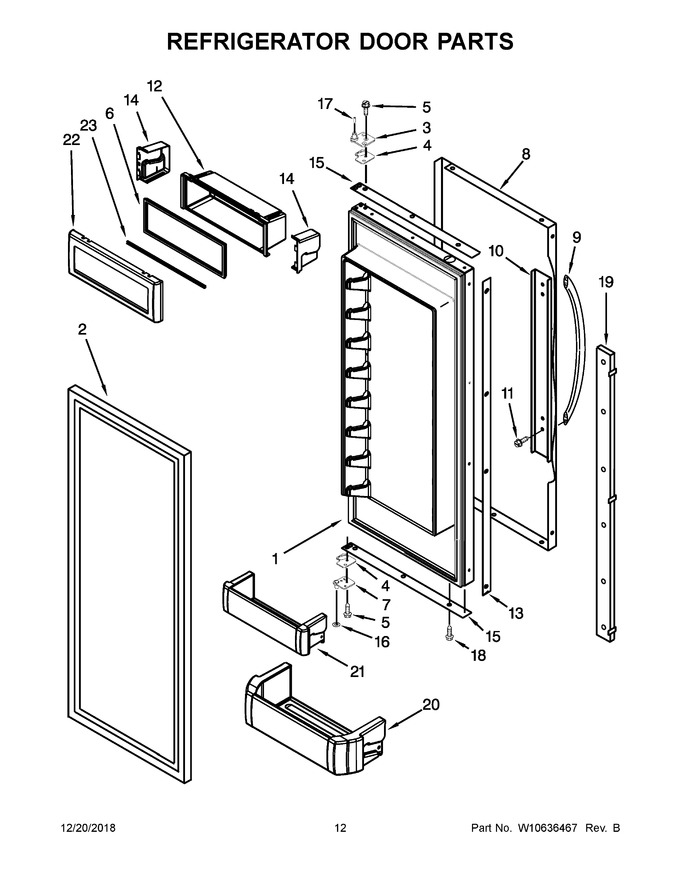

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10192510		Door, Refrigerator (left Hand)		Appelez-nous	-
2	8201809		Gasket, Door   (Replaces: W10694220)			Immediately	$ 286.71
3	W11673500		Assembly, Hinge (top)   (Replaces: W10485980)			Immediately	$ 117.33
4	W11673500		Spacer, Door Hinge Bottom   (Replaces: 2316804)			Immediately	$ 117.33
5	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 7.77
6	WP2222981		Gasket, Utility Bin   (Replaces: 2222981)				$ 192.96
7	W10273369		Assembly, Bottom Hinge (left Hand)				$ 37.09
8	W10523736		Skin, Door (stainless)		Appelez-nous	-
9	WP2316868		Screw (stainless)   (Replaces: 2316868)			Immediately	$ 253.29
10	W10127710		Plate, Handle Door			Immediately	$ 23.35
11	WP308544		Screw   (Replaces: 308544)			Immediately	$ 7.47
12	WPW10323035		Bin, Utility Center   (Replaces: W10323035)				$ 76.44
13	2314068		Spacer, Door Edge (handle Side)		Appelez-nous	-
14	WPW10323173		Utility Bin Endcap (left Hand)   (Replaces: W10323173)				$ 7.74
15	2309204		Spacer, Door Edge (top / Bottom)		Appelez-nous	-
16	WP2006346		Washer, Extension Arm   (Replaces: 2006346)			Immediately	$ 10.58
17	W11500952		Bushing, Door Stop   (Replaces: 2316760)			Immediately	$ 31.27
18	WP8281250		Screw (stainless)   (Replaces: 8281250)				$ 10.28
19	2307938		Assembly, Mullion				$ 144.52
20	W10323746		Bin, Gallon Door				$ 97.42
21	W10323598		Bin, Door				$ 94.31
22	WPW10131132		Door, Utility Bin   (Replaces: W10131132)				$ 68.23
23	2222795		Rail, Utility Lid				$ 75.70
14A	WPW10323172		Utility Bin Endcap (right Hand)   (Replaces: W10323172)				$ 7.74
1A	W10192508		Door, Refrigerator (right Hand)		Appelez-nous	-
7A	W10273367		Assembly, Bottom Hinge (right Hand)				$ 37.14
