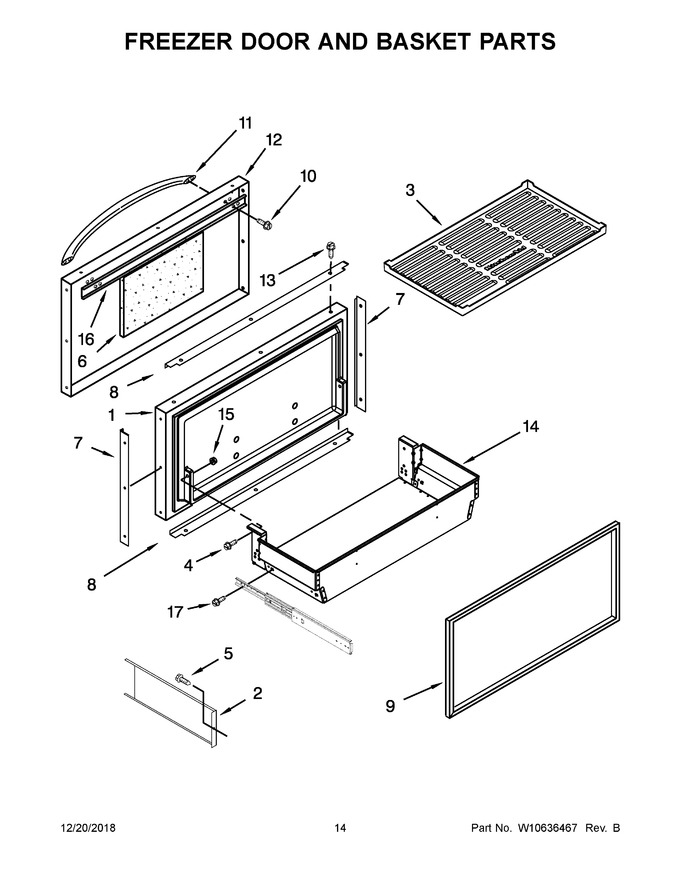

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10258747		Freezer Door		Appelez-nous	-
2	2317101		Divider, Basket		Appelez-nous	-
3	W10665413		Mat, Basket   (Replaces: 2314024)				$ 255.29
4	W10135775		Screw				$ 13.44
5	WP488234		Screw   (Replaces: W10135792)				$ 6.37
6	2309219		Filler, Foam				$ 249.86
7	W10340330		Spacer, Door Edge (side)		Appelez-nous	-
8	2309221		Spacer, Door Edge (top And Bottom)		Appelez-nous	-
9	WPW10192907		Door Gasket, Magnetic   (Replaces: W10192907)			Immediately	$ 326.78
10	WP308544		Screw   (Replaces: 308544)			Immediately	$ 7.47
11	WP2316868		Handle, Door (stainless)   (Replaces: 2316868)			Immediately	$ 253.29
12	W10523755		Skin, Door (stainless)		Appelez-nous	-
13	WP8281250		Screw (stainless)   (Replaces: 8281250)				$ 10.28
14	W10258183		Assembly, Freezer Basket		Appelez-nous	-
15	WP2207454		Nut, Hex   (Replaces: 2207454)				$ 10.24
16	W10127710		Plate, Handle Door			Immediately	$ 23.35
17	W10109030		Screw				$ 13.82
