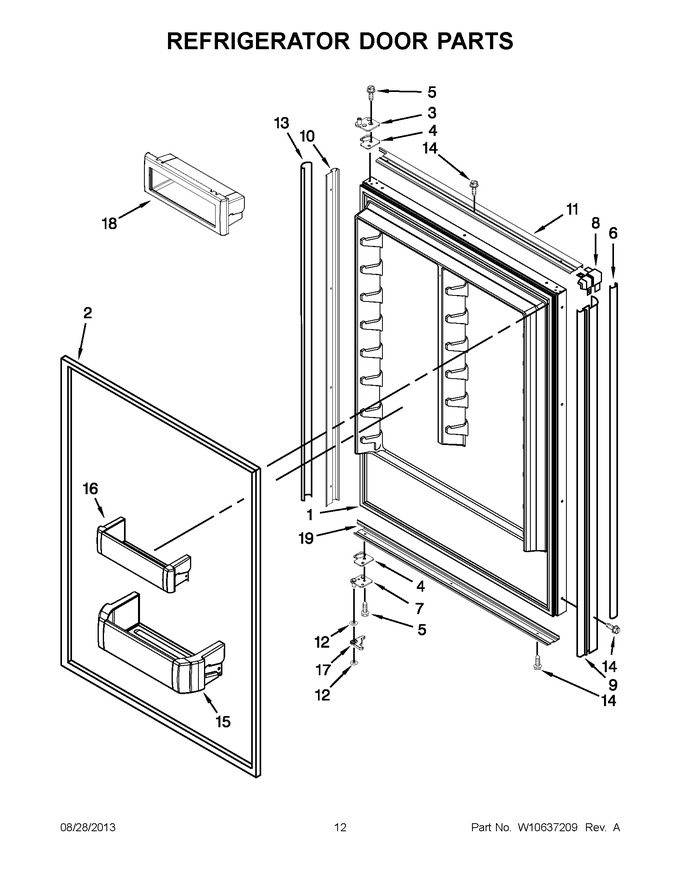

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10192039 | Door, Refrigerator |
|
- | |||||
| 2 | 2302709 | Gasket, Door (Replaces: 2300184) |
|
$ 295.47 | |||||
| 3 | W10484480 | Hinge Assembly, Top |
|
$ 57.64 | |||||
| 4 | W11673500 | Spacer, Door Hinge Bottom (Replaces: 2316804) |
|
Immediately | $ 117.33 | ||||
| 5 | W11474472 | Screw (Replaces: W10162602) |
|
Immediately | $ 7.77 | ||||
| 6 | 2266942S | Cover, Hinge Trim |
|
$ 97.89 | |||||
| 7 | 2256281 | Bottom Hinge Assembly |
|
$ 77.40 | |||||
| 8 | 2207457 | Trim, Corner |
|
$ 51.41 | |||||
| 9 | 2309476 | Trim, Door (hinge Side) |
|
- | |||||
| 10 | 2309475 | Trim, Door (handle Side) |
|
$ 305.29 | |||||
| 11 | 2309473 | Trim, Door (top) |
|
$ 260.00 | |||||
| 12 | WP2006346 | Washer, Extension Arm (Replaces: 2006346) |
|
Immediately | $ 10.58 | ||||
| 13 | 2209084S | Cover-trim Handle Side (rc) |
|
$ 123.06 | |||||
| 14 | WP8281250 | Screw (stainless) (Replaces: 8281250) |
|
$ 10.28 | |||||
| 15 | W10323749 | Bin, Gallon |
|
$ 123.16 | |||||
| 16 | W11590561 | Bin, Shallow (Replaces: W10323603) |
|
$ 84.81 | |||||
| 17 | W10188434 | Cover, Bottom Gap |
|
$ 61.16 | |||||
| 18 | W10323044 | Assembly, Utility Bin |
|
$ 119.32 | |||||
| 19 | 2309474 | Trim, Door (bottom) |
|
$ 234.22 |
