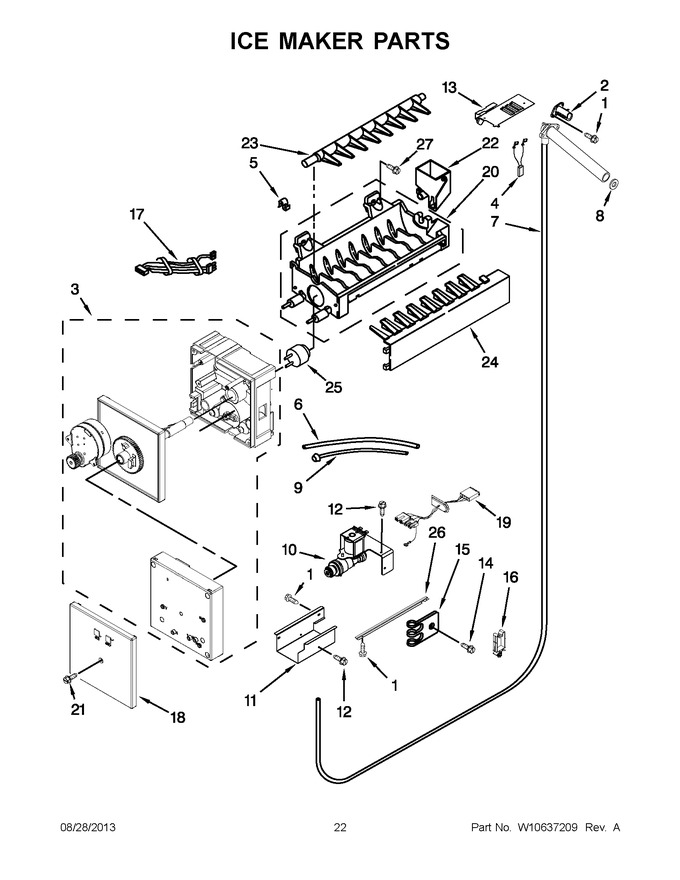

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11624204 | Screw (Replaces: 486194) |
|
$ 13.25 | |||||
| 2 | WP2221240 | Heater, Fill Tube (Replaces: 2221240) |
|
$ 185.92 | |||||
| 3 | 8201515 | Assembly, Module And Motor (Replaces: 626691) |
|
Immediately | $ 143.80 | ||||
| 4 | W10482373 | Wire Assembly, Fill Tube Heater |
|
$ 112.59 | |||||
| 5 | WP628379 | Clip, Thermal Fuse (Replaces: 628379) |
|
$ 9.99 | |||||
| 6 | W11565275 | Tube, Filter Inlet (Replaces: W10296807) |
|
$ 61.10 | |||||
| 7 | 2317847 | Tube Assembly, Water Inlet |
|
$ 77.72 | |||||
| 8 | WP1106508 | Gasket, Seal (Replaces: 1106508) |
|
Immediately | $ 9.39 | ||||
| 9 | W11533506 | Tube, Filter Outlet (Replaces: W10437853) |
|
$ 29.84 | |||||
| 10 | WP2307650 | Valve, Solenoid (Replaces: 2307650) |
|
Immediately | $ 228.29 | ||||
| 11 | W10129653 | Shield, Valve Electrical |
|
- | |||||
| 12 | 00487294 | Screw (Replaces: 487294) |
|
$ 157.58 | |||||
| 13 | WP2221231 | Shield, Heat (Replaces: 2221231) |
|
$ 80.40 | |||||
| 14 | WP489464 | Screw (Replaces: W10001250) |
|
Immediately | $ 7.54 | ||||
| 15 | WP488366 | Clip, Water Tube (Replaces: 2208136) |
|
$ 10.73 | |||||
| 16 | W10129069 | Clip, Tube |
|
- | |||||
| 17 | W10508673 | Wire Assembly, Ice Maker |
|
$ 111.27 | |||||
| 18 | WPW10289690 | Cover, Icemaker (Replaces: W10289690) |
|
Immediately | $ 7.94 | ||||
| 19 | W10279393 | Wire Assembly (water Valve) |
|
$ 141.36 | |||||
| 20 | WPW10190929 | Assembly, Mold And Heater (Replaces: W10122527) |
|
$ 210.17 | |||||
| 21 | WP3395530 | Screw (Replaces: 697773) |
|
$ 7.71 | |||||
| 22 | W11676540 | Cup, Water Fill (Replaces: W10435665) |
|
$ 20.39 | |||||
| 23 | WP627843 | Ejector (Replaces: 627843) |
|
$ 79.00 | |||||
| 24 | WPW10122563 | Stripper, Ice (Replaces: W10122563) |
|
$ 89.48 | |||||
| 25 | WP627985 | Thermostat (Replaces: 627985) |
|
$ 103.18 | |||||
| 26 | 2320559 | Support, Valve |
|
$ 79.91 | |||||
| 27 | W10141596 | Screw |
|
$ 8.30 | |||||
| 100 | WPW10277450 | Complete Icemaker Assembly (Replaces: W10277450) |
|
Immediately | $ 253.31 |
