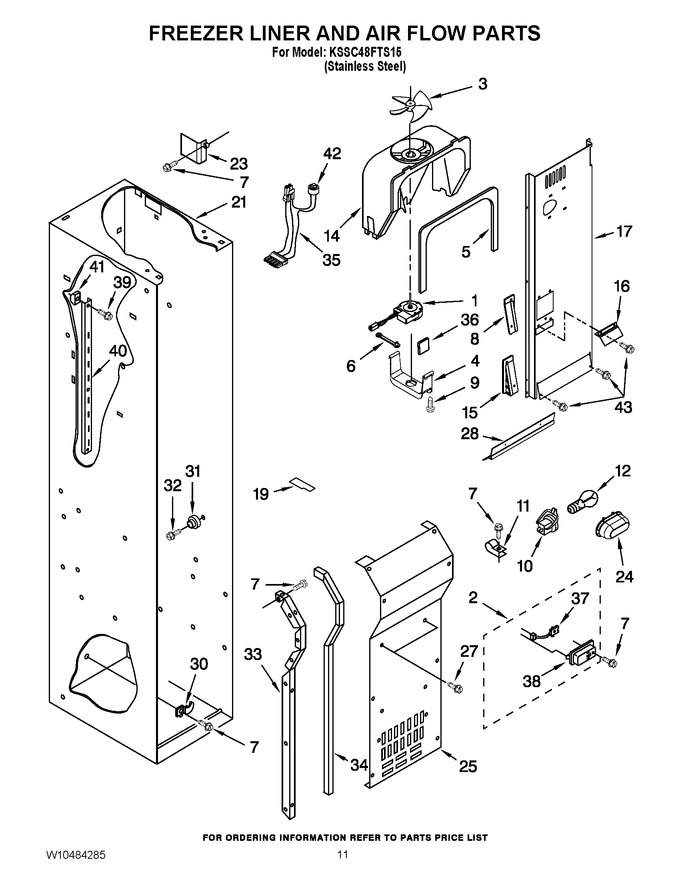

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2259385 | Fan Motor |
|
$ 84.74 | |||||
| 2 | WP2317844 | Thermistor Assy (Replaces: 2317844) |
|
$ 10.24 | |||||
| 3 | WP2169142 | Fan Blade (Replaces: 2169142) |
|
Immediately | $ 39.07 | ||||
| 4 | 8201663 | Retainer, Fan Motor (Replaces: 2223733) |
|
$ 143.34 | |||||
| 5 | WP2302817 | Gasket, Cover (Replaces: 2302817) |
|
$ 90.94 | |||||
| 6 | W11669856 | Grommet (Replaces: W10449920) |
|
Immediately | $ 14.34 | ||||
| 7 | W11624204 | Screw (Replaces: 486194) |
|
$ 13.25 | |||||
| 8 | 2259464 | Wedge, Air Duct |
|
$ 85.84 | |||||
| 9 | WPW10141604 | Screw, Ground (Replaces: W10141604) |
|
$ 7.97 | |||||
| 10 | WPW10191429 | Socket, Light (Replaces: W10191429) |
|
$ 7.92 | |||||
| 11 | W10833902 | Clamp, Nylon (Replaces: 2221070) |
|
$ 10.39 | |||||
| 12 | WPA3073101 | Light Bulb (Replaces: 2326255) |
|
Immediately | $ 11.45 | ||||
| 14 | WP2182120 | Scroll, Fan (Replaces: 2182120) |
|
Immediately | $ 105.81 | ||||
| 15 | 2259465 | Wedge, Air Duct |
|
- | |||||
| 16 | 2266801 | Deflector, Air |
|
- | |||||
| 17 | 2307778 | Air Duct |
|
- | |||||
| 19 | 2209066 | Block, Fan Scroll (lh) |
|
- | |||||
| 19 | 2209482 | Block, Fan Scroll (rh) |
|
- | |||||
| 21 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 23 | 2259025 | Cover, Air Outlet |
|
$ 83.12 | |||||
| 24 | 2307751 | Light Shield |
|
$ 17.27 | |||||
| 25 | W10428001 | Cover, Evaporator |
|
- | |||||
| 27 | WP8281163 | Screw (Replaces: 8281163) |
|
Immediately | $ 9.63 | ||||
| 28 | 2302851 | Support, Air Duct |
|
- | |||||
| 30 | 1112260 | Support, Evaporator |
|
- | |||||
| 31 | WP2196483 | Shelf, Stud (Replaces: 2196205) |
|
$ 9.78 | |||||
| 32 | W10191952 | Screw |
|
$ 5.65 | |||||
| 33 | 2221107 | Evaporator, Cover Rail (lh) |
|
- | |||||
| 33 | 2259355 | Evaporator, Cover Rail (rh) |
|
$ 113.89 | |||||
| 34 | 2220904 | Gasket Evaporator Cover |
|
$ 21.20 | |||||
| 35 | W10139189 | Harness, Evap Fan (includes Item 42) |
|
$ 151.89 | |||||
| 36 | W10267707 | Insulation |
|
- | |||||
| 37 | WP2188820 | Thermistor (Replaces: 2188820) |
|
Immediately | $ 27.77 | ||||
| 38 | WP2317844 | Cover, Thermistor (Replaces: 2317105) |
|
$ 10.24 | |||||
| 39 | 2006475 | Screw |
|
- | |||||
| 40 | WP2259032 | Ladder, Shelf (Replaces: 2259032) |
|
$ 72.92 | |||||
| 41 | 2259445 | Support, Screw |
|
- | |||||
| 42 | WPW10160570 | Defrost, Bi-metal (Replaces: W10160570) |
|
Immediately | $ 125.08 | ||||
| 43 | WPW10142283 | Screw (Replaces: W10142283) |
|
$ 9.30 |
