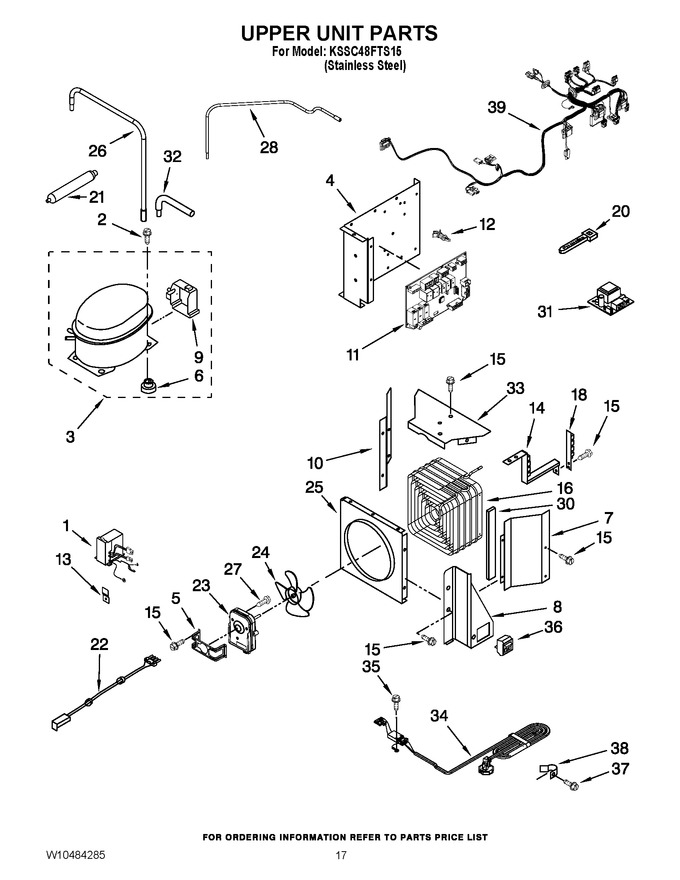

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10629033 | Inverter Box (Replaces: W10133449) |
|
Immediately | $ 399.11 | ||||
| 2 | 876811 | Screw, Compressor Mounting (4) (Replaces: 489373) |
|
$ 7.01 | |||||
| 3 | W10841139 | Compressor (includes Items 6 & 9)(also Order 876765 Tube Kit) (Replaces: W10173296) |
|
Immediately | $ 454.96 | ||||
| 4 | WPW10321056 | Housing, Control Board (Replaces: W10321056) |
|
$ 113.94 | |||||
| 5 | W10414681 | Bracket, Fan Motor |
|
$ 71.58 | |||||
| 6 | 876811 | Grommet, Mounting (Replaces: 1100826) |
|
$ 7.01 | |||||
| 7 | W10415668 | Support, Condenser (right) |
|
- | |||||
| 8 | W10321055 | Bracket, Switch |
|
- | |||||
| 9 | 2215676 | Terminal Cover |
|
$ 84.92 | |||||
| 10 | W10415666 | Support, Condenser (left) |
|
- | |||||
| 11 | WPW10427079 | Control Board (Replaces: W10427079) |
|
$ 379.13 | |||||
| 12 | WP2203075 | Spacer (Replaces: 2203075) |
|
Immediately | $ 16.93 | ||||
| 13 | 2256328 | Bracket, Inverter Box |
|
- | |||||
| 14 | 2317031 | Bracket, Vibration Condenser |
|
- | |||||
| 15 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 7.56 | ||||
| 16 | 2307998 | Condenser |
|
$ 459.05 | |||||
| 18 | 2317030 | Arm, Vibration Condenser |
|
- | |||||
| 20 | WPW10339879 | Wire Tie (Replaces: 2155774) |
|
$ 7.47 | |||||
| 21 | WPW10143759 | Drier (Replaces: W10175593) |
|
Immediately | $ 27.70 | ||||
| 22 | 2310207 | Wire Assembly (condenser Fan) |
|
- | |||||
| 23 | W11578915 | Motor, Fan (Replaces: 2188875) |
|
Immediately | $ 77.99 | ||||
| 24 | WPW10139483 | Blade, Fan (Replaces: W10139483) |
|
$ 89.84 | |||||
| 25 | W10415670 | Orifice, Fan |
|
- | |||||
| 26 | 2307566 | Tube, Drier Transition |
|
$ 16.06 | |||||
| 27 | WP8533993 | Screw (Replaces: 8533993) |
|
$ 10.09 | |||||
| 28 | W10234133 | Tube, Heat Loop Transition |
|
- | |||||
| 30 | 2309432 | Gasket, Condenser |
|
- | |||||
| 31 | WP2259350 | Power Supply, Ingredient Care Center (Replaces: 2259350) |
|
Immediately | $ 130.82 | ||||
| 32 | W10528578 | Process, Tube (Replaces: 2194319) |
|
$ 35.84 | |||||
| 33 | 2309000 | Cover, Condenser |
|
- | |||||
| 34 | WP2310251 | Service Cord (Replaces: 2310251) |
|
$ 80.05 | |||||
| 35 | W11624204 | Screw (Replaces: 486194) |
|
$ 13.25 | |||||
| 36 | WP2266802 | Switch, Power Disconnect (Replaces: 2266802) |
|
$ 98.17 | |||||
| 37 | 00487294 | Screw, Ground (Replaces: 487294) |
|
$ 157.58 | |||||
| 38 | 549193 | Clamp, Cord |
|
$ 12.65 | |||||
| 39 | W10427089 | Wiring Harness, Unit Compartment |
|
- | |||||
| NI | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 99.46 | ||||
| NI | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 121.04 | ||||
| NI | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 16.79 | |||||
| NI | 978028 | Valve, Access (1/2``) |
|
- | |||||
| NI | 978029 | Valve, Access (5/8``) |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access (3/4``) |
|
$ 123.53 | |||||
| NI | 876764 | Valve, Access (3/16``) |
|
Immediately | $ 86.33 | ||||
| NI | N/P | Refrigerant Charge (7.75 Oz. (r-134a)) |
|
- |
