01 - Cooktop Parts
02 - Control Panel Parts

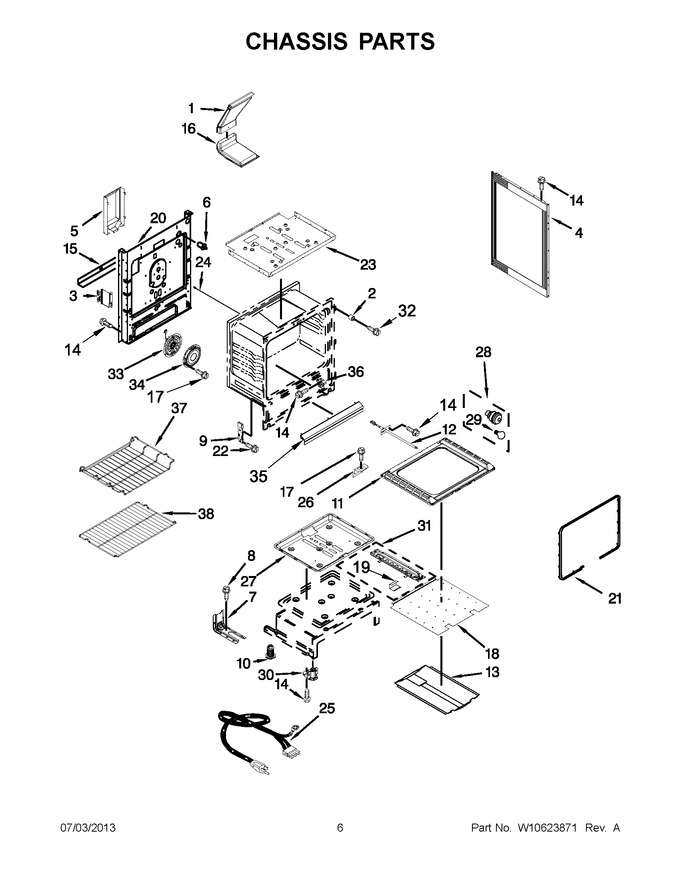

03 - Chassis Parts
04 - Manifold Parts
05 - Door Parts
06 - Drawer & Broiler Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10314347 | Assembly, Flue |
|
$ 272.28 | |||||
| 2 | W10877054 | Spacer - Door (Replaces: 9758701) |
|
Immediately | $ 50.45 | ||||
| 3 | W10273002 | Bracket, Oven Support |
|
$ 68.71 | |||||
| 4 | W11730303 | Panel, Side (black) (Replaces: W10322770) |
|
Immediately | $ 160.65 | ||||
| 5 | W10158780 | Cover, Fan |
|
$ 106.63 | |||||
| 6 | WP9757262 | Switch, Door (Replaces: 9757262) |
|
Immediately | $ 146.71 | ||||
| 7 | W11839019 | Bracket, Anti-tip (Replaces: W10306542) |
|
Immediately | $ 25.69 | ||||
| 8 | WP7101P485-60 | Screw, Anti-tip (Replaces: 7101P485-60) |
|
$ 27.65 | |||||
| 9 | W10647259 | Receiver, Hinge (Replaces: W10289077) |
|
Immediately | $ 8.39 | ||||
| 10 | WPW10058460 | Foot, Leveling (Replaces: W10058460) |
|
Immediately | $ 7.42 | ||||
| 11 | WPW10211368 | Bottom, Oven (Replaces: W10211368) |
|
Immediately | $ 303.98 | ||||
| 12 | WPW10181986 | Sensor, Oven (Replaces: W10181986) |
|
Immediately | $ 96.15 | ||||
| 13 | W11775243 | Baffle, Burner (Replaces: 3601P356-45) |
|
$ 82.32 | |||||
| 14 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 15 | W10435470 | Brace, Main Back |
|
$ 73.57 | |||||
| 16 | W11243157 | Assembly, Flue (upper) (Replaces: W10311326) |
|
$ 333.32 | |||||
| 17 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 13.25 | ||||
| 18 | W10323077 | Diffuser, Flame |
|
$ 253.60 | |||||
| 19 | W10137382 | Clip, Glass |
|
Immediately | $ 43.58 | ||||
| 20 | W10273005 | Back, Main |
|
- | |||||
| 21 | W11562931 | Gasket, Door (Replaces: W10162385) |
|
Immediately | $ 78.98 | ||||
| 22 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.43 | ||||
| 23 | WPW10273195 | Shield, Heat (Replaces: W10273195) |
|
$ 170.87 | |||||
| 24 | W11370463 | Rod, Door Switch (Replaces: W10273192) |
|
Immediately | $ 60.18 | ||||
| 25 | W11582239 | Cord, Power (Replaces: 9757891) |
|
$ 15.83 | |||||
| 26 | W10035900 | Support, Oven Bottom |
|
$ 12.92 | |||||
| 27 | W11379356 | Pan, Bake (Replaces: W10273204) |
|
$ 72.02 | |||||
| 28 | W11594027 | Assembly, Light (Replaces: W10454648) |
|
Immediately | $ 78.31 | ||||
| 29 | 8009 | Bulb, Oven Light (Replaces: 311255) |
|
Immediately | $ 16.80 | ||||
| 30 | WPW10341186 | Assembly, Front Foot (Replaces: W10341186) |
|
Immediately | $ 29.33 | ||||
| 31 | W11818353 | Assembly, Base Rail Right (Replaces: W10390007) |
|
$ 56.39 | |||||
| 31 | W11818353 | Assembly, Base Rail Left (Replaces: W10390008) |
|
$ 56.39 | |||||
| 32 | W11169708 | Screw (Replaces: 3196560) |
|
$ 13.36 | |||||
| 33 | W11043837 | Motor, Fan (convection) (Replaces: W10389553) |
|
Immediately | $ 267.54 | ||||
| 34 | WPW10346154 | Cover, Convection (Replaces: W10346154) |
|
Immediately | $ 69.90 | ||||
| 35 | W10501599 | Clip, Front Frame Cover |
|
$ 230.36 | |||||
| 36 | W10763667 | Glide, Drawer Front (Replaces: W10317898) |
|
Immediately | $ 96.91 | ||||
| 37 | W11256463 | Rack, Oven (gull Wing) (Replaces: W10289145) |
|
Immediately | $ 119.25 | ||||
| 38 | W11520287 | Rack, Oven (Replaces: W10179196) |
|
Immediately | $ 52.19 | ||||
| NI | W11688566 | Insulation, Wrap Gas (Replaces: W10526208) |
|
$ 111.24 | |||||
| NI | W11688362 | Insulation, Main Back (Replaces: W10526209) |
|
$ 113.29 | |||||
| NI | 4820F015-59 | Insulation Strap |
|
$ 8.81 |
