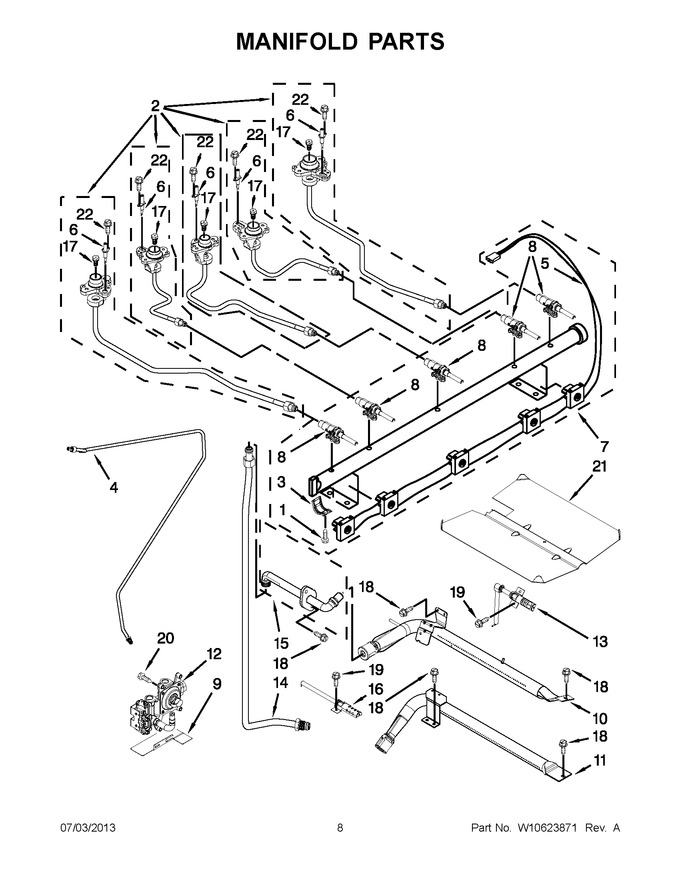

04 - Manifold Parts


05 - Door Parts


06 - Drawer & Broiler Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10295997		Screw, Valve				$ 6.59
2	W10474170		Assembly, Orifice Holder (center (8k))		Appelez-nous	-
2	W10473935		Assembly, Orifice Holder (left Front (17k))				$ 100.68
2	W11700294		Assembly, Orifice Holder (left Rear (9.5k))   (Replaces: W10473932)				$ 75.79
2	W11700304		Assembly, Orifice Holder (right Rear (5k))   (Replaces: W10474162)				$ 73.01
2	W11234417		Assembly, Orifice Holder (right Front (15k))   (Replaces: W10474166)				$ 90.12
3	W10949105		Bracket, Saddle Valve   (Replaces: W10295996)				$ 20.48
4	W10510125		Tubing, Main Supply				$ 196.79
5	W10413869		Harness, Igniter Includes Switches				$ 185.80
6	WPW10515459		Electrode   (Replaces: W10515459)			Immediately	$ 39.39
7	WPW10413871		Assembly, Manifold   (Replaces: W10413871)				$ 270.57
8	WPW10247744		Valve, Gas (5k) (right Rear)   (Replaces: W10247744)				$ 252.11
8	WPW10279614		Valve, Gas (9.5k) (left Rear And Center)   (Replaces: W10279614)				$ 251.83
8	WPW10279615		Valve, Gas (15k) (left Front And Right Front)   (Replaces: W10279615)				$ 233.02
9	W10224921		Bracket, Aegis		Appelez-nous	-
10	W11676566		Burner, Broiler   (Replaces: W10439242)				$ 85.48
11	W10764654		Burner, Bake   (Replaces: W10439243)			Immediately	$ 82.49
12	WPW10602004		Valve, Gas Aegis   (Replaces: W10602004)				$ 373.68
13	WPW10324262		Igniter, Bake   (Replaces: W10324262)			Immediately	$ 98.85
14	W10306050		Tubing (broiler Fitting To Valve)				$ 170.84
15	W10583216		Fitting, Broiler   (Replaces: W10319134)				$ 86.27
16	WPW10333842		Electrode, Broil   (Replaces: W10333842)			Immediately	$ 93.71
17	WPW10170506		Orifice (5k) (right Rear)   (Replaces: W10170506)				$ 88.07
17	WPW10170508		Orifice (9.5k) (left Rear)   (Replaces: W10170508)				$ 85.69
17	WPW10170507		Orifice (8k) (center)   (Replaces: W10170507)				$ 88.07
17	W10170511		Orifice (17k) (left Front)				$ 42.01
17	WPW10347414		Orifice (15k) (right Front)   (Replaces: W10347414)				$ 81.45
18	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 13.25
19	W11684507		Screw   (Replaces: 3196385)				$ 12.84
20	WP3400016		Screw   (Replaces: 3400016)				$ 7.55
21	3601P336-45		Baffle, Broil Burner				$ 204.38
22	WP8273062		Screw   (Replaces: 8273062)			Immediately	$ 7.12
NI	N/P		Following Parts Not .illustrated		Appelez-nous	-
NI	WPW10170516		Lp Conversion Kit   (Replaces: W10170516)				$ 100.37
NI	W10400497		Orifice, Lp Broil				$ 46.65
NI	WPW10400494		Orifice, Lp Bake   (Replaces: W10400494)			Immediately	$ 102.11
