01 - Cover Sheet


02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - 8576353 Burner Assembly Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10417013		Tech Sheet		Appelez-nous	-
1	W10259284		Wiring Diagram		Appelez-nous	-
1	W10566786		Use And Care Guide		Appelez-nous	-
1	W10329763		Instructions, Installation		Appelez-nous	-
2	W11213336		Nut, ``u``   (Replaces: W10298336)				$ 7.32
3	W10280079		Seal, Console		Appelez-nous	-
4	W10323092		Seal, User Interface		Appelez-nous	-
5	W10253982		Harness, Wiring		Appelez-nous	-
6	WPW10268730		Top (white)   (Replaces: W10268730)				$ 311.27
7	W10572896		Assembly, Console (white)		Appelez-nous	-
8	WPW10251381		Assembly, Control Knob (silver)   (Replaces: W10251381)				$ 52.77
9	W10305134		Bezel, Cycle Trim				$ 23.73
10	3196172		Screw			Immediately	$ 12.12
11	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
12	W10285495		Cable, User Interface		Appelez-nous	-
13	WPW10272635		User Interface Assembly   (Replaces: W10272635)				$ 282.50
14	W10853898		Screw   (Replaces: W10219342)			Immediately	$ 7.36
15	W10274524		Tensioner, Fascia		Appelez-nous	-
16	W10492808		Badge				$ 53.84
17	W10550615		Panel, Rear Console				$ 105.15
18	W10279552		Plug, Upper Rear Panel		Appelez-nous	-
19	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.45
20	W10338363		Cover, Terminal Block		Appelez-nous	-
21	WP90767		Screw   (Replaces: 3390814)			Immediately	$ 7.43
22	W10326923		Spacer, Knob		Appelez-nous	-
23	WPW10317638		Control, Electronic   (Replaces: W10317638)				$ 310.19
24	W10123956		Panel, Dampening		Appelez-nous	-
25	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38

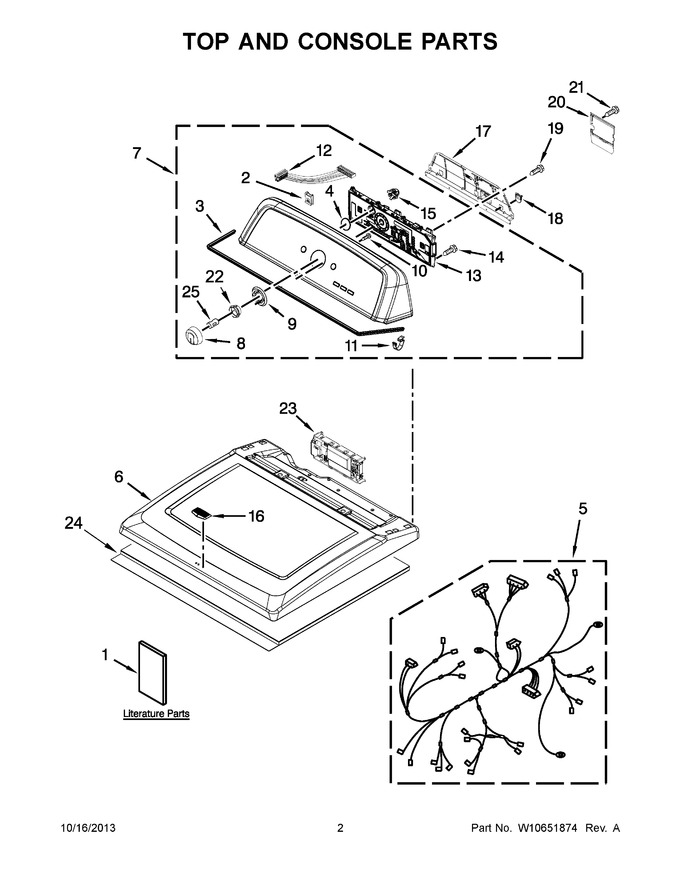

    View Diagram in Separate Window       Print Part List
